Steinberg Systems Laboratory Cooling Circulator with Temperature Control -20 to 20 C 20 l/min 726 W

1 699.00 €
Monthly payment from 44,65 €
5041623

10030665

4062859013620

Shipping 6-10 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Manufacturer code: 10030665

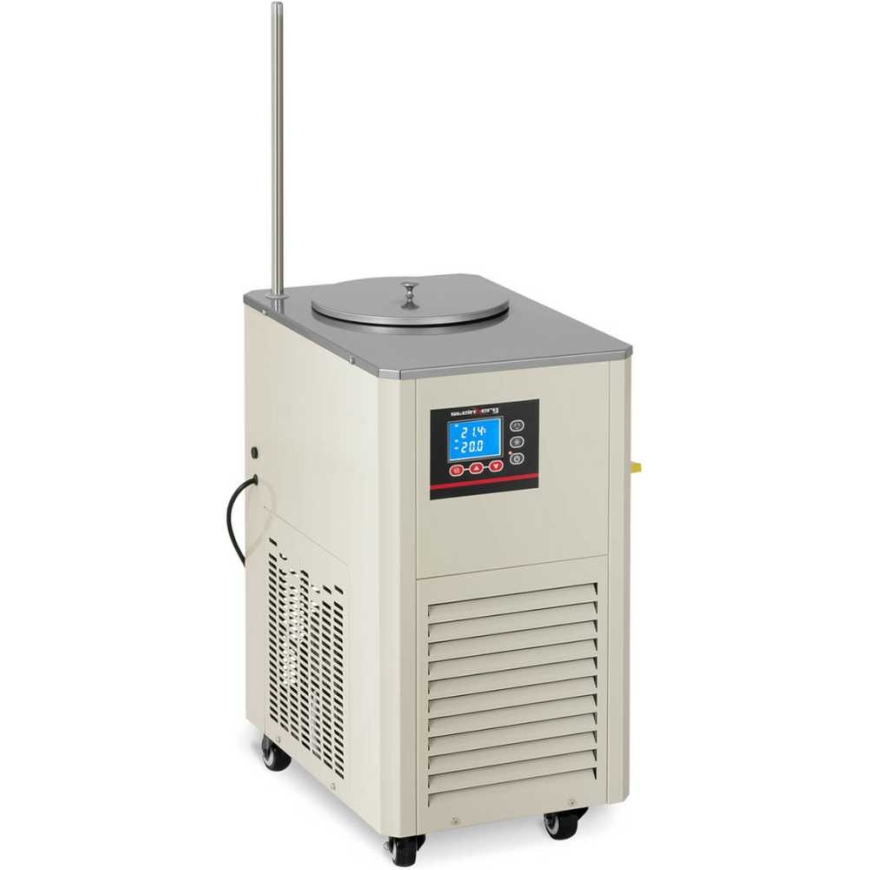

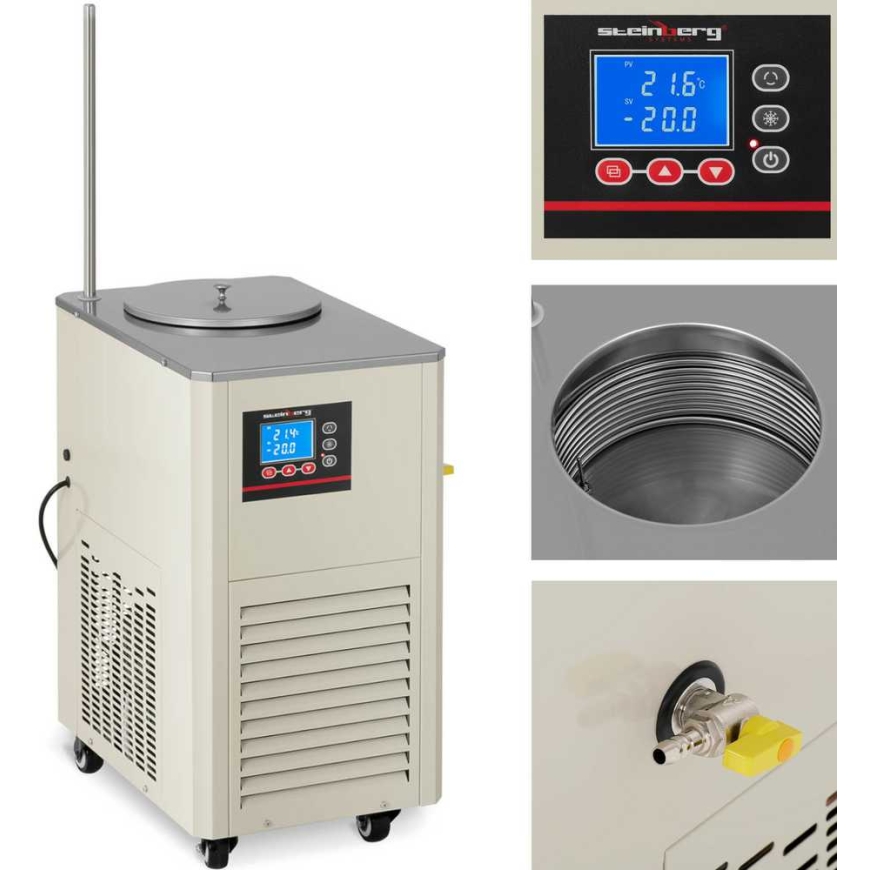

The Steinberg Systems cooling circulating pump is a high-quality laboratory device designed for regulating internal and external temperatures. It can be connected to devices such as electronic microscopes, rotary vacuum distillers, and glass reactors. It is also suitable for cooling lasers and water-jacketed incubators. High control accuracy is achieved through digital PID microprocessor control, which adjusts the heating/cooling level according to the temperature. A PT100 thermocouple is also used, providing +/- 2 °C accuracy. Convenient adjustment from -20 to 20 °C is available via the LCD screen. The stainless steel tank is easy to clean. Additionally, it features functions that protect against rust and contamination of the cooling fluid.
Product Features:

  • - Microprocessor-controlled PID controller,
  • - Constant temperature with +/- 2°C accuracy,

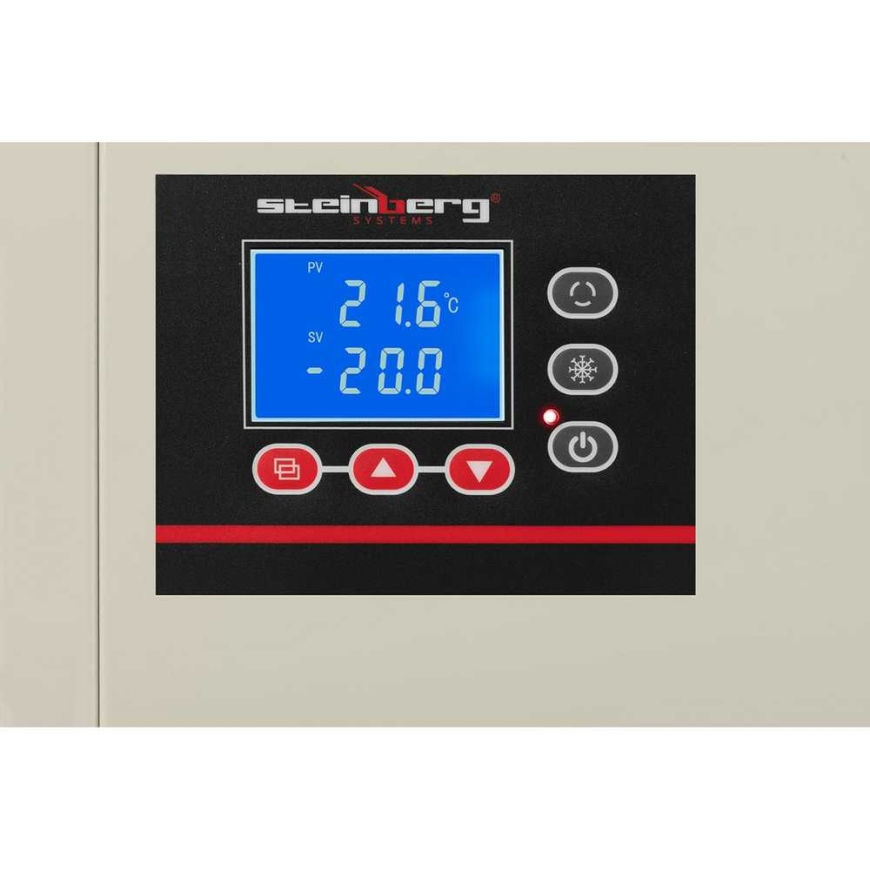

  • - LCD screen,

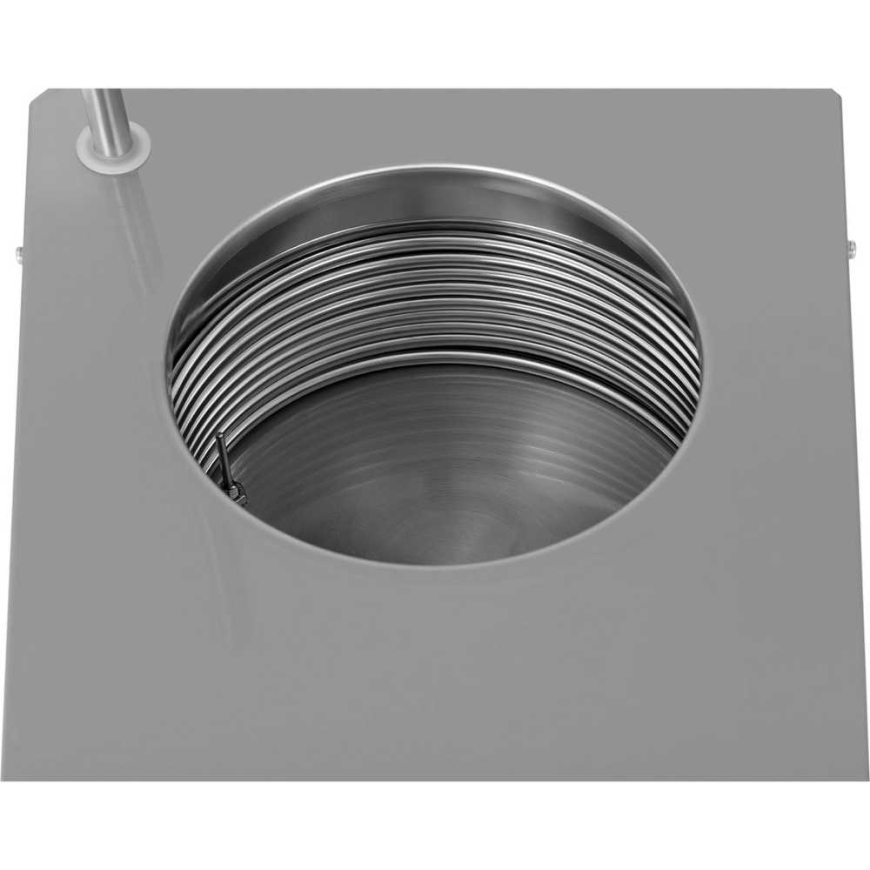

  • - Stainless steel tank,
  • - Lowest temperature down to -20 degrees Celsius,
  • - Compact design,
  • - Overheating protection.

Technical Specifications:
  • - Catalog number - 10030665
  • - Product condition - New
  • - Manufacturer - Steinberg Systems
  • - Model - SBS-LCC-5000
  • - Voltage [V] - 230
  • - Screen - LCD
  • - User manual - Yes
  • - Overheating protection - Yes
  • - Tank dimensions [cm] - ⌀250x130
  • - Temperature accuracy [°C] - +/-2
  • Max current overload protection - Yes
  • - Temperature range [°C] - -20 to 20
  • - Current [A] - 4.2
  • - Material - stainless steel 304 / Q235
  • - Operating temperature range [°C] - ≤25
  • - Capacity [l] - 5
  • - Frequency [Hz] - 50/60
  • - Relative humidity [%] - ≤60
  • - Compressor power [W] - 726
  • - Circulating pump power [W] - 100
  • - Circulating pump flow [l/min] - 20
  • - Cooling power [W] - 10 degrees C - 1230 W, 0 degrees C - 1150 W, -10 degrees C - 1009 W, -20 degrees C - 580 W
  • - Circulating pump lift [m] - 5–7
  • - Lowest temperature [°C] - -20
  • - Delayed start - Yes
  • - Dimensions (L x W x H) [cm] - 48 x 41 x 100
  • - Weight [kg] - 40
  • - Shipping dimensions (L x W x H) [cm] - 57 x 42 x 80
  • - Shipping weight [kg] - 47

Included in the package:
  • - Cooling circulating pump,
  • - Tubes (1.87 + 1.83 m) - 2 pcs.,

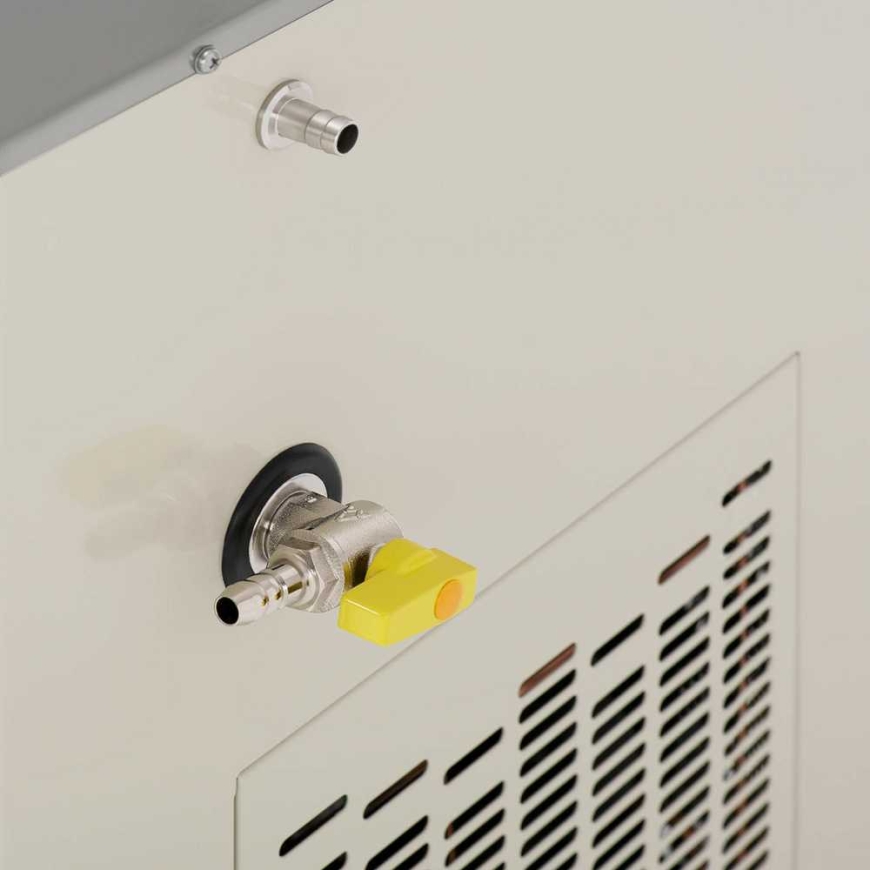

  • - Valve,
  • - User manual.
