Toya Sa Poland Automatic Darkening Welding Helmet / Shield | ASTRO TRUE (YT-73930)
5040401 YT-73930
5906083099489
Shipping 9-15 b.d.
All about the product

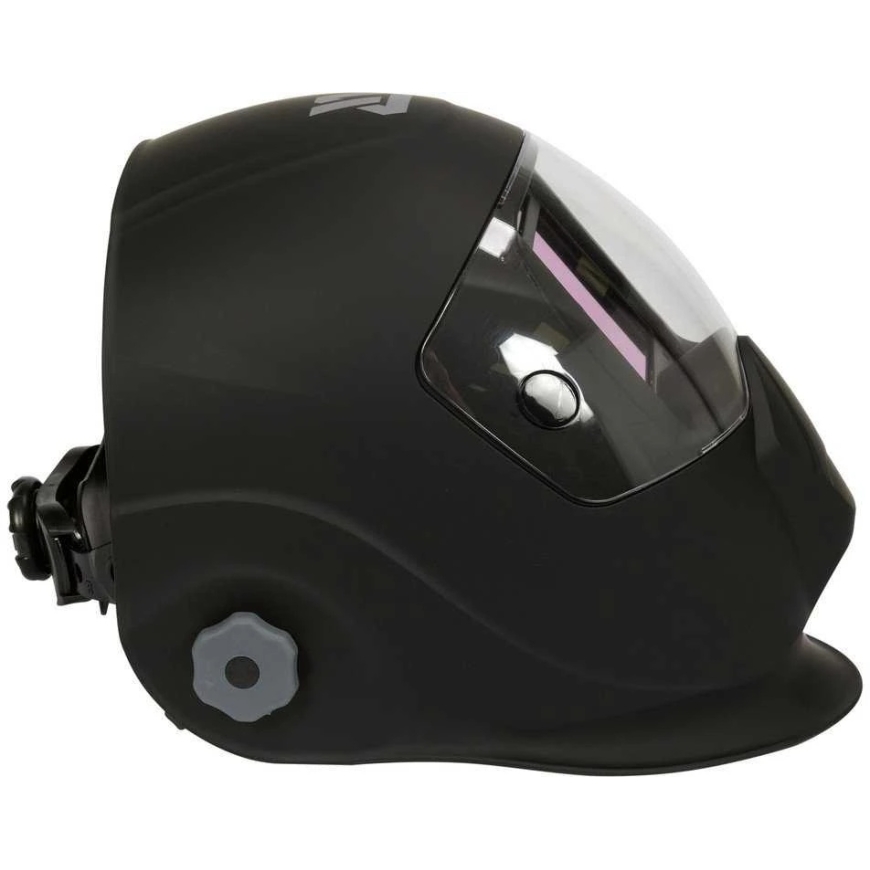

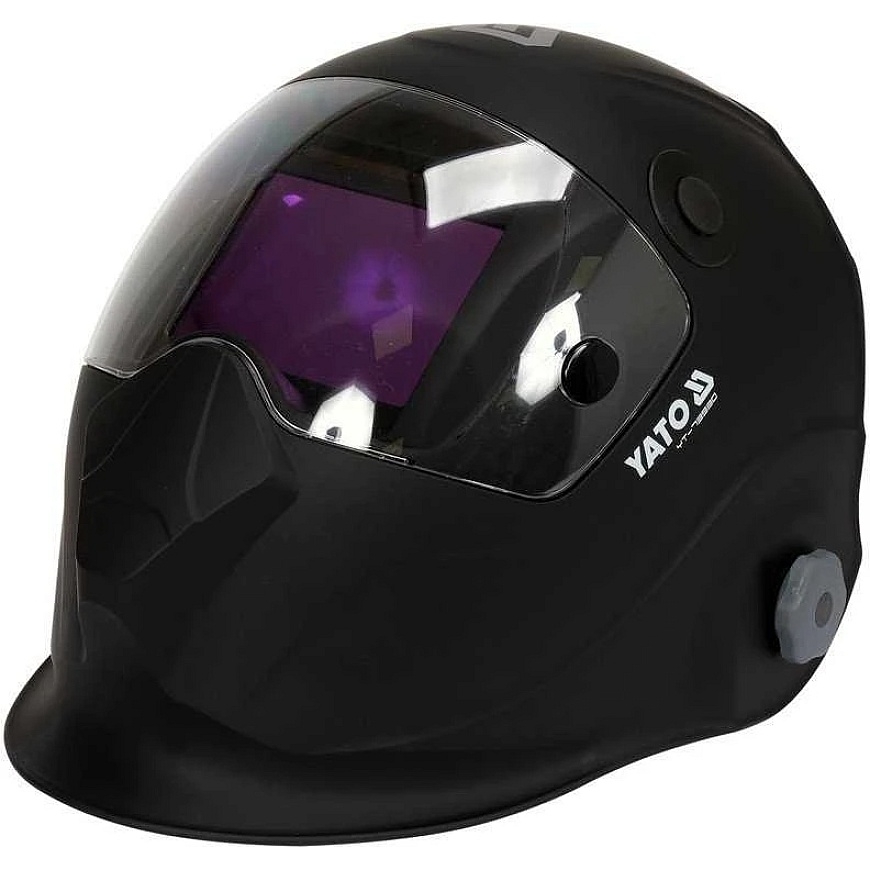

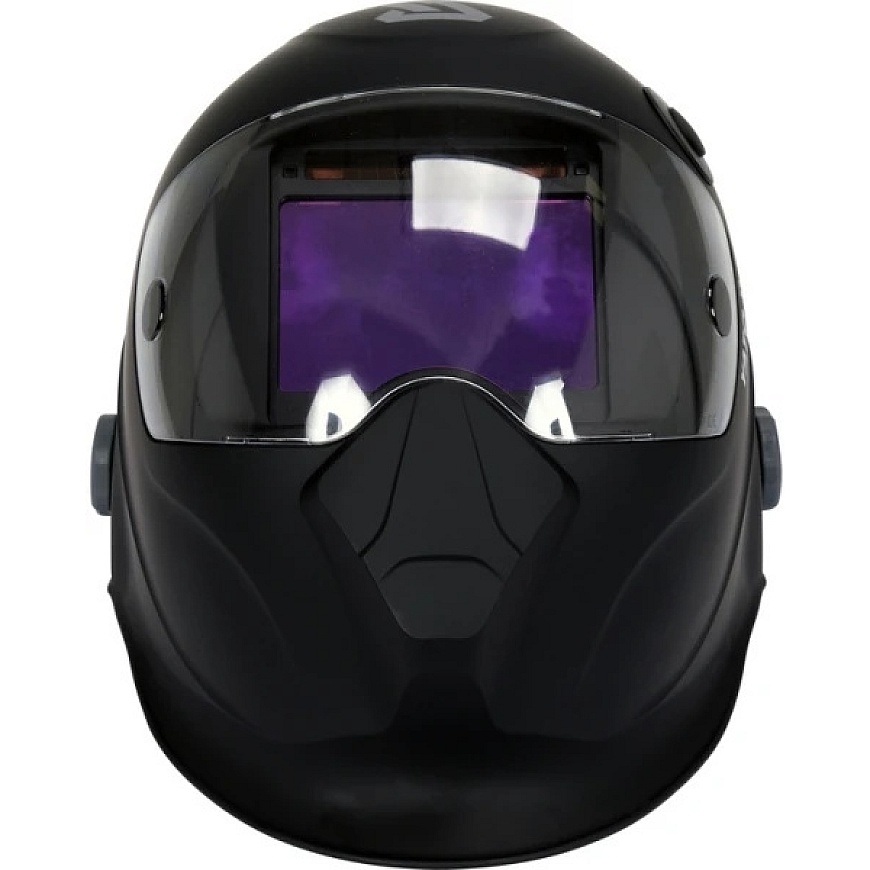

Auto-Dimming Welding Helmet / Shield | ASTRO TRUE (YT-73930)
ASTRO TRUE auto-dimming welding helmet with true-color filter allows for viewing the welding arc in natural colors. The highest optical class 1/1/1/1 filter ensures a clear view, a large 100 x 68 mm field of vision, and reliable UV/IR protection.

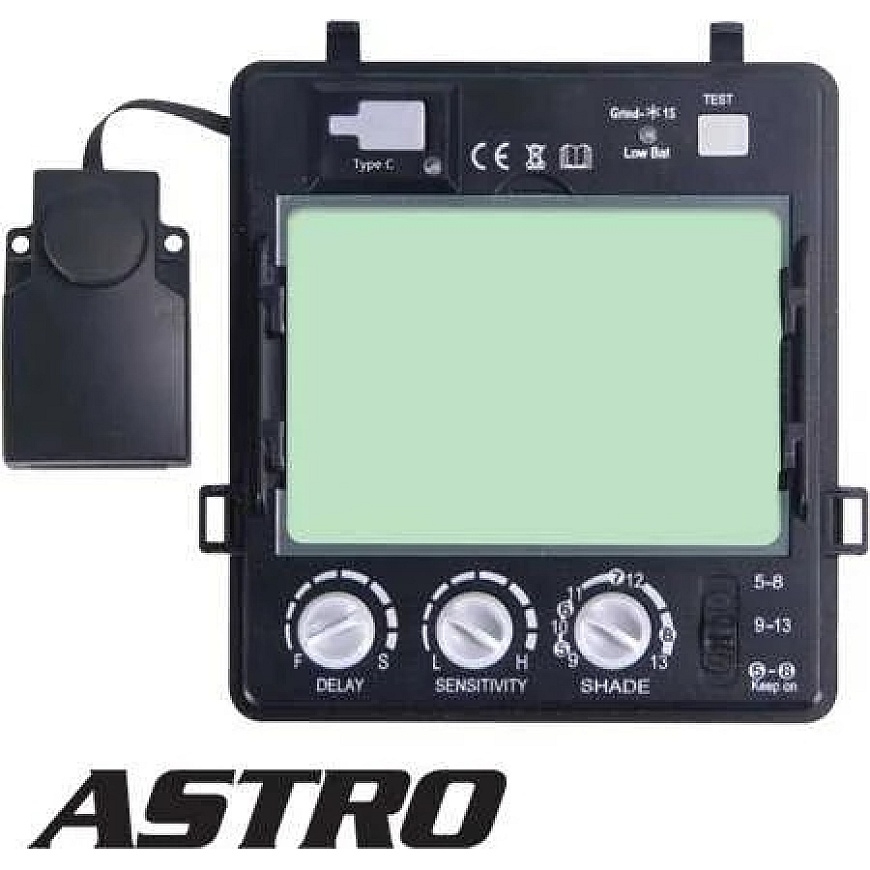

Filter and Protection
- Filter: auto-dimming, true color type.
- Optical class: 1 / 1 / 1 / 1 – highest image quality.
- Viewing field: 100 x 68 mm for comfortable and wide visibility.
- Filter dimensions: 134 x 124 mm.
- Protection: UV/IR protection across the entire working range.
- Protective glass: polycarbonate lens protects the filter from slag and sparks.
- Response time: about 1/25000 s – very fast darkening.
- Lightening time: adjustable 0.2–1 s.
Sensors and Power
- Arc sensors: 4 high sensitivity sensors.
- Minimum TIG current: trigger filter from ~5 A TIG welding.
- Power supply: solar cell + LIR2450 battery.
- USB charging: integrated USB-C port for battery charging.
- Operating temperature: from -5 to +55 ˚C.
Adjustment and Features
- Darkness range: 5–8 / 9–13 DIN (adjustable darkness level).
- Light state: 4 DIN.
- Sensitivity adjustment: adapts to arc intensity and working conditions.
- Darkening hold time: adjustable to keep the helmet dark longer after the end of the weld seam.
- Grinding mode: external button allows to disable the darkening function and use as a protective shield for grinding or cutting.
- TEST function: the filter has a TEST button to verify the automatic darkening operation before work.

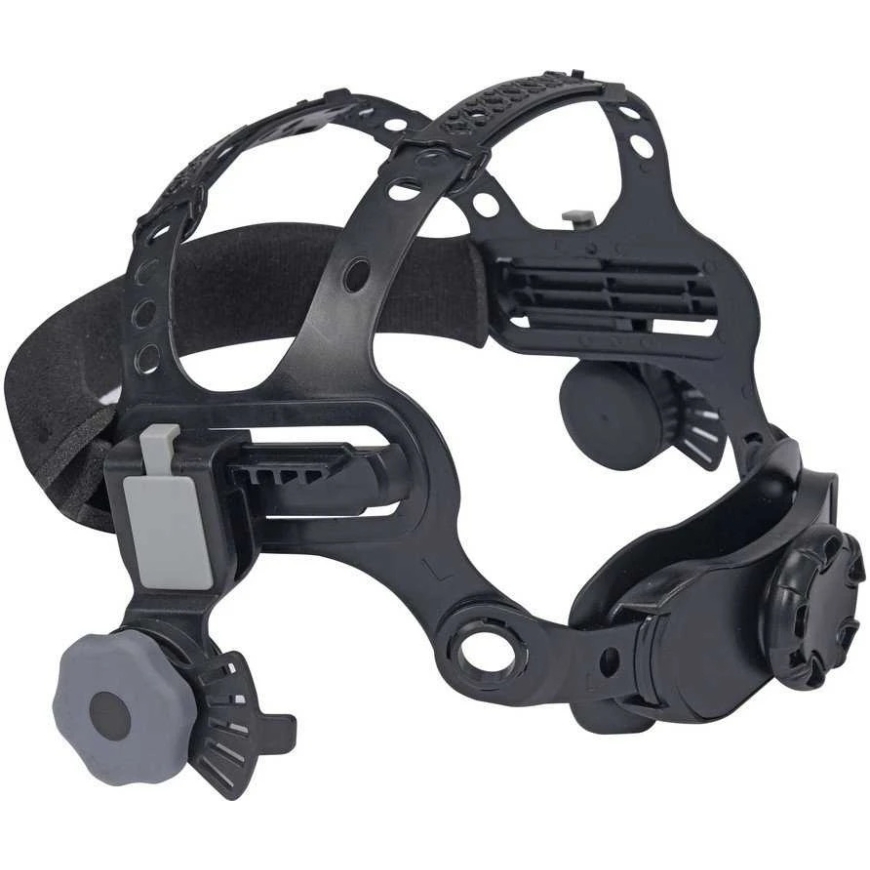

Skull and Comfort
- Four-point head straps: distributing load and improving comfort.
- Adjustment: size, angle, and distance adjustment system customizes the helmet to the user's head and working position.
- Convenient adjustment: dials and levers allow fast adjustment of strap tension and tilt.
Use
The helmet is suitable for MMA, MIG/MAG, TIG, and other welding technologies, and can also be used for grinding or metal cutting tasks with the darkening function disabled. It is recommended to press the TEST button and check the filter's response before each use to protect the welder's eyes and health.
Manufacturer: YATO | Code: YT-73930.
