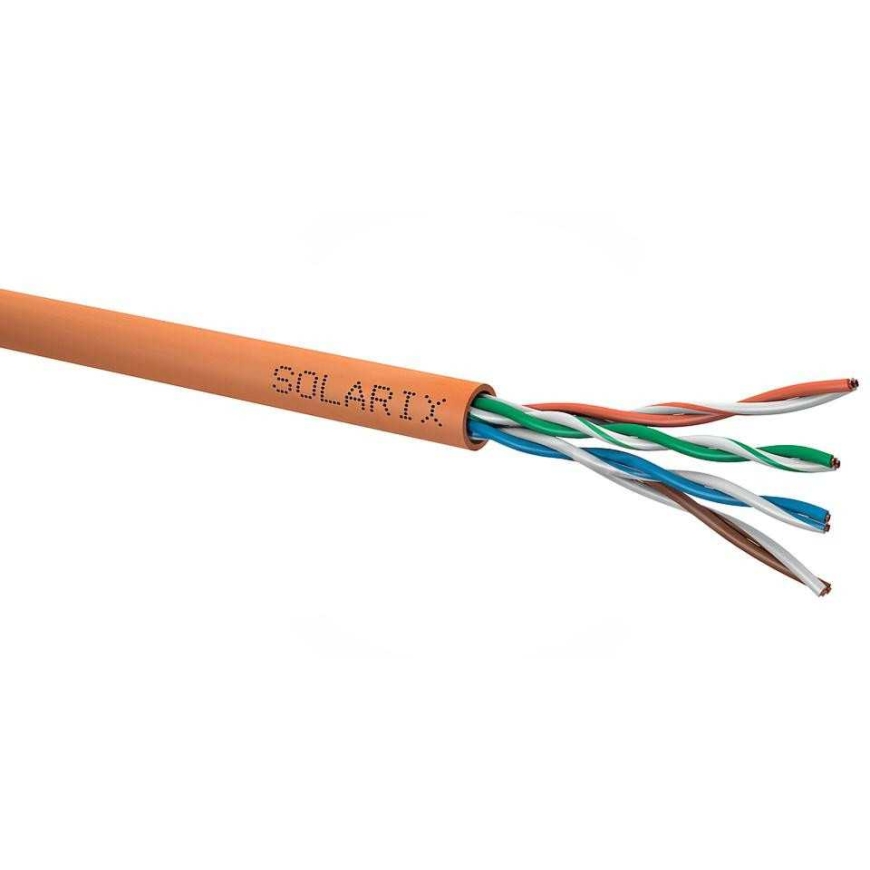

SOLARIX twisted pair cable CAT.5E UTP LSOHFR B2ca SXKD-5E-UTP-LSOHFR-B2ca 305m
5040365 SXKD-5E-UTP-LSOHFR-B2ca
8595684704952
Shipping 8-12 b.d.
All about the product
Installation Cable Solarix CAT5E UTP LSOHFR B2ca-s1,d0,a1 305 m/box
High-quality unshielded CAT5E cable with LSOHFR casing and fire resistance class B2ca-s1,d0,a1, 305 m box.
The Solarix installation cable, marked SXKD-5E-UTP-LSOHFR-B2ca, is a reliable unshielded category 5E cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*, to operate. The cable construction is U/UTP. The casing type is LSOHFR, fire resistance class B2ca-s1,d0,a1. The cable conductors are made of high-quality copper wire, with copper purity of 99.97%. The cable meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D without issues. According to CPR (EU Regulation No. 305/2011), the cable has been tested under the AVCP 1+ performance assessment system and also complies with the Ministry of Interior of the Czech Republic Orders No. 23/2008 and No. 268/2011 regarding technical conditions for fire safety of buildings, making it suitable for usage cases that correspond to this fire resistance class cable, defined in Appendix 2 of these orders. Like other Solarix cables, the SXKD-5E-UTP-LSOHFR-B2ca cable is marked in meters every 1 m from 0 to 305 m. The cable is supplied in a highly durable three-layer polished cardboard box (always different colors according to the type of cable), on which all the necessary product information is indicated, including barcodes, production batch, description, and key technical parameters.
| Technical Information | |
| Category: | Cat5E |
| Supported Protocols: | 2.5/5GBASE-T and lower |
| Shielding: | NO |
| Frequency Bandwidth: | 100 MHz |
| Conductor Type and Size: | copper wire 0.50 mm ± 0.005 mm |
| Insulation and Conductor with Insulation Diameter: | HDPE 0.88 mm |
| Fire Resistance Class, Casing Type: | B2ca-s1,d0,a1; LSOHFR |
| Casing Color: | purple RAL 2003 |
| Cable Diameter: | 5.4 mm ± 0.5 mm |
| Weight: | 39 kg/km |
| NVP: | 68 % |
| Signal Propagation Delay: | 535 ns/100 m |
| Delay Skew: | 45 ns/100 m |
| Packaging: | 305 m, three-layer cardboard box |
