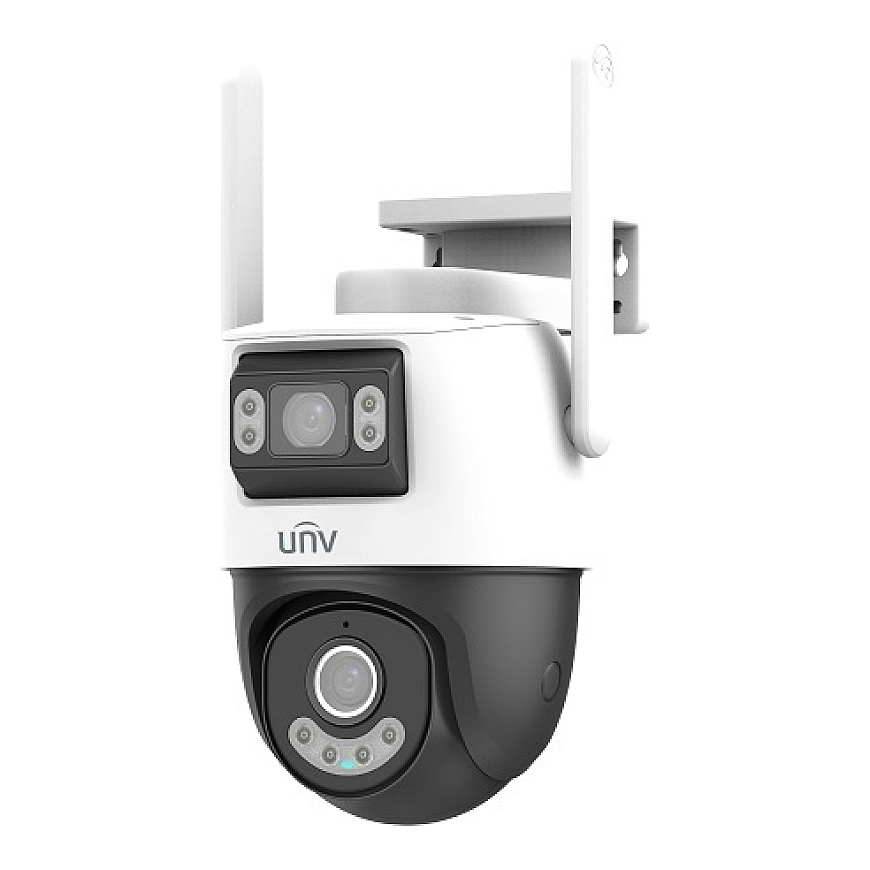

Uniview Smart Outdoor Camera, 3MP+3MP, 4G

All about the product

3MP + 3MP dual-lens PT outdoor camera IP66 combines a panoramic fixed camera and a controlled PT camera in one device. Both video channels operate through one IP address, allowing you to monitor the overall area view and track a selected object in detail simultaneously. The camera features two-way audio communication, IR and warm white LED illumination, and reliable night vision up to 30 meters. It is convenient to install the camera in places without Wi-Fi connection, as the data transmission can utilize a 4G LTE mobile network. Data can be recorded on a micro SD card up to 512GB.

Features:
Dual 3MP + 3MP video system: the panoramic camera is designed for continuous monitoring of the overall area, while the PT camera allows rotating and tilting the view and more closely monitoring a selected zone.
Both video channels operate through one IP address, so no need for two separate cameras or two network addresses.
The PT camera can rotate horizontally up to 350° and tilt vertically up to 90°, allowing monitoring of a large area and reducing blind spots.
Utilizes 4G LTE mobile connectivity. Easy installation in locations without wired internet or Wi-Fi connection.
The camera also includes an RJ45 10/100 Mbps Ethernet port and can be connected to a wired network.
Video resolution: 3MP (2304x1296) up to 15fps for each video channel.
For night monitoring, a dual illumination method is used: IR and warm white light, effective up to 30 m.
Supports audio and light alerts, making warning and alarm signals more noticeable.
The camera supports advanced human and vehicle detection, high audio level detection, and camera image coverage/sabotage detection. These features help more accurately capture important events and reduce unnecessary alerts.
Supports automatic tracking.
Built-in speaker and microphone allow remote communication with visitors.
Suitable for estates, farms, construction sites, warehouse areas, parking lots, garages, yards, and other remote locations.
Data storage: supports micro SD (TF) card up to 512GB capacity (card not included).
Note: SD card and SIM card are purchased separately.


Technical specifications:
CMOS sensor: 1/3" CMOS.
Scanning system: progressive.
Panoramic camera lens: 2.8mm, F1.6.
PT camera lens: 4.0mm, F1.6.
Aperture: fixed.
Panoramic camera viewing angle: 85.9°(H).
PT camera viewing angle: 74.3°(H).
Digital zoom: x4.
Max resolution: 2304x1296 pixels.
LED (warm light) illumination: up to 30m.
IR illumination: up to 30m.
IR wavelength: 850 nm.
Illumination activation/deactivation: automatic/manual.
Day/night: ICR, automatic IR-cut filter.
Min. illumination: 0.003 lux (Colour, F1.6, AGC On); 0 lux (IR on).
Electronic shutter: automatic/manual, 1 ~ 1/100000s.
Image rotation (Flip): normal/vertical/horizontal/180°.
Panoramic camera horizontal coverage: -150° ~ 150°.
Panoramic camera vertical coverage: -5° ~ 30°.
PT camera horizontal coverage (Pan): 0° ~ 350°.
PT camera vertical coverage (Tilt): 0° ~ 90°.
PT camera pan/tilt speed: (Pan) 1°/s ~ 40°/s; (Tilt) 1°/s ~ 30°/s.
Preset (label, camera settings): 20.
Video compression: H.265, H.264.
Compression speed: main stream: 3MP(2304x1296)@15fps; 2MP (1920x1080)@15fps; 720p (1280x720)@15fps; sub stream: (640x360)@15fps; 2CIF(704x288)@15fps; CIF (352x288)@15fps.
Stream rate: 128 Kbps ~ 1536 Kbps.
WDR (wide dynamic range): DWDR.
S/N (signal-to-noise) ratio: >52dB.
ROI (region of interest): supported.
Privacy masking: up to 4 zones.
Noise reduction DNR: 2D/3D DNR.
White balance: automatic/outdoor/manual adjustment/sodium lamp/locked/automatic 2.
BLC (backlight compensation): supported.
Video processing technology: Digital Defog.
Smart IR: supported.
Features: advanced motion detection based on human and vehicle recognition, loud audio level detection, camera covering/sabotage detection.
Security: IP address filtering, RTSP authentication, HTTP authentication.
Automatic tracking: supported.
Audio compression: G.711A, G.711U.
Audio data stream: 64 Kbps.
Built-in microphone and speaker.
Two-way audio: supported.
Audio noise reduction: supported.
Micro SD card slot: supports card up to 512GB.
Network storage: ANR.
SIM card: Nano-SIM.
4G frequency bands: LTE-FDD B1 / B3 / B5 / B7 / B8 / B20 / B28.
4G standard: LTE-FDD.
Integration: API.
Software: APP, EZStation.
Network protocols: IPv4, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, HTTP.
Supported browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Wi-Fi: not supported.
Network port: 1 x RJ45 10M/100M Base-TX Ethernet.
Power interface: Ø5.5 mm coaxial power connector.
Power supply voltage: DC 12V.
Consumption: 10.5W.
Dimensions: Ø117.0mm x 201.9mm (Ø4.6" x 7.9").
Reset button: present.
LED status indicator: 1, red/blue.
Operating temperature: -30°C ~ +60°C.
Operating humidity: ?95% RH (non-condensing).
Weight: 0.61kg (1.34lb).
Safety class: IP66 (IEC 60529).
Surge protection: 4 KV.
Certifications: EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR Part 15 B). RF: FCC ID (FCC CFR 47 Part 15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 62311). Safety: CE LVD (EN IEC 62368-1). Environmental: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU).


Warranty: 24 months.

Download specification (pdf)
