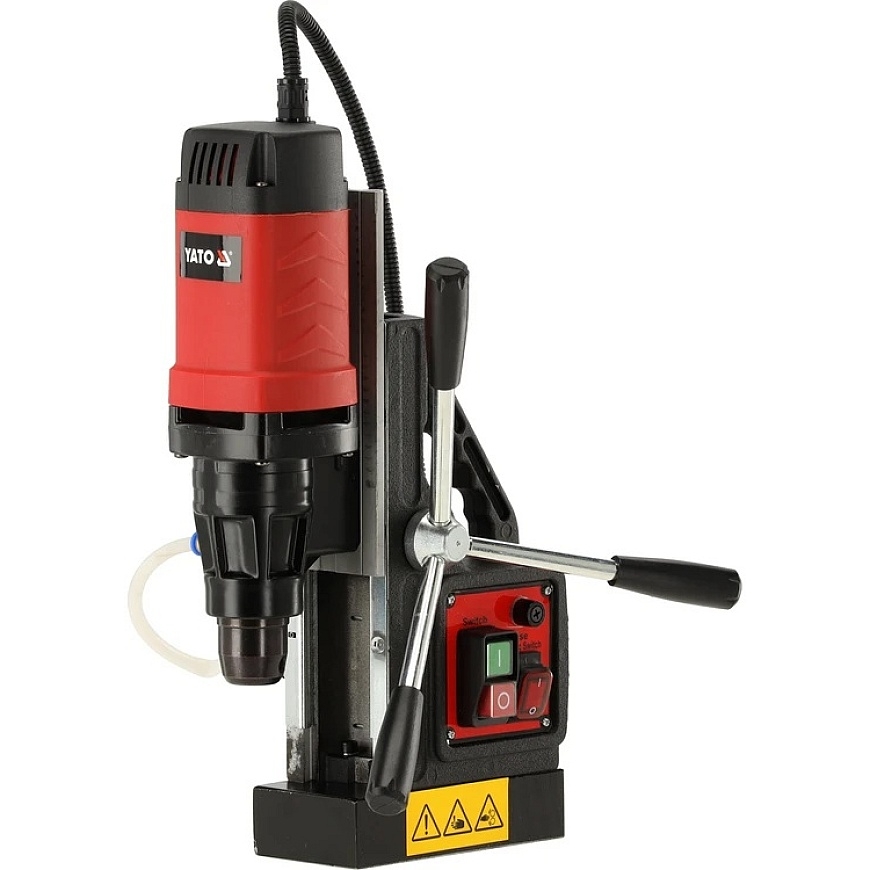

Yato Toya Sa Poland Magnetic Drilling Machine | 1050W | Ø30 mm | electromagnetic base | 3/4" (YT-820500)
5039631 YT-820500
5906083126406
Shipping 9-15 b.d.
All about the product
Magnetic Drilling Machine | 1050W | Ø30 mm | Electromagnetic Base | 3/4" (YT-820500)
The YATO YT-820500 Magnetic Drilling Machine is designed for precise hole drilling in steel components, profiles, thick sheets, and supporting structures. More similar products can be found at www.atsuktuvas.lt .
The device features a 1050 W motor, an electromagnetic base, and a Weldon 3/4" 19 mm tool holder. The magnetic base allows for stable attachment of the machine to a ferromagnetic surface, enabling operation in horizontal, vertical, and inverted positions.
Purpose and Use
These magnetic drilling machines are tailored for installation, construction, plumbing, and workshop tasks where mobile equipment, stable clamping, and precise drilling are required. The compact design and manual feed facilitate comfortable control over the drilling process when working with steel structures.
Key Technical Specifications
- Motor Power: 1050 W.
- Speed: 650 rpm.
- Tool Holder: Weldon 3/4" 19 mm.
- Maximum Diameter for Twist Drills: 13 mm.
- Maximum Diameter for Core Drills: 30 mm.
- Maximum Drilling Depth: 50 mm.
- Stroke Length: 140 mm.
- Electromagnetic Holding Force: 11500 N.
- Duty Cycle: 30 s operation and 90 s break.
- Weight: 10.5 kg.
Construction and Functionality
- Electromagnetic base for stable attachment to ferromagnetic surfaces.
- Ability to operate in horizontal, vertical, and inverted positions.
- Vertical guide with manual feed.
- Guiding cart helps limit deviations during drilling.
- Weldon holder is suitable for core drills and industrial accessories.
- Integrated coolant tank helps reduce overheating during machining.
- Ergonomic spindle feed lever allows control over the drilling process.
- Separate electromagnetic and motor switch increases work control.
Important Usage Conditions
The device must be attached to a stable ferromagnetic surface. The recommended minimum surface thickness is 15 mm. To achieve the full holding force of the electromagnetic base, the working surface must be free from rust, paint, oil, and metal shavings.
The operating manual in PDF format can be found here .
