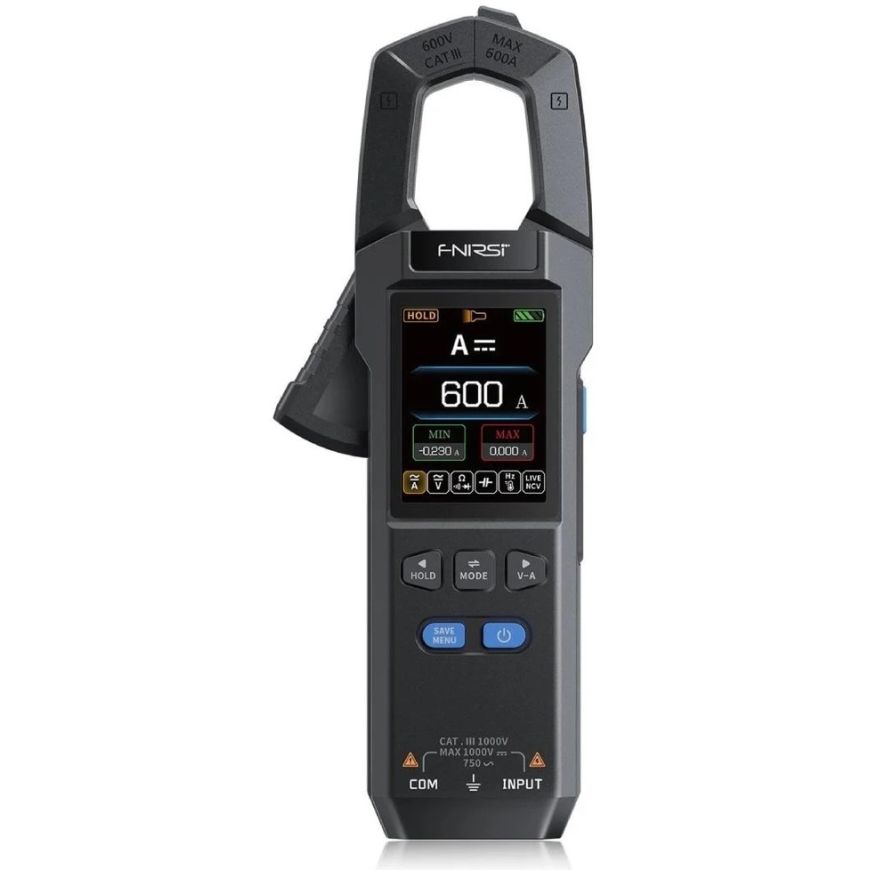

FNIRSI DMC-100 current meter
5039458 AN-28152
5905973204323
Shipping 8-13 b.d.
All about the product
FNIRSI DMC-100 is a modern true RMS current meter capable of measuring up to 600 A of alternating/direct current and up to 750V of voltage. The meter features a 2-inch color TFT display, waveform recording, power measurement, NCV, and phase conductor identification. Thanks to the 1500 mAh battery, USB Type-C interface, and a wide range of functions, it is suitable for electrical installation work, workshops, and home installation diagnostics.
Features:
- True RMS 10,000 counts measurement – high accuracy in measuring AC/DC voltage and current
- Wide measurement range – supports up to 750 V voltage and up to 600 A current
- 2-inch color TFT display – clear presentation of results and waveforms
- Three operating modes – standard measurement, waveform analysis, and power measurement
- AC/DC measurement – supports both direct and alternating voltage and current
- NCV and LIVE function – non-contact voltage detection and phase conductor identification
- Temperature measurement – range from -55 °C to 1300°C
- Data logging – saves up to 30 measurement sets
- 1500 mAh battery – long operating time and charging via USB Type-C
- Built-in LED flashlight – convenient for working in poorly lit areas
- Auto power off – saves energy when the device is not in use
- Firmware update – extends device functions

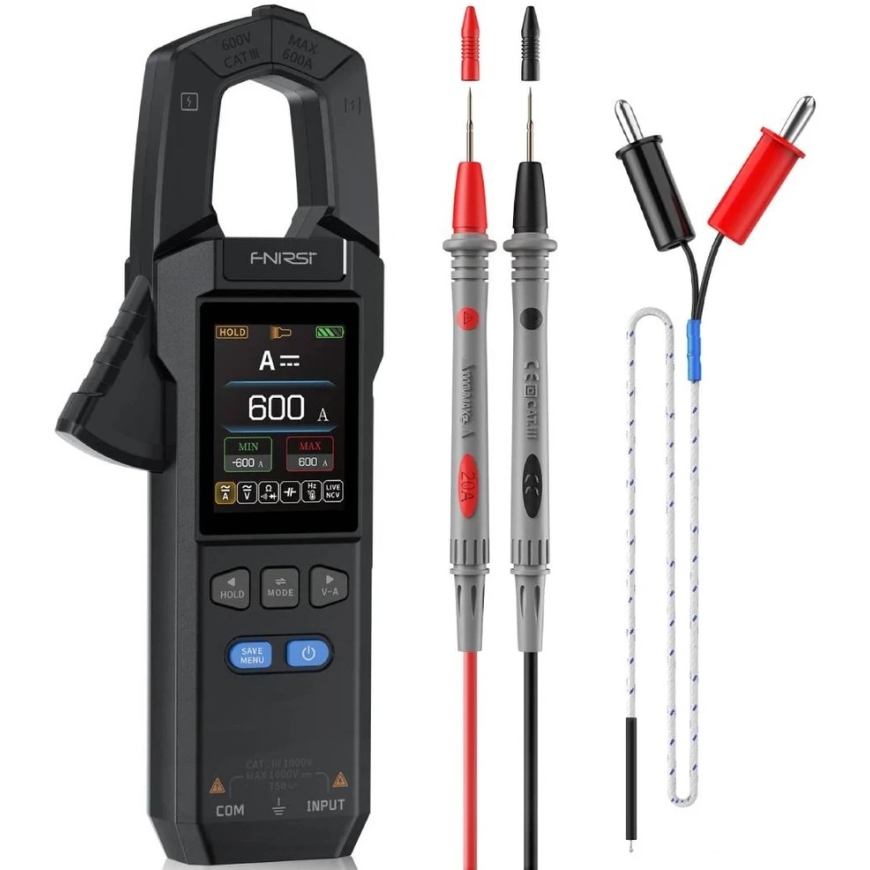

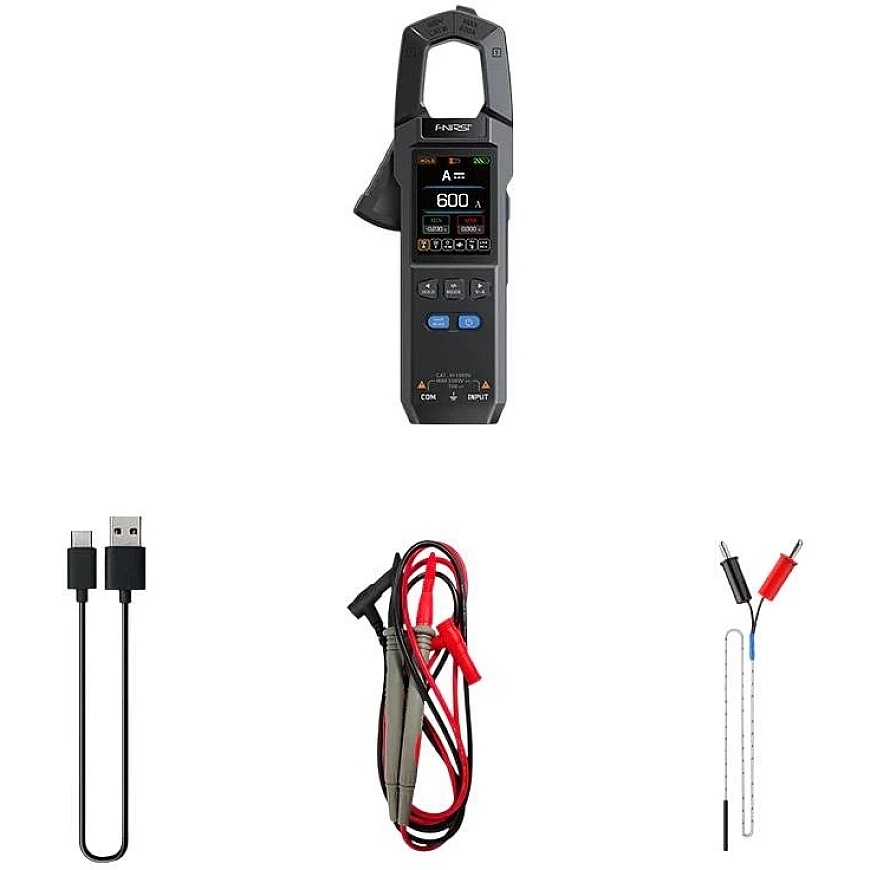

Included in the package:
- FNIRSI DMC-100 digital multimeter
- USB Type-C cable
- Test leads
- Temperature probe
Specifications:
- Counts: 10000
- Display: 2-inch color TFT
- Display resolution: 240 x 320 pixels
- Power source: 3.7V lithium battery
- Battery capacity: 1500 mAh
- Charging: USB Type-C 5V / 1A
- Maximum jaw opening: 25mm
- Operating modes: standard measurement / waveform analysis / power measurement
- NCV function: yes
- Diode testing: yes
- Continuity testing: yes
- Real-time phase identification: yes
- Brightness adjustment: 10 levels
- Auto power off: OFF / 5 min. / 15 min. / 30 min.
- Supported languages: Chinese / English
- Dimensions: 193x74x32mm
- Weight: 194g
