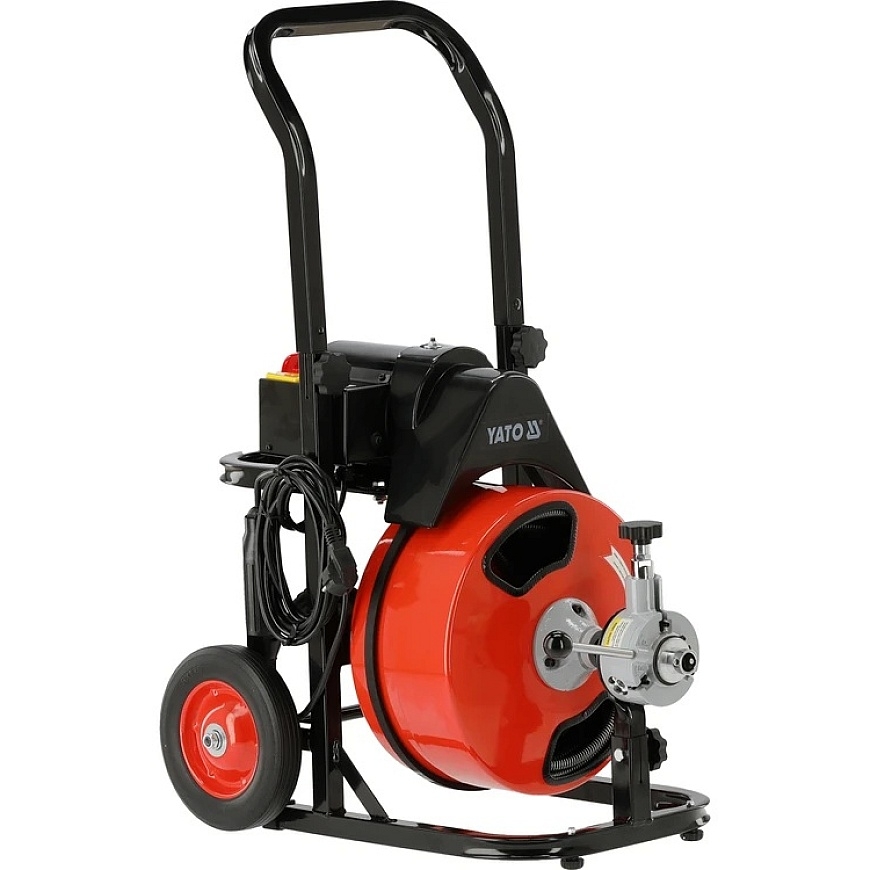

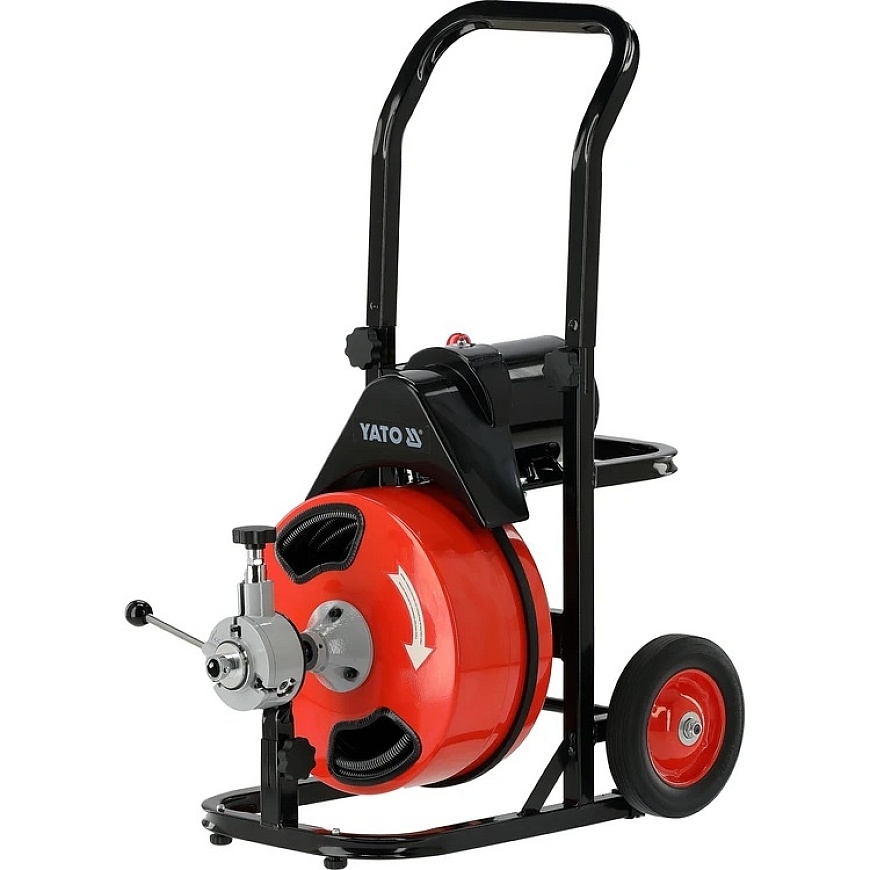

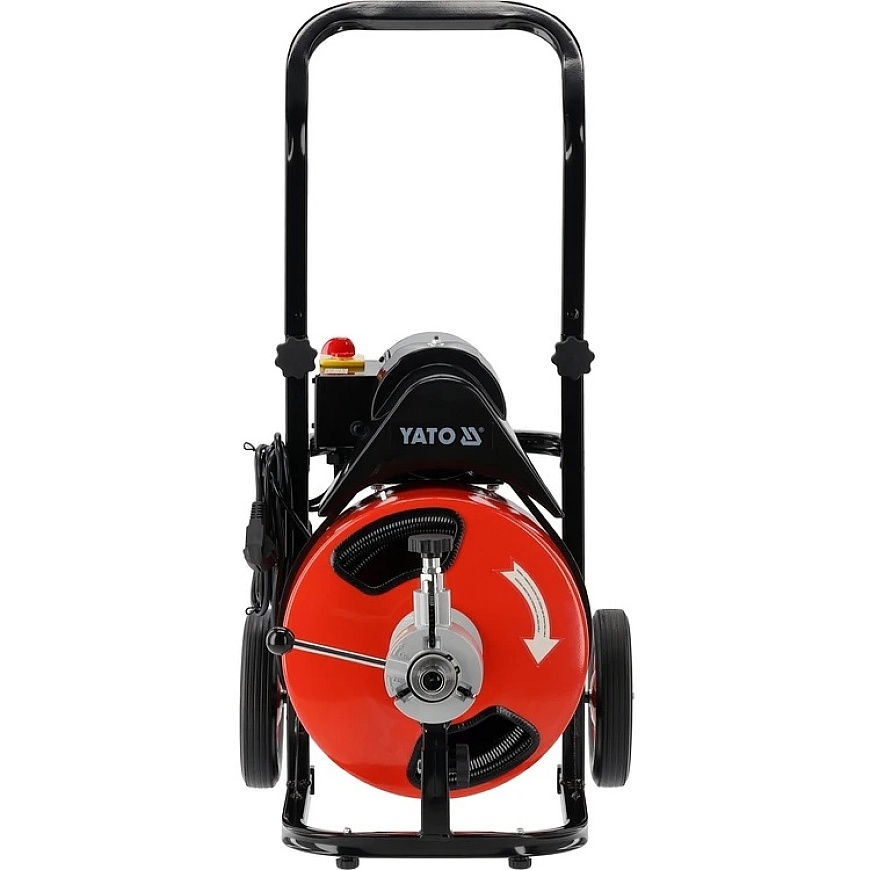

Drain Pipe Cleaning Device | 15.4 m | 300 W (YT-25055)

The drain pipe cleaning device is designed for the mechanical cleaning of internal sewage pipes in sanitary systems. The device has a power of 300 W, a cleaning spiral that is 15.4 m long and 7 mm in diameter, with a recommended pipe diameter of 50–100 mm.

Automatic feeding and retraction of the spiral helps control its movement within the pipe, while the integrated drum holds the spiral during operation and storage. More pipe cleaning, plumbing, and workshop equipment can be found

Features

• Designed for the mechanical cleaning of internal sewage pipes in sanitary systems.


• Suitable for pipes with diameters of 50–100 mm.


• The 15.4 m long cleaning spiral allows for deeper cleaning sections of pipes.


• The 7 mm diameter spiral is adapted for standard sewage pipes.


• Automatic spiral feeding and retraction.


• Includes a rotation direction switch.


• Integrated drum for storing the spiral.


• The cart construction with wheels aids in moving the device at the work site.

Specifications

• Product code: YT-25055.


• Manufacturer's code: 5906083129070.


• Series: GRF.


• Power: 300 W.


• Speed: 1700 RPM.


• Cleaning spiral length: 15.4 m.


• Spiral diameter: 7 mm.


• Pipe diameter: 50–100 mm.


• Voltage: 220–240 V a.c.


• Frequency: 50 Hz.


• Power cable length: 3 m.


• Acooustic power: 71.8 ± 3.0 dB(A).


• Sound pressure: 58.8 ± 3.0 dB(A).


• Weight: 38.56 kg.

Usage Note

• Use only for the mechanical cleaning of internal sewage pipes according to the device's instructions.


• Before operation, check that the pipe diameter falls within the 50–100 mm range.


• During operation, control the feeding and retraction of the spiral to prevent it from getting stuck in the installation.


• Use appropriate personal protective equipment.
