All about the product

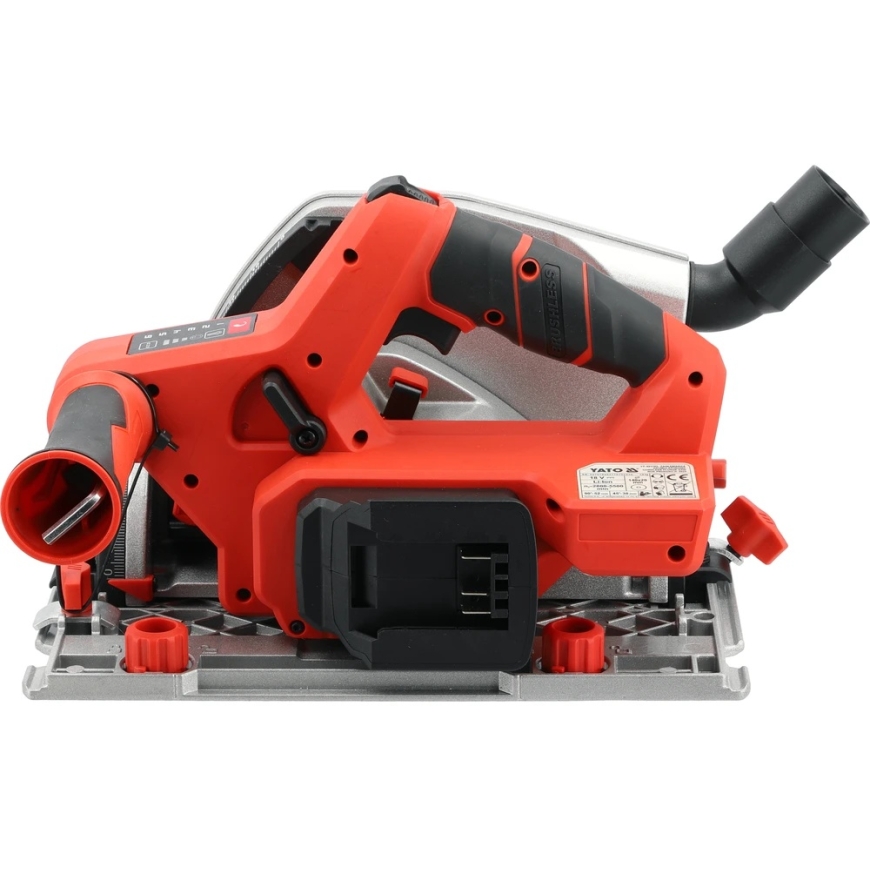

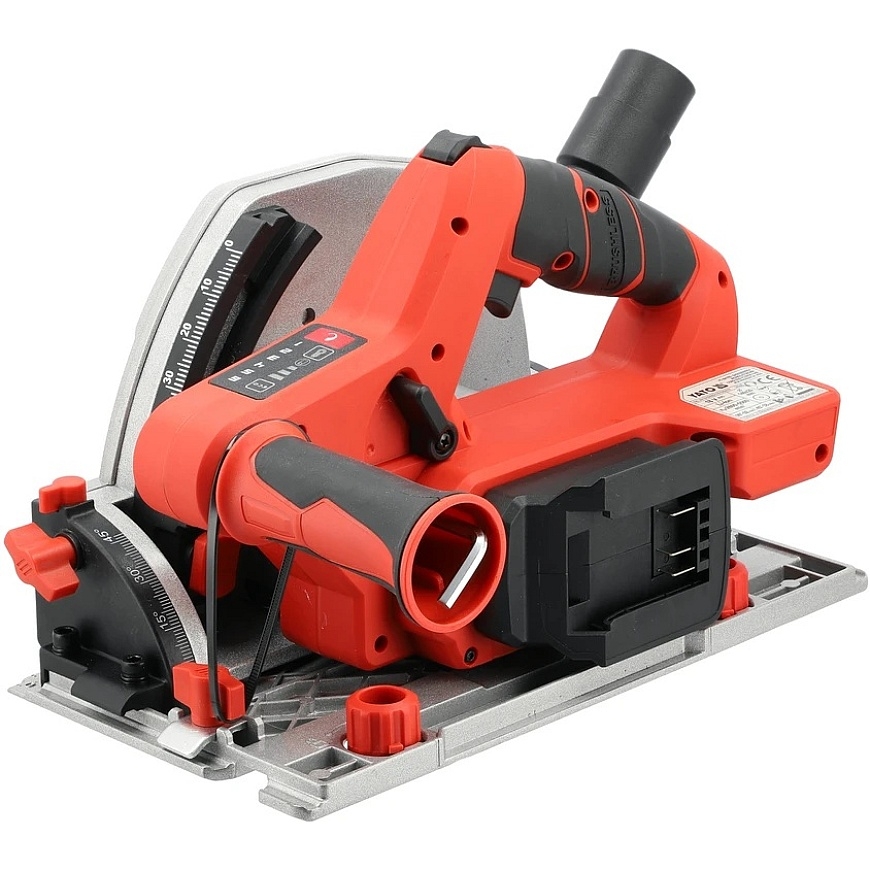

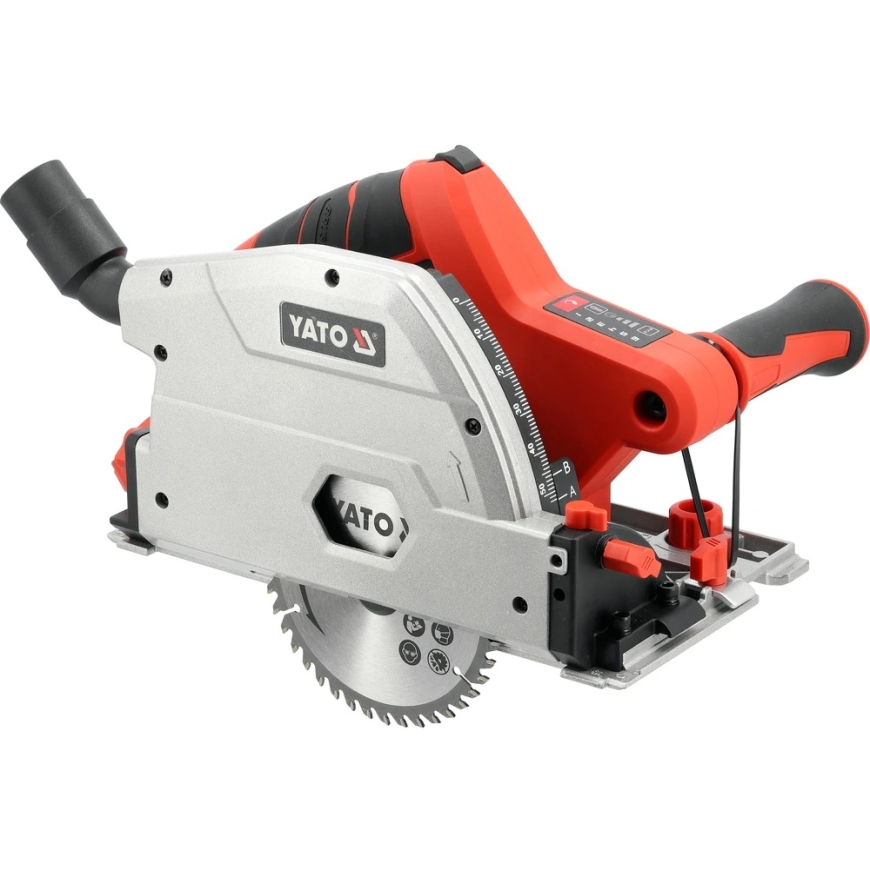

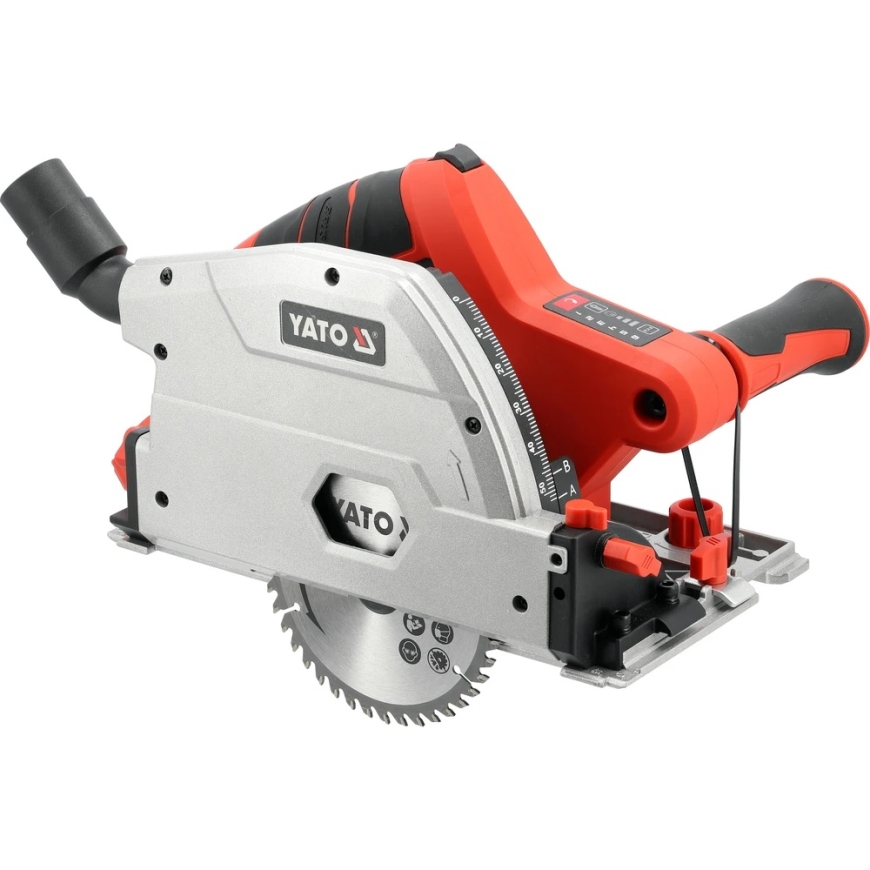

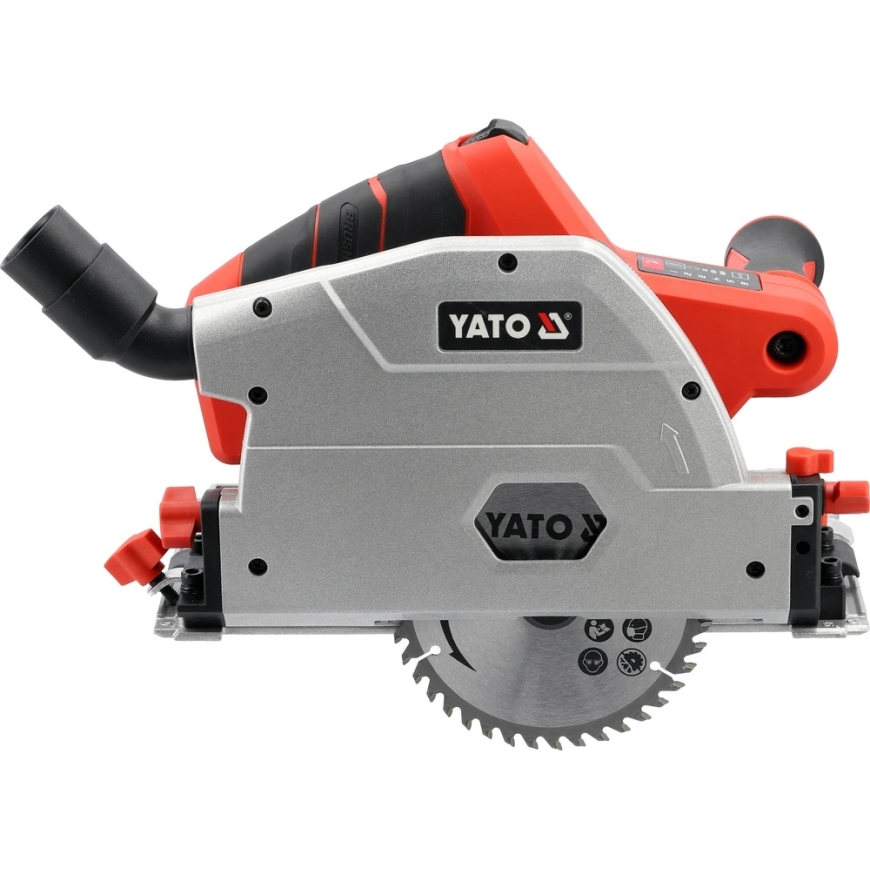

Disc Saw for Deep Cutting | 140 mm | 52 (90˚) 38 (45˚) mm | 18V | without battery (YT-821702)

The cordless deep-cutting disc saw is designed for cutting wood and wood-based materials, including plywood, particle boards, MDF, and laminates. The tool operates with 18 V Li-Ion YATO batteries, uses a 140 mm cutting disc with a 20 mm mounting hole, and has a maximum cutting depth of 52 mm at 90° and 38 mm at 45°.

Features

• Product type: cordless deep-cutting disc saw


• Power: 18 V d.c.


• Battery type: Li-Ion


• Battery not included


• Charger not included


• Motor: brushless


• Revolutions: 2800–5500 min⁻¹


• Cutting disc outer diameter: 140 mm


• Cutting disc inner diameter: 20 mm


• Maximum cutting disc thickness: 2 mm


• Maximum cutting depth: 52 mm at 90° and 38 mm at 45°


• Cutting angle adjustment: 0–45°


• Deep cutting function allows starting the cut not just from the edge of the material


• Speed adjustment allows tailoring revolutions according to the material being processed


• ECO mode designed for working with lower energy consumption


• Switch lock


• Spindle lock for disc change


• Dust extraction connection for connecting to external extraction systems


• Electrical insulation class: III


• Acoustic pressure: 79.8 ± 3.0 dB(A)


• Acoustic power: 87.8 ± 3.0 dB(A)


• Vibration: 3.1 ± 1.5 m/s²


• Weight: 3.6 kg


• Brand: Yato


• Series: GRF


• Symbol: YT-821702

Package Contents

• 1 cordless deep-cutting disc saw


• 1 cutting disc, 140 mm


• 1 parallel guide


• 1 guide ruler


• 2 clamps


• Battery not included


• Charger not included

Compatibility

• Compatible with YATO 18 V batteries YT-828461–YT-828465


• YT-821701 version supplied with 4 Ah battery and charger


• YT-821702 version supplied without battery and charger

Usage

• Designed for carpentry, assembly, and finishing work


• Suitable for cutting furniture boards, wooden structural components, and other wood-based materials


• Parallel guide helps to cut along the edge of the material


• Guide ruler used for longer straight cuts


• Additional handle helps control the tool during operation
