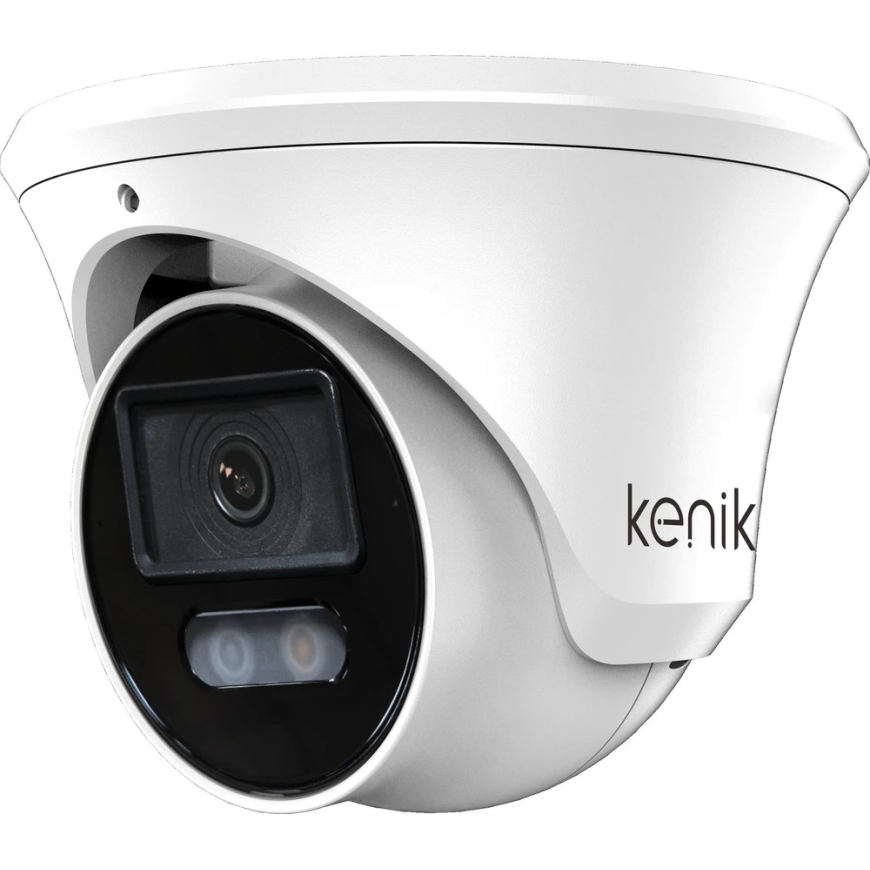

KENIK KG-6P30DAS-IL IP CAMERA (2.8mm)
178.99 €
Monthly payment from 5,51 €
5037027 KG-6P30DAS-IL
5903716301674
Shipping 8-10 b.d.
You are interested in this product?
All about the product
IP CAMERA KENIK KG-6P30DAS-IL (2.8mm)
Model: KG-6P30DAS-IL
Key Features:
- Resolution 6 MPX (3296 × 1856) at 25 frames per second
- H.265+/H.264+ compression
- WDR (120 dB), day/night (ICR), 3DNR, AWB, AGC, BLC
- 2.8 mm lens
- Built-in microphone
- Smart dual light reflector (IR + LED) up to 30 m
- MicroSD card slot up to 512 GB
- Advanced video analysis IVS: SMD + PP 2.0 (human/vehicle/motorbike), line crossing, intrusion detection, entrance to area, exit from area, loitering, face detection
- 3 streams
- Reset button
- Alarm input/output 1/1
- Audio input/output 1/1
- Corridor mode
- Dual power supply 12 V DC / PoE (802.3af)
- IP67 rated housing
- Supports ONVIF 2.6 standard
- Mobile viewing on smartphone (“Android”, “iPhone”)
- Free software in Polish for registration on your computer
Purpose
The camera is designed for outdoor use. The housing allows for installation on both ceilings and walls. It is ideal for monitoring parking lots, sports fields, arenas, squares, government institutions, schools, and more.
Technical Specifications
| Model | KG-6P30DAS-IL |
| Image sensor | 1/2.7 inch CMOS progressive scan |
| Minimum illumination | Color: 0.005 lux (F1.6, AGC on), 0 lux in ambient light |
| Illumination range | 30 m (IR light), 30 m (warm light) |
| Smart IR | Yes |
| Lens | |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Field of view (FOV) | Horizontal: 110°, Vertical: 58°, Diagonal: 132° |
| Lens connection | M12 |
| Compression standard | |
| Video compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 profile | Baseline / Main / High |
| H.265 profile | Main |
| Video bitrate | 16 Kbps–16 Mbps |
| Triple stream | Supported |
| Audio compression | G.711A / G.711U |
| Audio bitrate | 64 Kbps |
| Image | |
| Maximum video resolution | 6 MP (3296 × 1856) |
| Main stream | 50 Hz: 25 fps 6 MP (3296 × 1856) 25 fps 5 MP (3072 × 1728) 25 fps 4 MP (2560 × 1440) 25 fps 1080P (1920 × 1080) 60 Hz: 30 fps 6 MP (3296 × 1856) 30 fps 5 MP (3072 × 1728) 30 fps 4 MP (2560 × 1440) 30 fps 1080P (1920 × 1080) |
| Secondary stream | 50 Hz: 25 frames per second 720P (1280 × 720), 25 frames per second D1 (704 × 576), 25 frames per second CIF (352 × 288) 60 Hz: 30 frames per second 720P (1280 × 720), 30 frames per second D1 (704 × 480), 30 frames per second CIF (352 × 240) |
| Third stream | 50 Hz: 25 frames per second CIF (352 × 288) 60 Hz: 30 frames per second CIF (352 × 240) |
| Video settings | Brightness, contrast, saturation, hue, sharpness |
| Shutter speed | Automatic / manual, 1/3 sec. ~ 1/100000 sec. |
| Day/Night mode | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| Noise reduction | 2D/3D DNR |
| BLC / HLC / ROI / Rotation | Supported |
| Least developed countries | Yes |
| Smart features | |
| Main events | motion detection (SMD human/vehicle/motorbike), video obscured |
| Smart events | Line crossing, intruder detection, entrance/exit from zone (people/vehicle/motorbike), loitering detection |
| People counting | NO |
| Face detection | Yes |
| Network | |
| Online journal | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, cloud protocol |
| System compatibility | ONVIF (S, G, T profiles), SDK |
| Security | Password protection, complex password, HTTPS encryption, IP address filtering, primary and summary authentication HTTP/HTTPS, TLS 1.1/1.2 support, WSSE and summary authentication for open network video interface (ONVIF). |
| Users | Up to 40 users |
| Web browsers | Direct view requires plugins: IE 10, IE 11 Direct view without plugins: “Chrome 57.0+”, “Firefox 52.0+”, “Edge 89+” Local service: “Chrome 57.0+”, “Firefox 52.0+” |
| Mobile app | “Android”, “iOS” |
| Active deterrent | |
| Warning of red and blue traffic signal | NO |
| Audio warning | NO |
| Interfaces | |
| Communication interface | 1 × RJ45 10/100/1000M adaptive Ethernet |
| Internal memory | Up to 512 GB |
| Microphone | Yes, built-in |
| Speaker | NO |
| Audio input/output | 1/1 |
| Input/output alarm | 1/1 |
| RS485 | missing |
| Reset button | Yes |
| General | |
| Operating conditions | -40°C ~ 60°C, humidity ≤95% (non-condensing) |
| Power source | 12 V DC ±25 % |
| PoE | PoE (802.3 at) |
| Power consumption | Max. 7.2 W |
| Protection level | IP67 |
| Housing material | Metal |
| Dimensions | Φ144.5 × 113.5 mm |
| Overall weight | 1050 g |
