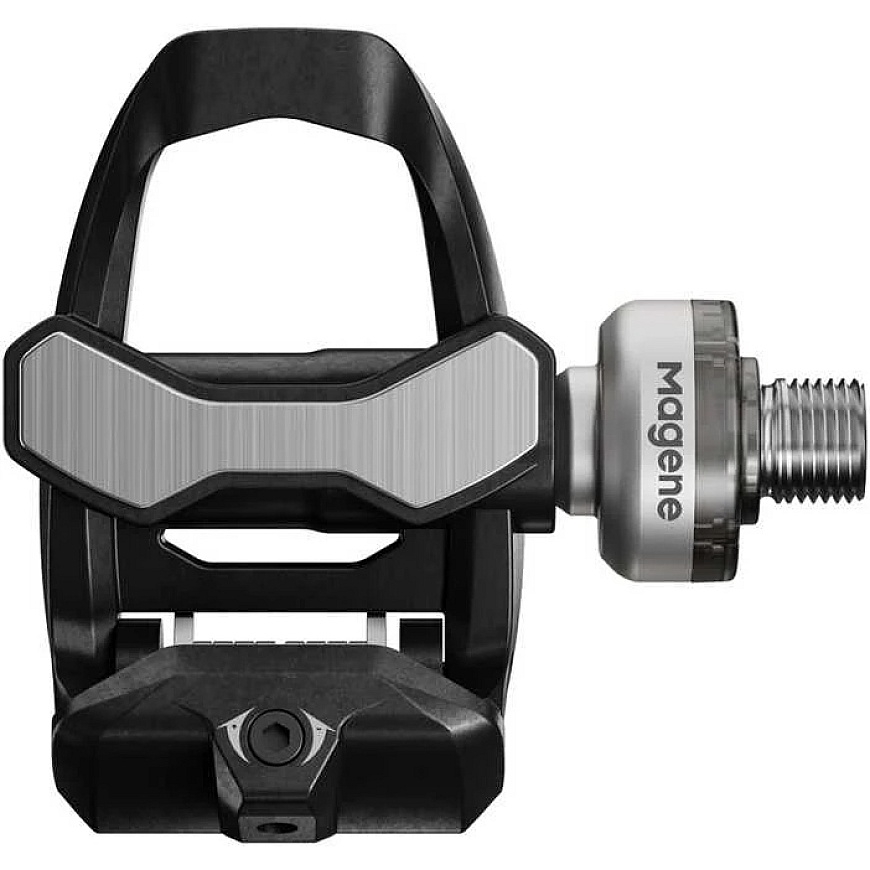

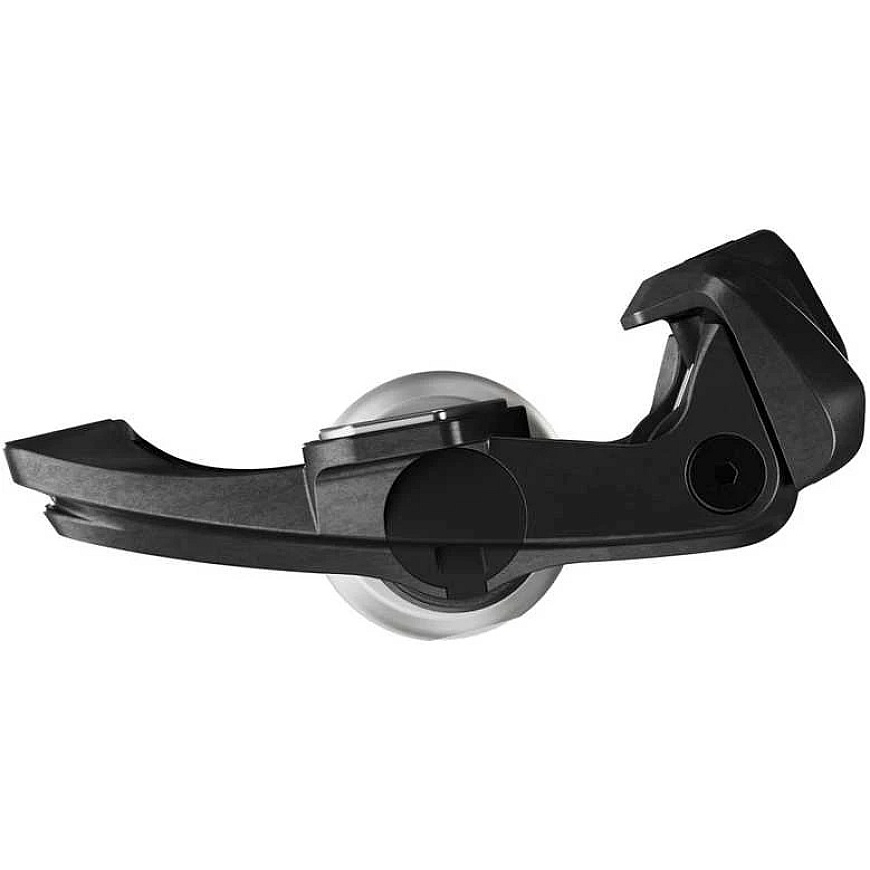

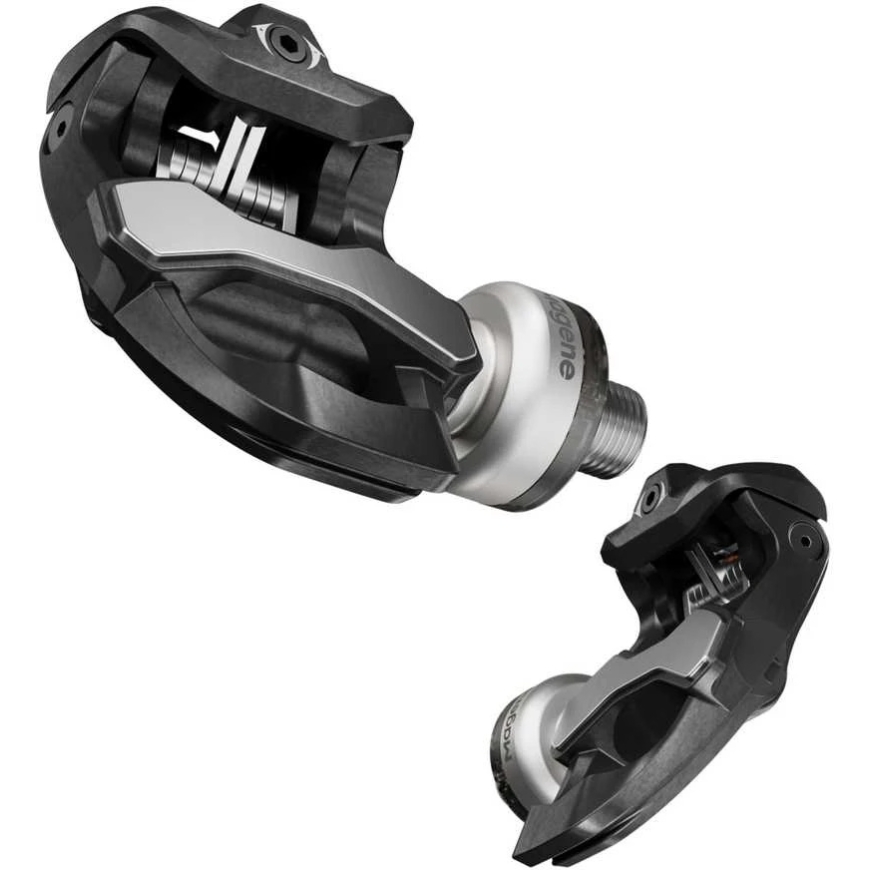

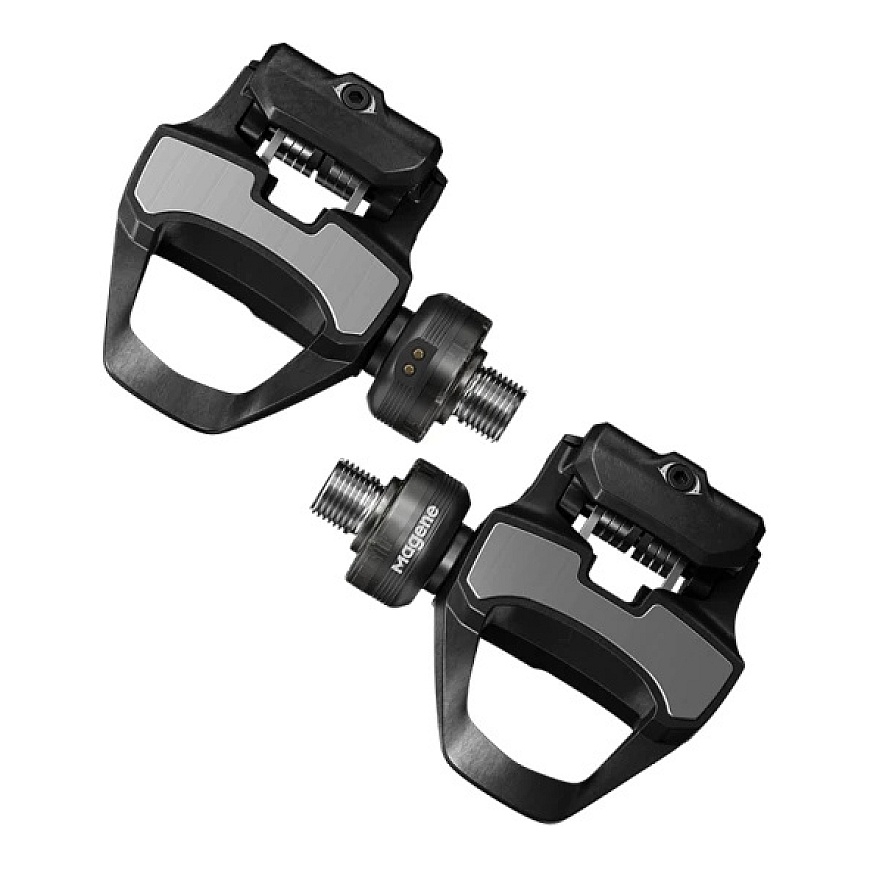

Magene P715K Bicycle Pedal Power Meter (KEO Cleats)
5036988 28256
6971606842278
Shipping 6-10 b.d.
All about the product
120 hours of battery life – for your long cycling trips
The P715 pedal-based power meter can operate for up to 120 hours, and charging is very simple with magnetic charging. Compared to clip-on charging or replaceable button batteries, it uses a rechargeable lithium battery.
This allows for a more comfortable and environmentally friendly cycling experience while protecting the charging connector. Fully charged in 3 hours, after which you are ready for long journeys and workouts of up to 120 hours.
±1 % constant power accuracy – accurately capture every effort
Bidirectional power meter axes
Integrated power meter axes allow the measurement module to be closer to where power is generated (watts). This reduces energy transmission losses and measurement errors.
The P715 pedal-based power meter measures the power of both legs simultaneously, providing accurate and reliable data on the power generated by each leg.
Integrated gyroscope
Depending on your pedaling style, the pedal rotation speed at different angles and moments can vary significantly.
The gyroscope measures real-time angular velocity and accurately calculates instantaneous power at each pedal angle point. This significantly improves the accuracy of power measurement under unstable riding conditions.
Temperature compensation
Changes in altitude and temperature can affect strain gauges and thus reduce the accuracy of power measurements.
To eliminate this effect, temperature compensation is used. The power algorithm automatically adjusts to changes in altitude and temperature, ensuring consistent and accurate power data even under extreme conditions.
157 g weight of a single pedal – lightweight yet sturdy and safe
The pedals are made from composite carbon fiber, and the axle is from hardened stainless steel.
This allows for maximum weight reduction while maintaining structural strength. Even after 1 million pedaling cycles, the product remains fully functional.
Test data obtained from the Magene laboratory.
7 advanced training functions – comprehensive cycling analysis
Riding status analysis
The secret to improving cycling performance is not just power. In addition to standard power and cadence data, the P715 provides advanced ride analysis metrics that help better understand pedaling technique and riding efficiency.

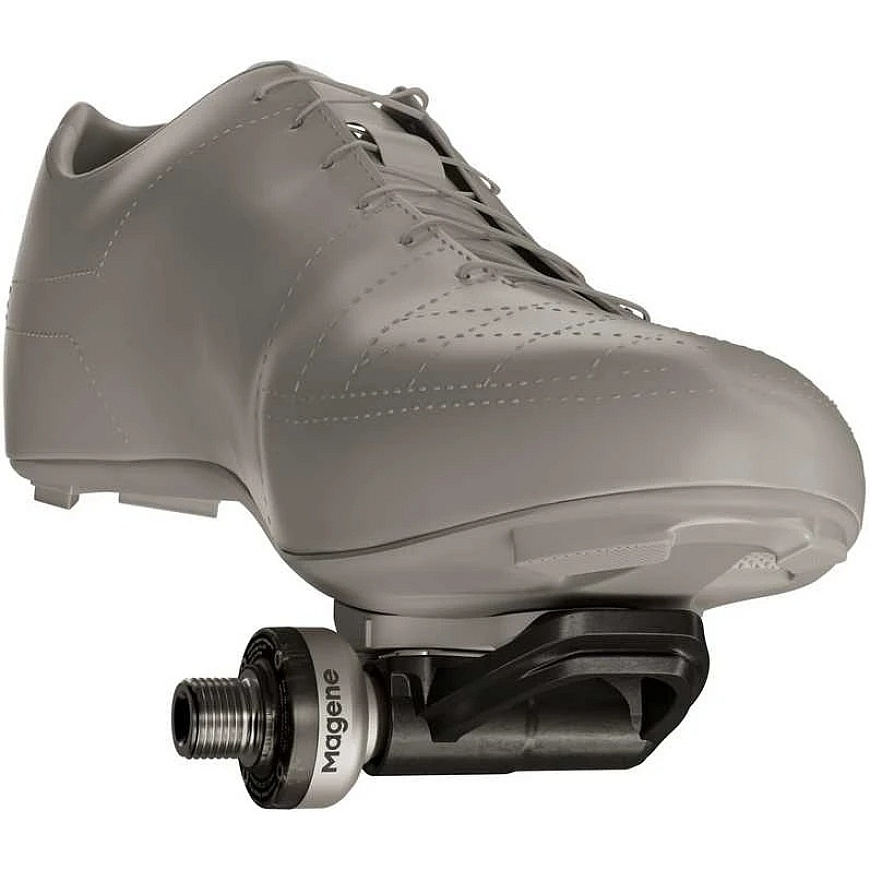

Installation in 1 minute – train anytime, anywhere
Installing the P715 pedal-based power meter is just as easy as installing regular road bike pedals.
Simply screw in the pedal and tighten it with a wrench – and you can start your workout.
Supports Bluetooth and ANT+ dual protocols
The P715 supports Bluetooth and ANT+ communication protocols.
You can connect one Bluetooth device and an unlimited number of ANT+ devices simultaneously.
Specifications:
| General information | |
| Model | P715 K |
| Weight | 314 g |
| Clip type | KEO |
| Q-factor | 55 mm |
| Pedal height (stack height) | 11 mm |
| Power measurement accuracy | ±1 % |
| Water resistance | IPX7 |
| Operating temperature | -20 °C – 50 °C |
| Measurement functions | |
| Data | Power, cadence, left and right balance, torque efficiency, pedaling smoothness, power phase, riding position |
| Cadence range | 20–240 rpm |
| Power range | 0–2500 W |
| Calibration | Automatic and manual |
| Connectivity and compatibility | |
| Wireless connection | Bluetooth, ANT+ |
| Compatible bike computers | Magene, Garmin, Wahoo, iGPSPORT, Bryton, XOSS, BLACK BIRD, etc. |
| Software | Magene Utility |
| Battery | |
| Battery life | Up to 120 hours |
| Charging method | Magnetic charging |
| Package contents | |
| Included | Power meter pedals ×2, crank washers ×2, charging cable ×1, quick start guide ×1 |
