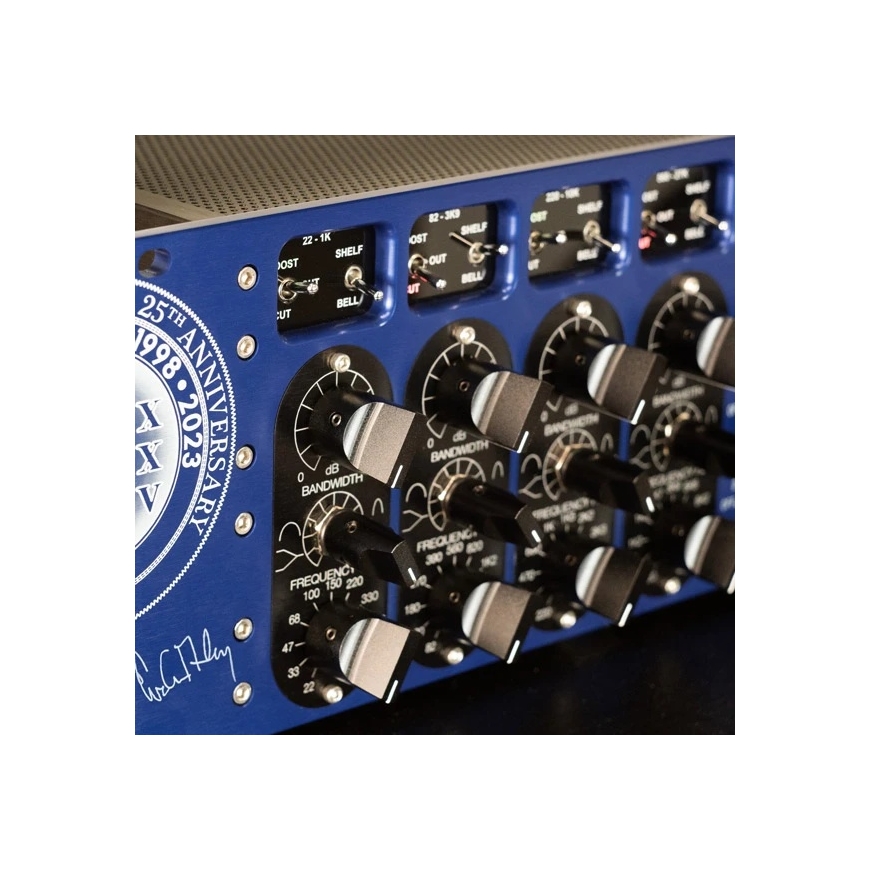

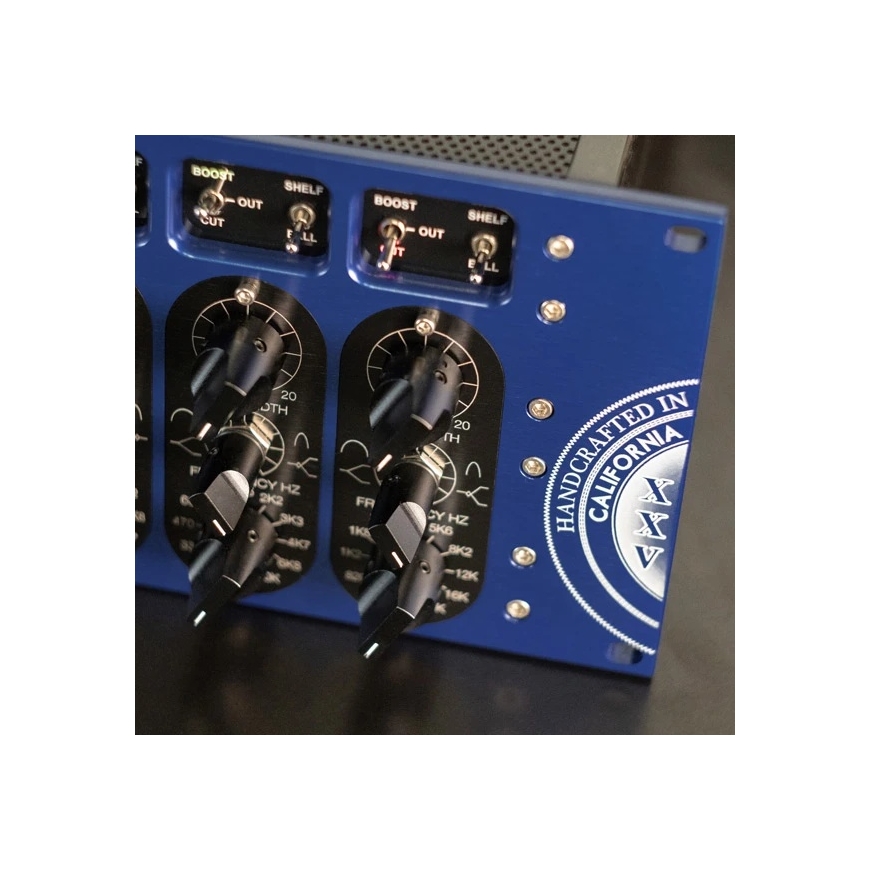

Manley MASSIVE PASSIVE - 2-channel equalizer
6 479.00 €
Monthly payment from 167,73 €
5036085 MANLEYMSMP
0890833000038
Shipping 7-11 b.d.
You are interested in this product?
All about the product
Passive equalizer, filters [high frequency pass, low frequency pass], parametric [low, low mid, high mid, high], each band shelf/call switch, gain adjustment from -6 to +4 dB, maximum gain/reduction 20 dB, 2 x 5751 and 4 x 6922 tubes, 123 dB dynamic range, made in the USA
- MANLEY POWER® driven version
- Inputs: balanced XLR and 6.35 mm (accepts unbalanced signal),
- Outputs: balanced XLR (accepts unbalanced signal) and unbalanced 1/4 inch
- Level +4 dBu nominal,
- Bypass switch disconnects equalizer and tube circuits: 1/4 inch jacks (not “Hardwire Bypass”),
- Bypass switch disconnects EQ, tube circuits and input buffer: XLR jacks (wired bypass),
- Gain control: -6 dB – 0 dB – +4 dB,
- 44 frequencies (approximately every 1/4 octave),
- Frequency response: from 22 Hz to 27 kHz,
- EQ gain/reduction range: maximum 20 dB gain or reduction,
- Nominal Q range: from 1.5 to 3 (especially active in shelf modes),
- Maximum input level: 21 dBu,
- Maximum output level (1 kHz sine, 1% THD+N, bandwidth 22 Hz–22 kHz, 100 kΩ load): +35 dBu,
- Frequency response (at +4 dBu, 100 kΩ load): -0.1 dB at 10 Hz, -1 dB at 60 kHz,
- Total harmonic distortion (THD+N) (1 kHz sine, at +4 dBu, bandwidth 22 Hz–22 kHz): 0.006 %,
- Output dynamic range (at +4 dBu): 31 dB,
- Dynamic range (compared to maximum output level): 123 dB,
- Noise level (device gain): -88 dBu (A-weighted),
- Signal to noise ratio (specified at +4 dBu, bandwidth 22 Hz–22 kHz): 92 dB,
- Input impedance: 20 kΩ,
- Output impedance: 150 Ω,
- Tubes: 2 x 5751, 4 x 6922,
- Automatic mute during warm-up: 20 seconds,
- Power consumption (120/240 V AC): max. 44 W,
- Power supply voltage and frequency (VAC/Hz): Internal universal power supply 90–254 VAC / 50–60 Hz,
- Size (3U): W 48.3 x D 25.4 x H 13.3 cm,
- Device weight: 7 kg,
- Package dimensions: length 58.4 x width 38.1 x height 25.4 cm,
- Weight with package: 11.79 kg
