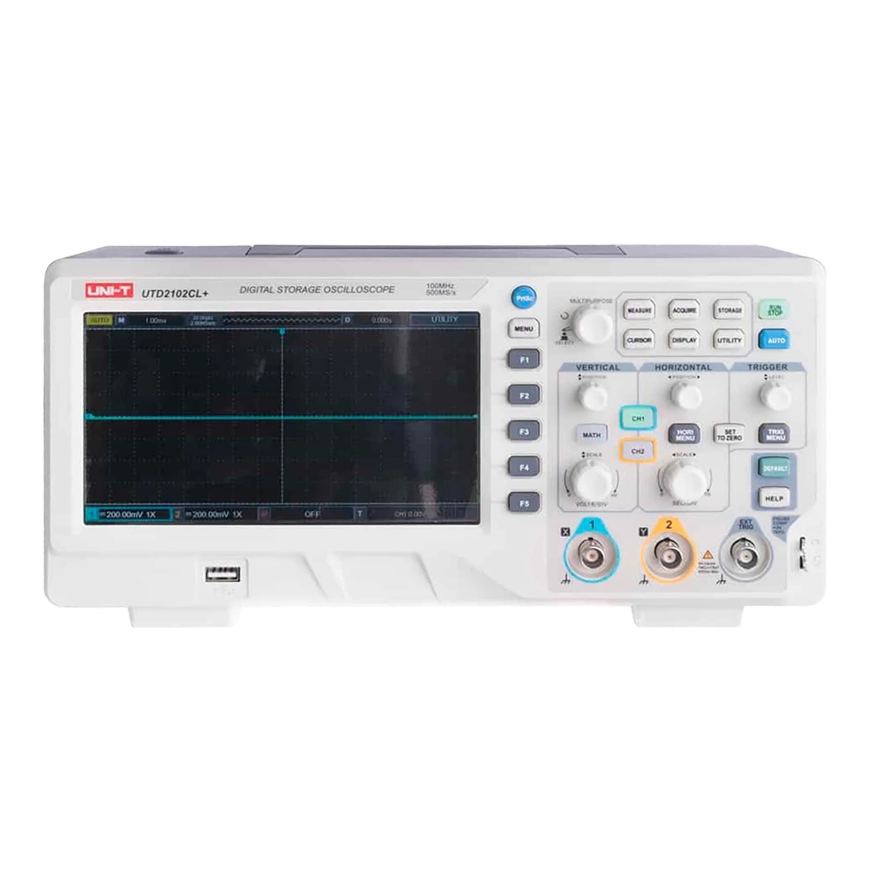

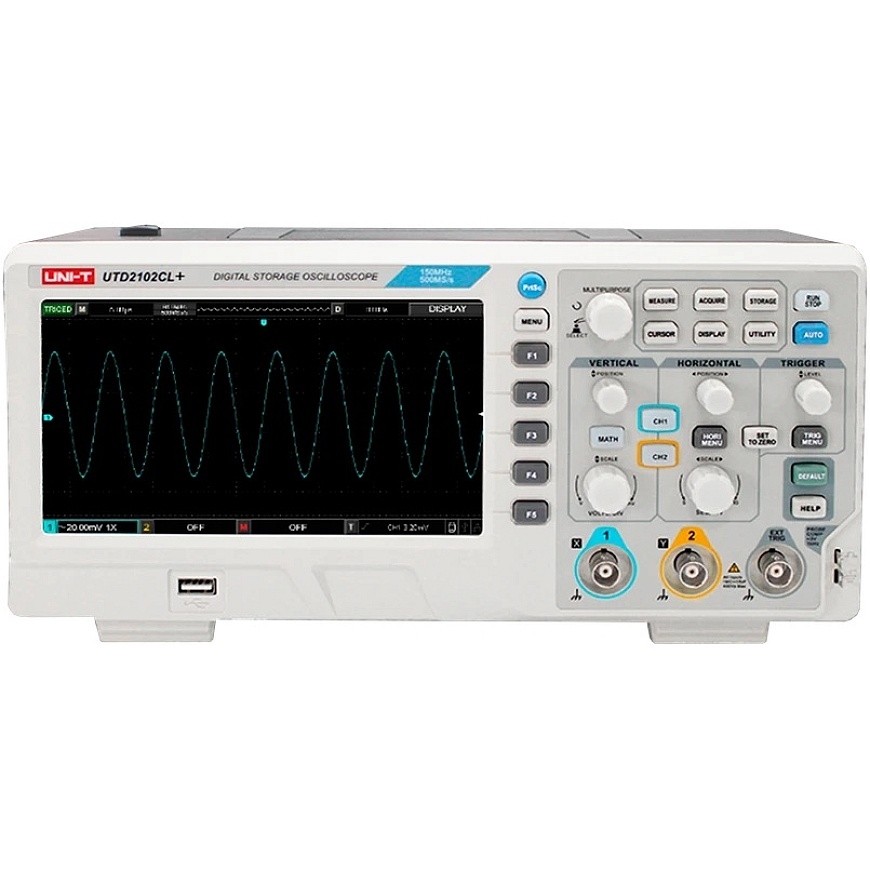

Uni-T UTD2102CL+ Oscilloscope

The "Uni-T UTD2102CL+" is a versatile digital oscilloscope that combines high measurement accuracy with ease of use. Designed for engineers, maintenance technicians, and electronics enthusiasts, it offers extensive signal analysis capabilities in a compact and durable housing. Discover the five key advantages that make it an indispensable tool in modern workshops.

Bandwidth 100 MHz

With a bandwidth of 100 MHz and a rise time of 3.5 ns, the UTD2102CL+ allows accurate observation of high-speed digital and analog signals. It is an excellent solution for analyzing pulses, signal edges, and interference in electronic systems – perfect for everyday engineering.

Sampling Rate 500 MS/s

With a maximum sampling rate of 500 million samples per second and a memory depth of 64 kbit/s (per channel), the UTD2102CL+ features exceptional time resolution and waveform reconstruction accuracy, which are critical for analyzing complex signals and rare anomalies.

High Sampling Rate

The oscilloscope offers a sampling rate of up to 500 MS/s and a memory depth of 64 kpts per channel, enabling it to capture and accurately display even complex waveforms. This allows the device to perform reliable real-time signal analysis without the risk of data loss.

Clarity and Comfort in Operation

The integrated 7-inch TFT LED display with 800 × 480 pixel resolution ensures excellent waveform readability. Bright graphics and an intuitive interface facilitate navigation and data analysis, enhancing efficiency and ease of use under any conditions.

Advanced Triggering and Analysis

The UTD2102CL+ offers advanced triggering modes including slope, pulse width, and video trigger functions. Along with mathematical functions (addition, subtraction, multiplication, division, FFT), the device allows for comprehensive signal analysis and diagnostics without additional software.

Data Always at Hand

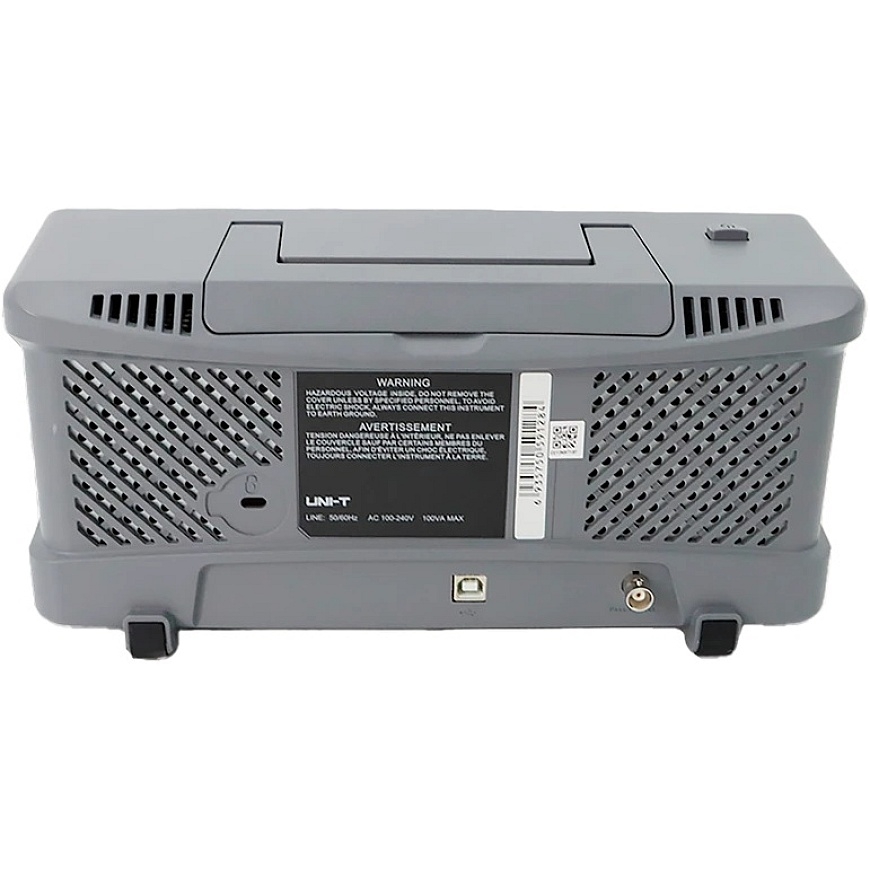

Two USB ports (host and device) allow for quick saving of configurations, waveforms, and screenshots in bitmap formats. This is ideal for documentation of measurements, team collaboration, and reporting results. The "Uni-T UTD2102CL+" adapts to your workflow wherever you are.
