Nocpix VISTA H35R Thermal Imager

All about the product

DESCRIPTION

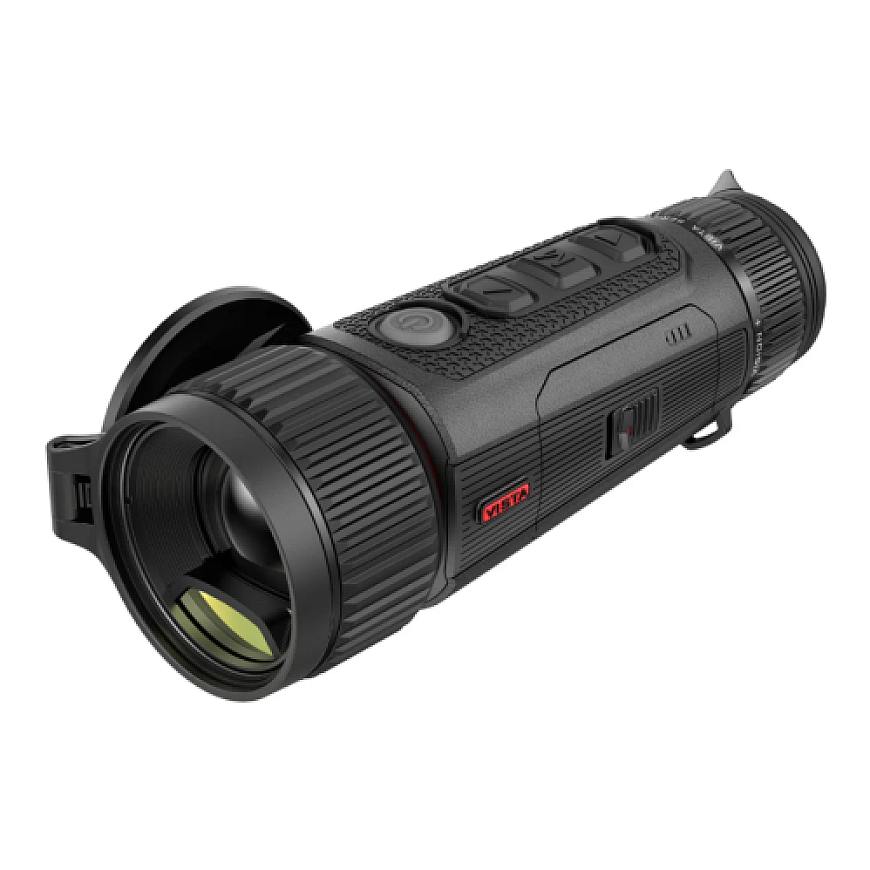

The "Nocpix VISTA H35R" is a versatile thermal monocular with an integrated laser rangefinder (LRF), designed for reliable use both day and night. This advanced device features exceptional thermal imaging capabilities, providing clear and detailed images even in challenging weather conditions such as fog, smog, and rain. It can detect targets through obstacles like branches, tall grass, and dense foliage, ensuring effective operation in environments where traditional optics fail.

Perfect for various needs, the "VISTA H35R" is ideal for hunting, surveillance, security, terrain navigation, and search and rescue missions. With advanced technology and a durable construction, the "VISTA H35R" ensures accurate detection and measurement even in the most challenging conditions.

SPECIFICATIONS:

• Resolution: 640 x 512

• Pixel size: 12

• NETD, mK: ≤15

• Frame rate: 50

• Lens: 35 mm F0.9

• Field of view: 12.5 x 10.0

• Field of view (linear): 22 x 18

• Magnification: 3–28

• Detection range: 1800

• Distance to eye: 25

• Exit pupil diameter: 8

• Diopters: -4 ~ +6

• Screen type: AMOLED

• Screen resolution: 2560 x 2560

• Battery: Replaceable lithium-ion battery IBP-7 / 4400 mAh

• Max. operation time: 5.5

• Measurement distance: 1200

• Laser: Class 1

• Wi-Fi/app: YES

• MICROPHONE: YES

• Memory capacity: 64 GB

• IP protection class: IP67

• Max. Operating temperature: -20 ~ +50

• Weight (oz): 22.58

• Weight (g): 640

• Dimensions (inches): 7.48 x 2.64 x 3.11

• Dimensions (mm): 190 x 67 x 79

FEATURES:

• 640 × 512 12 μm detector

• NETD ≤ 15 mK

• 60 Hz high frame rate

• F0.9 lens

• AMOLED 2560 × 2560 round display

• Rechargeable IBP-7 battery for quick replacement

• Smooth digital zoom: 1 × ~ 8 ×

• Ultra-clear mode

• Eye protection with low brightness, color palette and warm tone

• Electronic image stabilization

WHAT'S IN THE BOX:

• NocPix VISTA H35R handheld thermal monocular with LRF - 35 mm 12 um 640x512 <15 mk NETD
