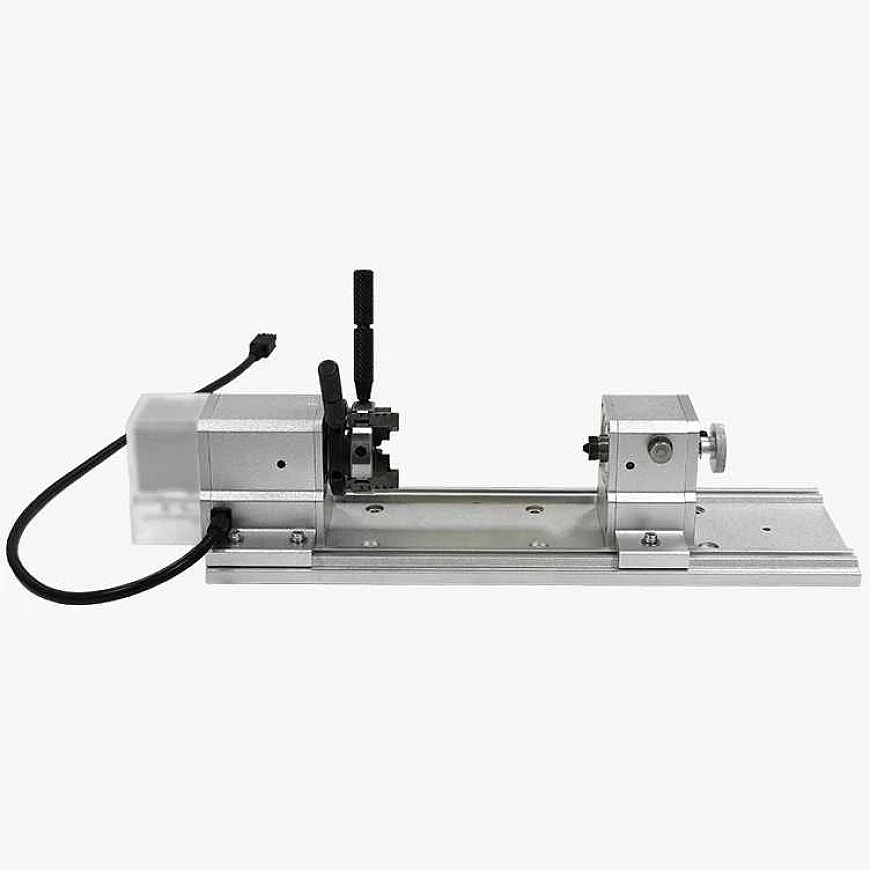

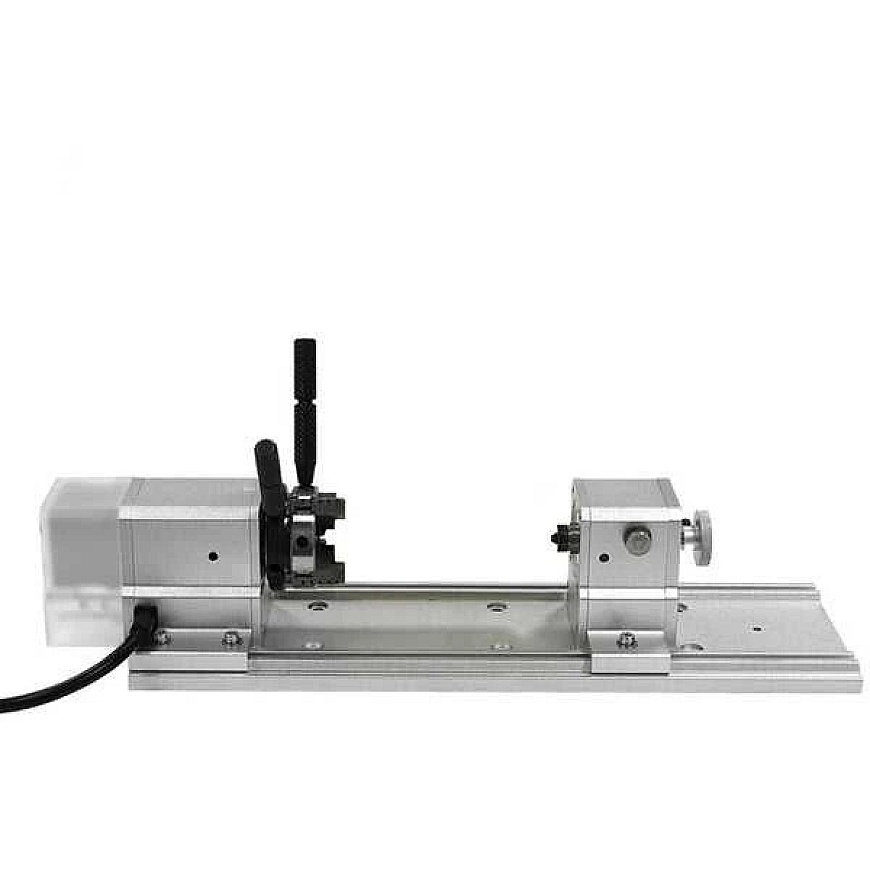

MAKERA Carvera Air 4-Axis Module

The "Carvera Air™" 4-axis module (version with harmonic drive) significantly expands the milling machine's capabilities, allowing for the machining of cylindrical parts, double-sided projects, and complex 3D shapes. With simultaneous operation on four axes, you can create realistic 3D models while maintaining complete freedom of material choice – from plastic and wood to metal. This solution allows you to elevate your designs to the next level and achieve details that were previously difficult or impossible to reach. The module is designed exclusively for the "MAKERA Carvera Air™" milling machines.

Versatility in Every Project

Using the 4th axis, significantly more complex shapes can be machined compared to using the standard 3-axis configuration. It is easy to create rotary parts, details machined on both sides, and complex 3D models. The "Carvera Air™" ensures simultaneous operation across all four axes, resulting in greater precision and design freedom.

Precision through Harmonic Drive

The module features a harmonic drive, providing very high motion precision and minimal backlash. The device guarantees smooth and stable operation, which is vital for projects that require high repeatability and precise details.

Intelligent and Simple Configuration

Thanks to integration with "Carver Air™" features such as quick tool change, automatic probing, and position detection system based on a home position, configuring 4-axis operation is as simple as standard 3-axis machining. Just prepare your project, and the machine will automatically do the rest, reducing setup time and minimizing the risk of errors.

User-Friendly Software and Easy Control

"Makera CAM" simplifies 4-axis programming using intuitive features that allow for quick conversion of 3D models into ready-to-use G-code. This makes it easier to carry out even more complex projects. The module is also compatible with popular software such as "Fusion 360" and "VCarve," so you can work in a familiar environment.

Included

• 4-axis module
• 2 resin modeling plates for the 4th axis
• 2 pcs. 4th axis turning chuck key
