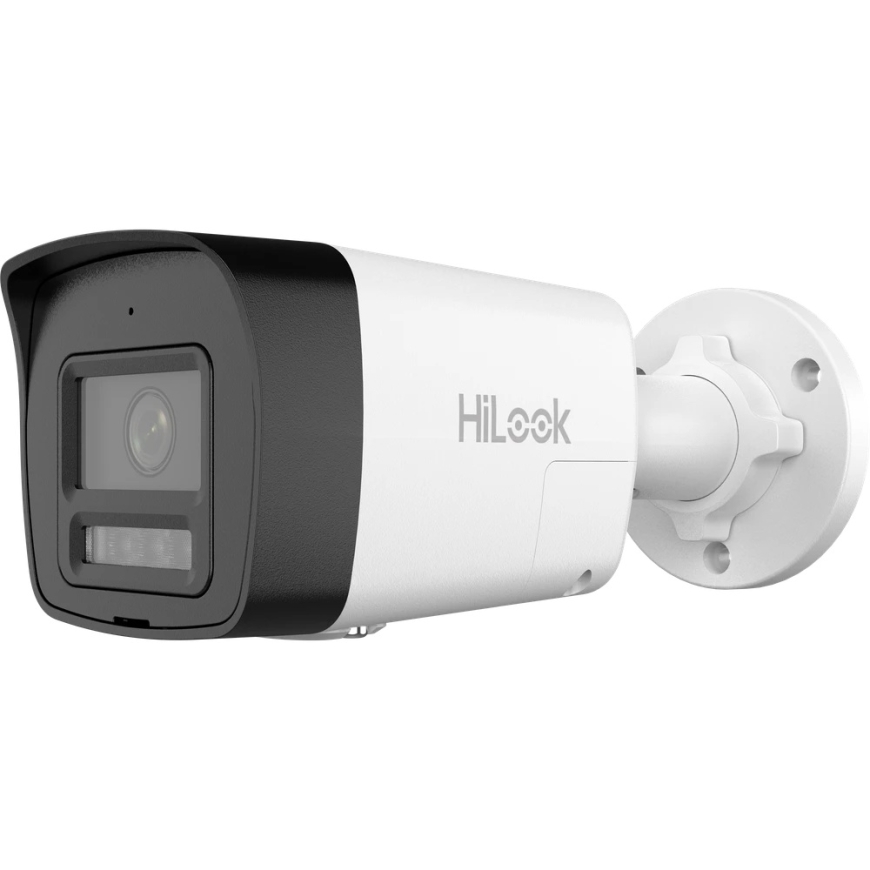

"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)

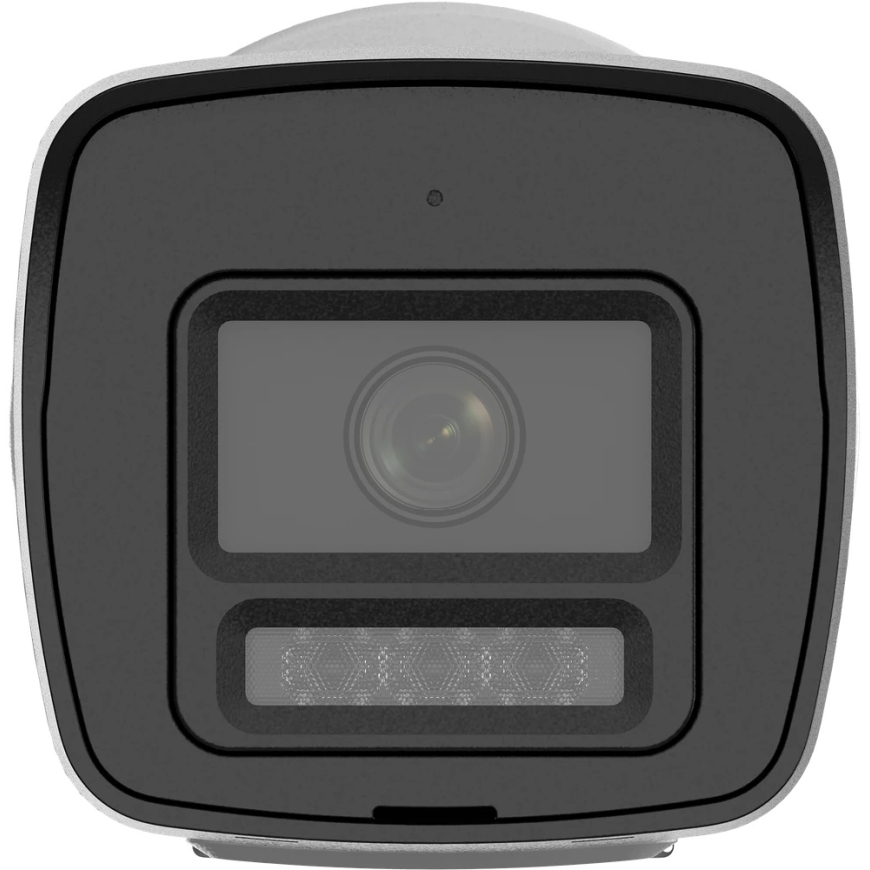

"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm) – 2
-8%
"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)
"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)
"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)
"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)
"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)
"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

"HiLook" bullet-shaped lens IPC-B180HAP-LUF/SL F2.8 (white, 8 MP, 30 m IR, 30 m LED, audio alarm)

129,00 €
119.00 €
Monthly payment from 3,96 €
5035508

6942160457864

Shipping 5-8 b.d.

You are interested in this product?
(Read terms of service)

All about the product

  • Certifications
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • Sound
  • Audio Bitrate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Sampling Rate 8 kHz/16 kHz
  • Audio Type Mono sound
  • Noise Cancellation Yes
  • Camera
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Day & Night IR cut filter
  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Maximum Resolution 3840 × 2160
  • Minimum Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • DORI
  • DORI 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m; 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
  • Features
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Interface Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
  • General Information
  • Dimensions 179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")
  • Flashing Light Red and Blue Light
  • Main Functions Heartbeat, anti-banding, mirror, password protection, password reset via email
  • Language English, Ukrainian
  • Material Metal
  • Package Size 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Power Supply 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
  • Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Weight Approx. 450 g (1.0 lb.)
  • Weight with Packaging Approx. 655 g (1.4 lb.)
  • Lighting
  • IR Wavelength 850 nm
  • Smart Additional Lighting Yes
  • Additional Lighting Range Up to 30 m
  • Additional Lighting Type IR, White Light
  • Photo
  • Day/Night Switch Day, Night, Auto, Schedule
  • Photo Enhancement BLC, HLC, 3D DNR
  • Video Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask 4 programmable rectangle privacy masks
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 120 dB
  • Interface
  • Built-in Microphone Yes,1 built-in microphone
  • Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
  • Internet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Button Yes
  • Lens
  • Aperture F2.0
  • Focal Length & FOV 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
  • Iris Type Fixed
  • Lens Mount M12
  • Lens Type Fixed focal lens, 2.8 and 4 mm optional
  • Network
  • API Open Network Interface (Profile S, Profile T, Profile G),ISAPI,SDK
  • Client iVMS-4200,HiLookVision
  • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
  • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Live View Up to 6 channels
  • User/Port Up to 32 users3 user levels: administrator, operator, and user
  • Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
  • Image
  • Bitrate Control CBR,VBR
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Main Stream 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Region of Interest (ROI) 1 fixed region for main stream
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Sub Stream 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Bitrate 32 Kbps to 16 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
