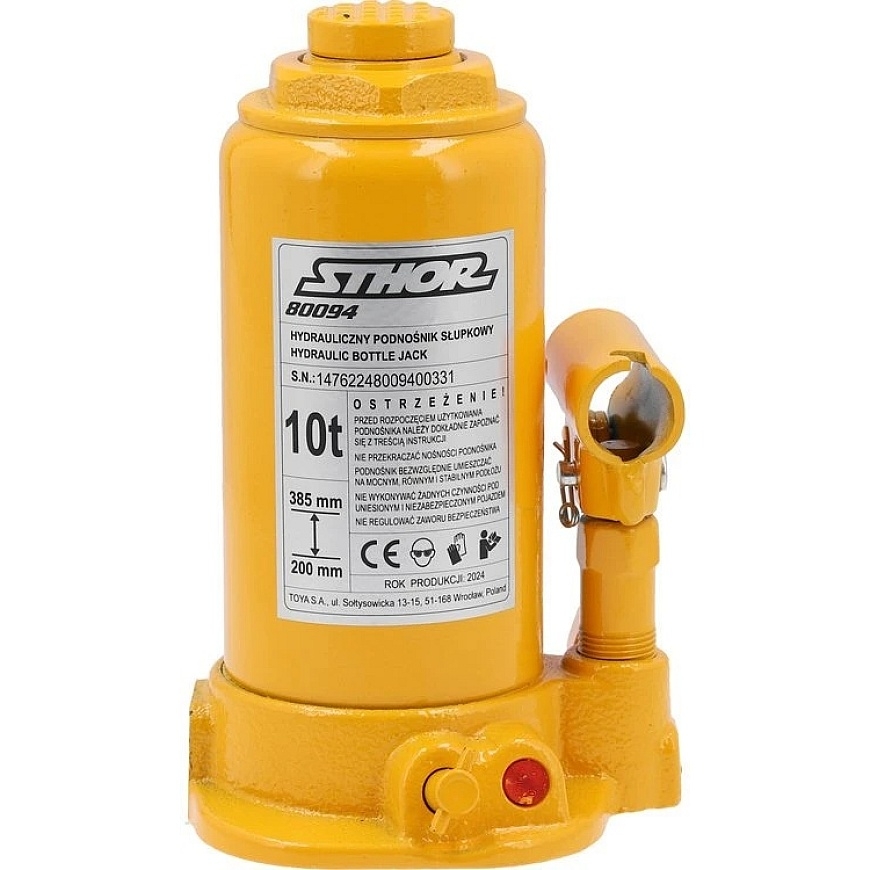

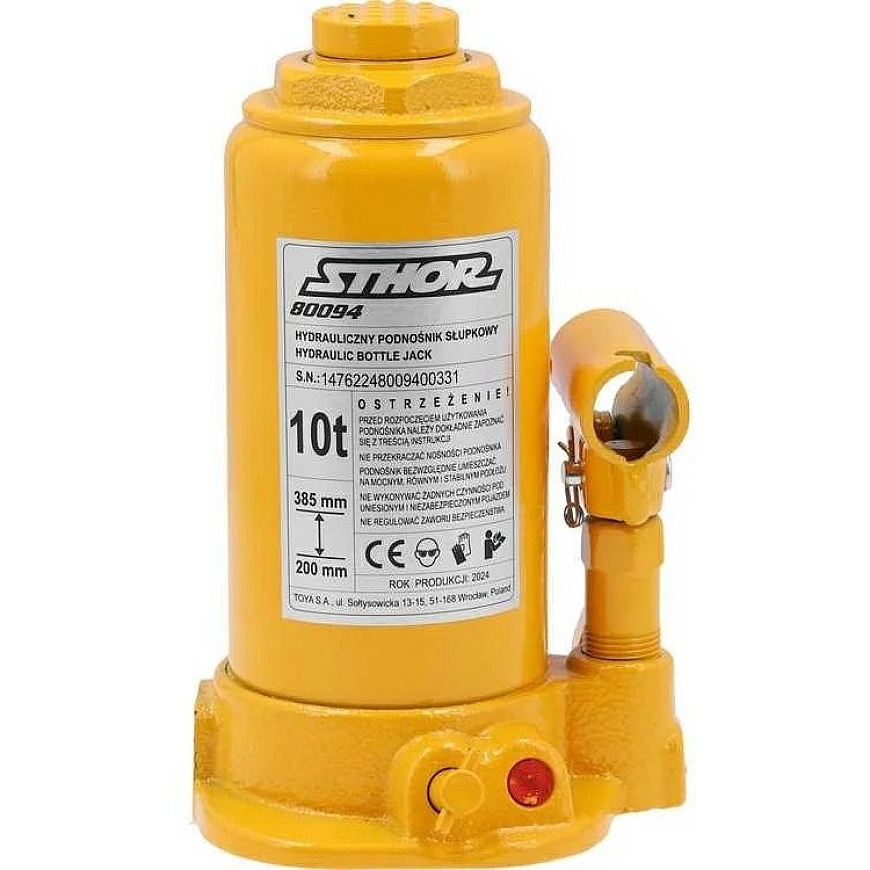

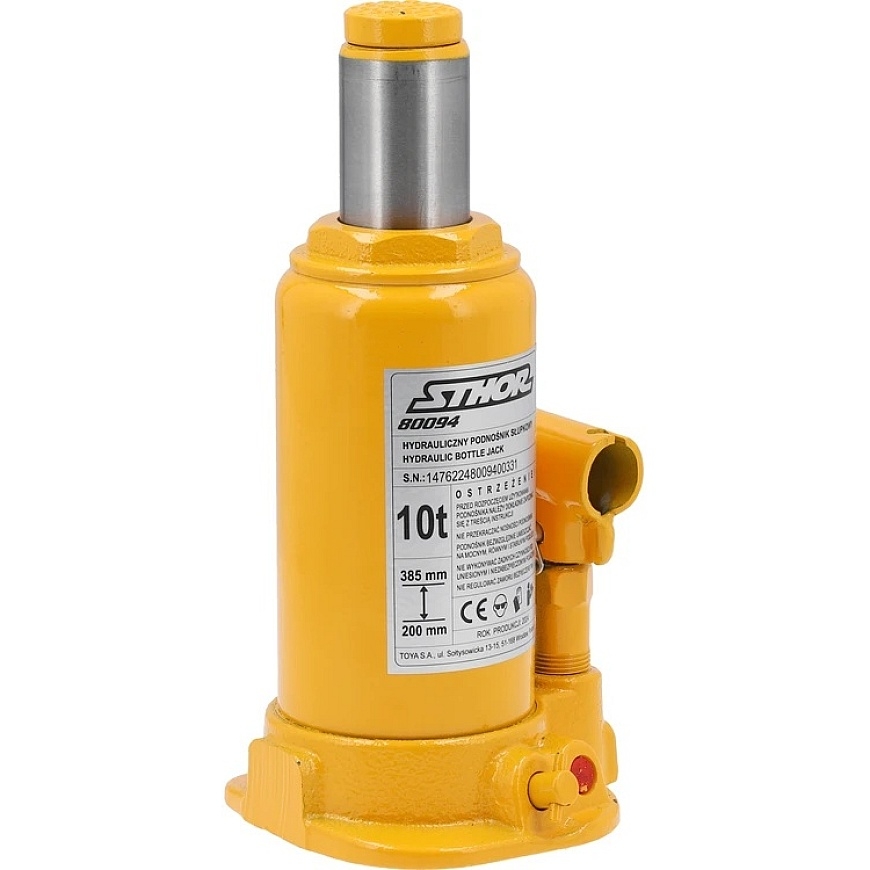

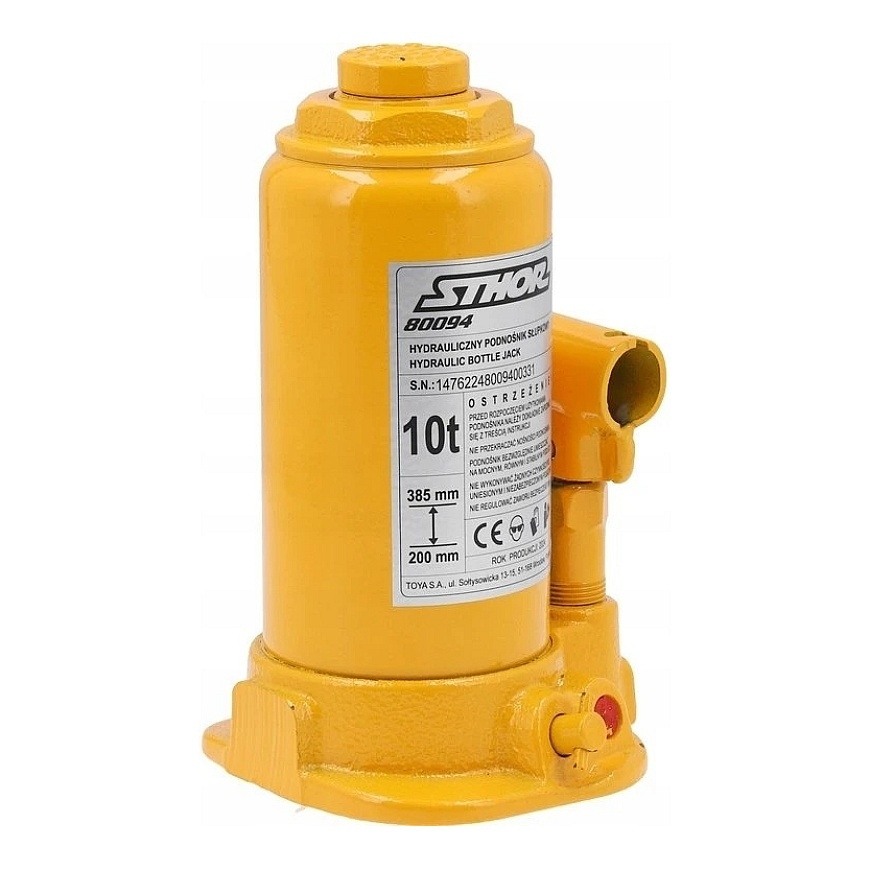

Hydraulic Bottle Jack | Column | 10 t | 200–385 mm (80094)

Hydraulic Column (Bottle) Jack is designed for lifting heavy loads in automotive workshops, garages, or maintenance operations. The lifting mechanism operates on the hydraulic principle, while lowering is controlled by a release valve.

You can find car lifting equipment and service tools

Main Features

• Lifting Capacity: 10 t.


• Type: Columnar.


• Lifting Range: 200–385 mm.


• Lifting Stroke: 125 mm.

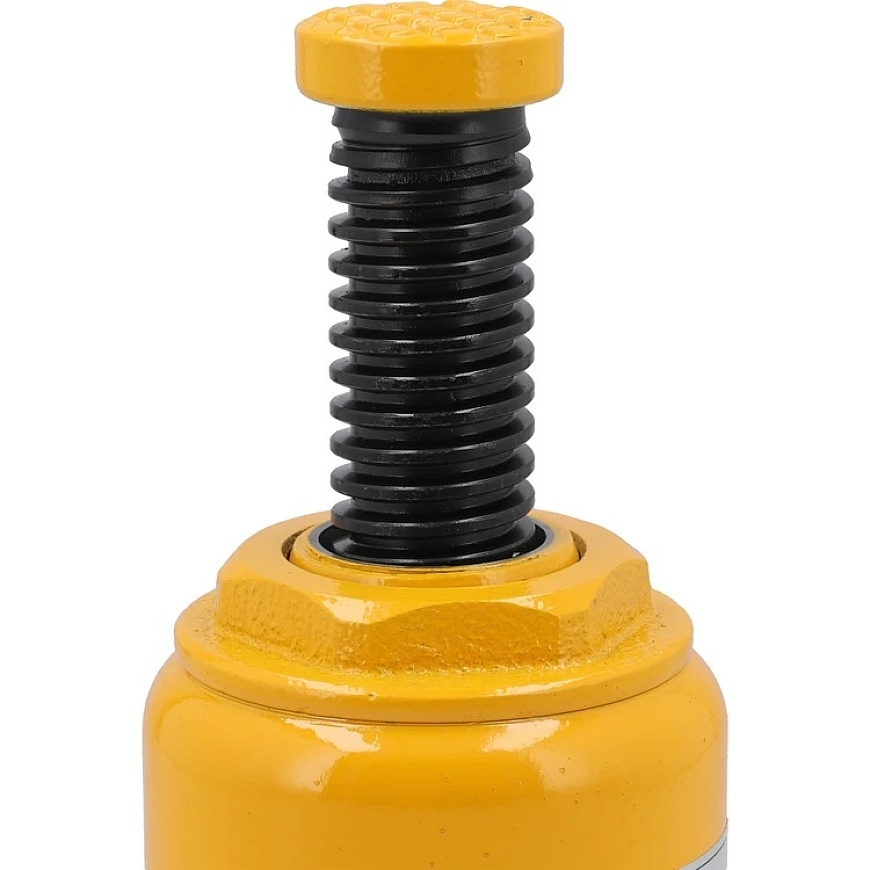

• Adjustment (Screw) Stroke: 60 mm.


• Construction Materials: Q235, 45#, nodular cast iron.

Technical Specifications

• Brand: Sthor.


• Responsible Entity in the EU: TOYA S.A.


• Series: GRF.


• Maximum Lifting Capacity: 10 t.


• Lifting Range: 200–385 mm.


• Weight: 5.4 kg.


• N.W: 5.1 kg.


• G.W: 26.3 kg.


• Product Code (Symbol): 80094.

Usage and Safety

• Before starting work, it is recommended to perform about 6 complete pumping cycles with the release valve open to ensure proper distribution of hydraulic oil.


• Place the jack only on a flat, hard, and stable surface; the load must rest on the saddle center.


• Do not work under a lifted and unprotected vehicle – it is necessary to use additional supports (e.g., stands) before starting work under load.


• It is prohibited to lift people or animals, and leaving a lifted load unattended is forbidden.


• It is strictly forbidden to adjust the safety valve.

Maintenance

• If the jack is not in use, keep the piston and lever socket in the lowered position; for column jacks, it is recommended to screw the extension bolt into the housing to reduce the risk of corrosion.


• Lubricate moving external parts and joints regularly, at least every 10 working hours.


• For oil replenishment, use only hydraulic oil SAE 10; the use of other fluids is prohibited.


• Expected service life: 4 years from the first use; after that, an inspection at an authorized service is recommended.
