POE POWER ADAPTER AEPI-1-50 ATTE
5035005 AEPI-1-50
5902143691365
This product is no longer in stock
All about the product

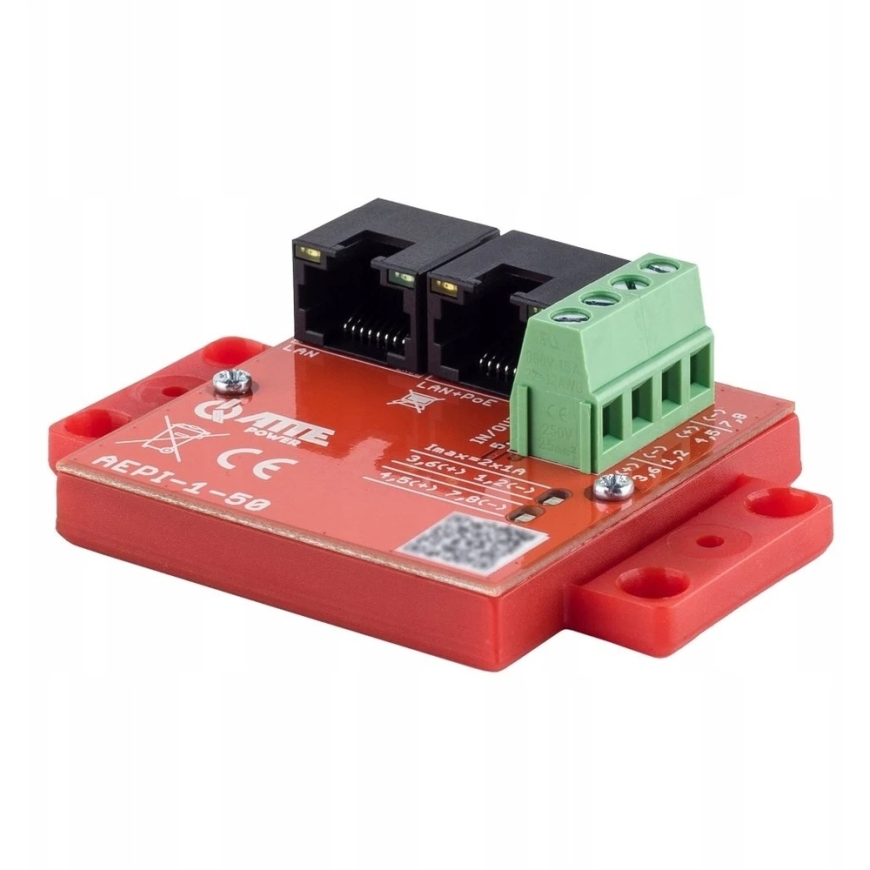

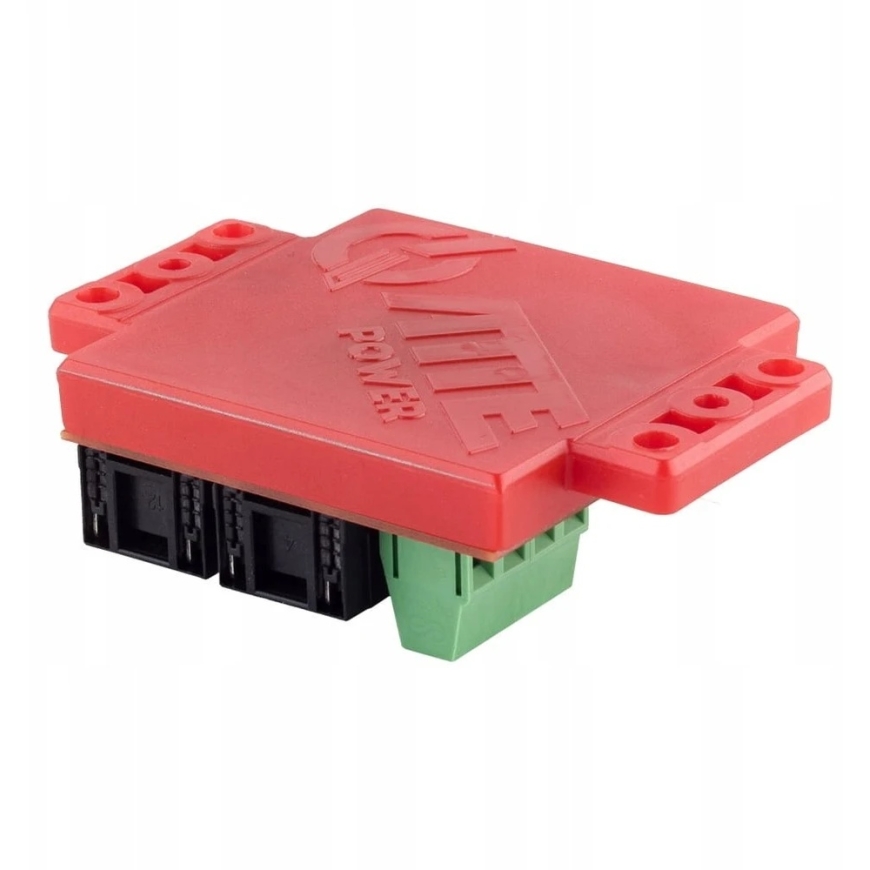

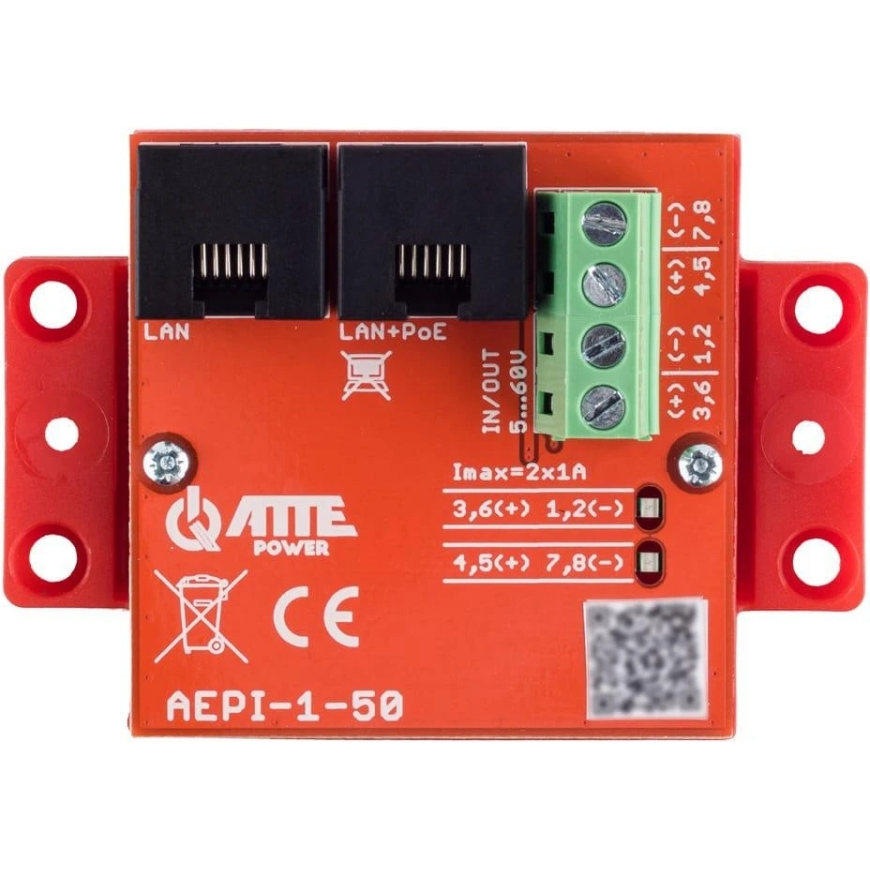

AEPI-1-50 is a gigabit, 1-channel power adapter (PoE injector) designed for 10/100/1000 Mbps data transmission and powering devices according to PoE 802.3af/at and PoE PASSIVE standards. The device allows for the transmission of up to 90 W of power. PoE power is supplied to the LAN+PoE port, while independent screw terminals allow for the selection of twisted pair cables and the transmission of two different voltage levels between two AEPI-1-50 adapters while maintaining a 1000 Mbps speed..
| Output Power : | max. 90 W (total) |
| Number of Inputs : | 1 pc. RJ-45 2 pcs. screw terminals |
| Input Voltage : | 10 ... 56 V DC - PoE |
| Output Voltage : | 10 ... 56 V DC - voltage same as input |
| Indicator LEDs : | Presence of PoE power source at the port |
| Main Features : | Ability to transfer data and two voltage levels over a single twisted pair cable Two independent power inputs and outputs (one for pairs 1-2, 3-6, the other for pairs 4-5, 7-8) Ingress Protection Class : IP20 |
| Protection Features : | - |
| Enclosure : | Plastic |
| Color : | Red |
| Operating Temperature : | -25 °C ... 50 °C |
| Weight : | 0.03 kg |

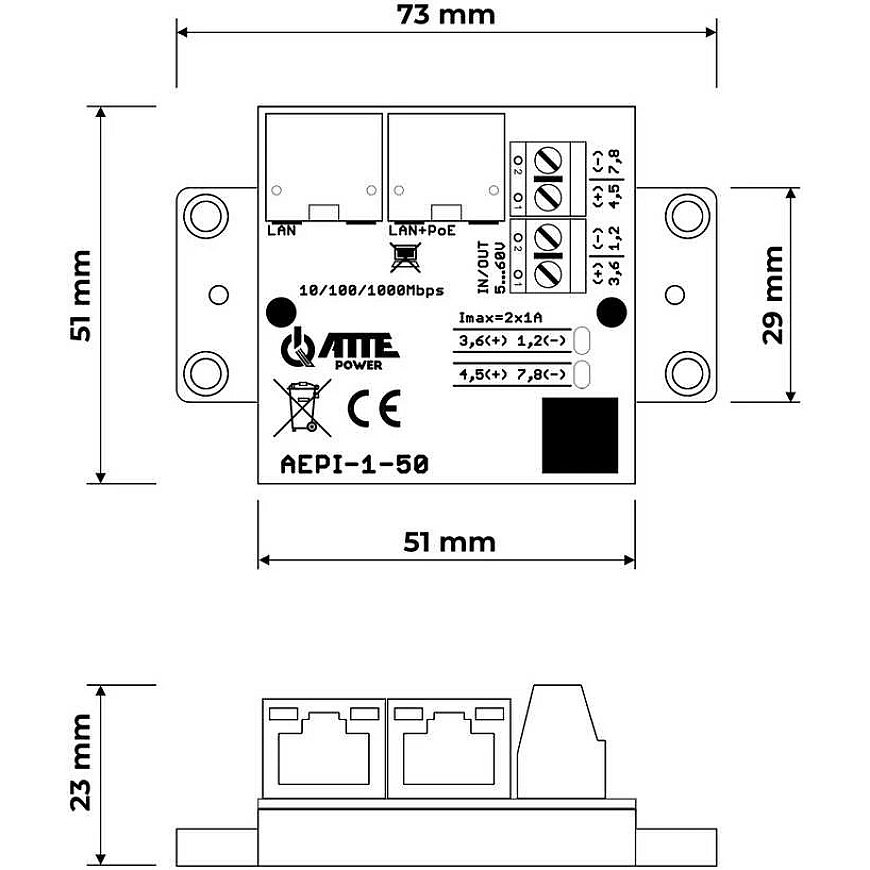

| Dimensions : | 73 x 51 x 23 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 2 years |
