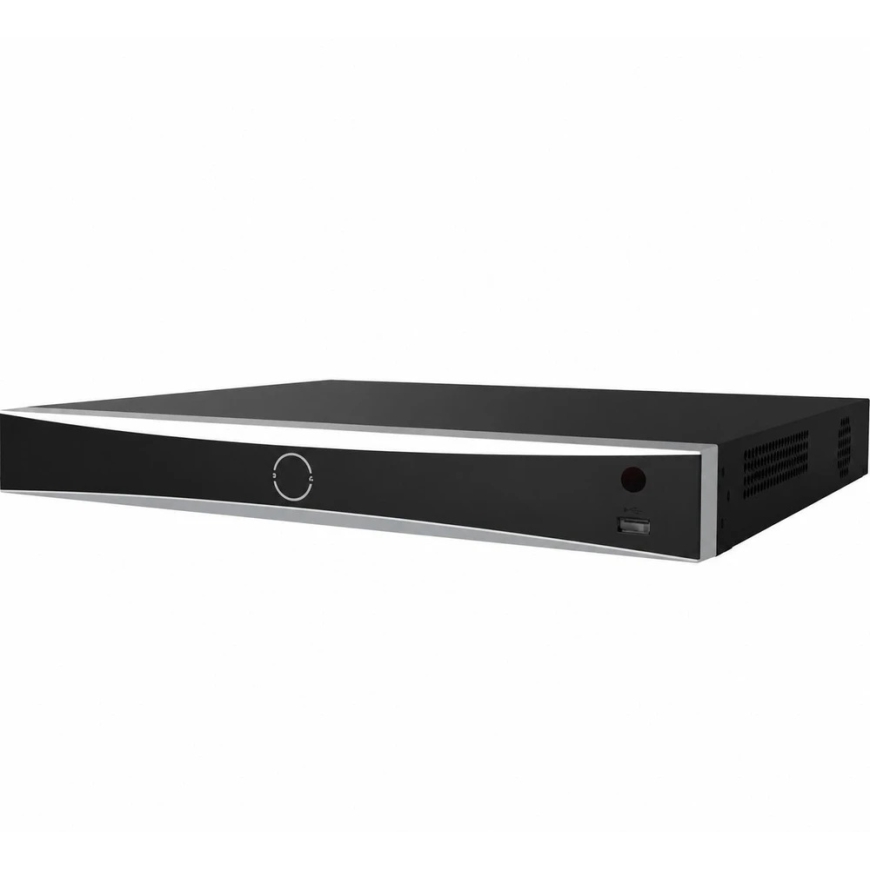

Miton IP registrar NT-NVR761F-H2

All about the product

IP RECORDER NT-NVR761F-H2 Model: NT-NVR761F-H2 Key Features: Supports up to 16 IP camerasRecording up to 12 MP resolutionIncoming and outgoing bandwidth 160 Mb/sFace recognition and support for up to 20,000 face imagesMotion detection 2.0 with human and vehicle classificationPerimeter protection with AI analysis4K HDMI output and independent VGA outputSynchronous playback up to 16 channelsUp to 2 SATA drives of 16 TB eachGigabit Ethernet interface with ONVIF, SDK, and ISAPI support Technical Specification Model NT-NVR761F-H2Number of supported IP cameras 16 channelsMax. recording resolution 12 MPR incoming bandwidth 160 Mb/sOutgoing bandwidth 160 Mb/sAI on deviceFace recognition, perimeter protection, motion detection 2.0AI from camerasFace recognition, perimeter protection, motion detection 2.0, ANPR, VCA, object removal detectionFace recognitionFace image comparison, registration, and searchFace libraryUp to 16 libraries, totaling up to 20,000 imagesFace analysis performance1 channel, 8 MPFace comparisonUp to 4 channelsMotion detection 2.0All channels from supported camerasPerimeter protection2 channels 4 MP analysis with human/vehicle classificationHuman/vehicle classificationYesHDMI output1 × HDMI, max. 4K 3840 × 2160 / 30 HzVGA output1 × VGA, max. 1920 × 1080 / 60 HzHDMI / VGA modeIndependent outputsSynchronous playbackUp to 16 channelsVideo compressionH.265+, H.265, H.264+, H.264Supported resolutions12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA and lowerAI decoding2 × 12 MP / 3 × 8 MP / 6 × 4 MP / 12 × 1080p, 30 fpsDecoding without AI2 × 12 MP / 4 × 8 MP / 8 × 4 MP / 16 × 1080p, 30 fpsStream typeVideo / Video + audioAudio compressionG.711ulaw, G.711alaw, G.722, G.726, AACAudi outputs1 × RCABi-directional audio1 × RCANetwork interface1 × RJ-45 10/100/1000 Mb/sRemote connectionsUp to 128ONVIFProfile S / GAPI / integrationONVIF, SDK, ISAPINetwork protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPSNumber of drives2 × SATAMax. disk capacityUp to 16 TB for each HDDMax. total HDD capacityUp to 32 TBUSB2 × USB 2.0, one at the front and one at the backAlarm inputs / outputs46026Power supply12 V DC, 3.3 APower consumption≤ 15 W without HDDOperating temperatureFrom -10°C to 55°COperating humidityFrom 10% to 90%Dimensions385 × 315 × 52 mmWeight≤ 1 kg without HDDPolish languageYesCertificatesCE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS
