Perfect results faster.
High power and high torque at low speeds – for hard materials and large thicknesses.
Comfort and safety
Easy operation is ensured by an ergonomic handle and guide rails inclined at a 30° angle. The integrated quick stop brake reduces the risk of injury.
Exceptional power and control

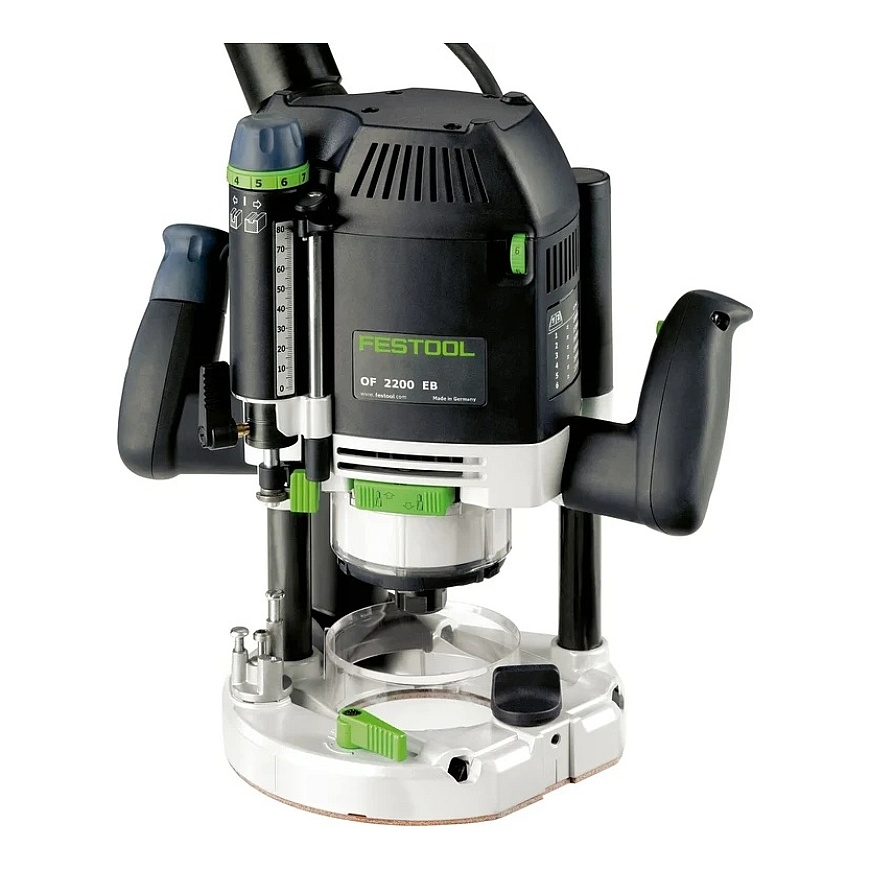

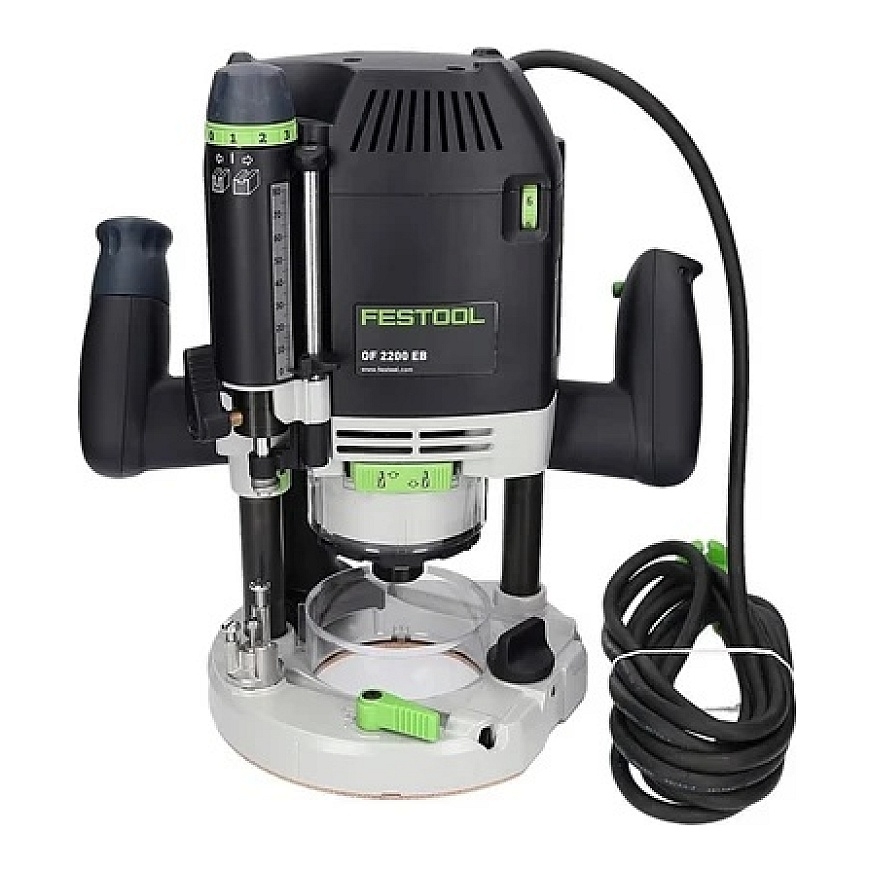

Stronger, simpler, more comfortable, and safer – the OF 2200 provides maximum precision, powerful milling, and ergonomic comfort. For example, guide rails inclined at a 30° angle ensure optimal power transfer. Whatever your task, with the OF 2200, the solution is always in your hands.
Powerful stroke
Electronic 2200 watt motor control ensures impressive milling power. Three-bearing spindle supports guarantee extremely low vibrations throughout the work.
Cleaner and healthier work

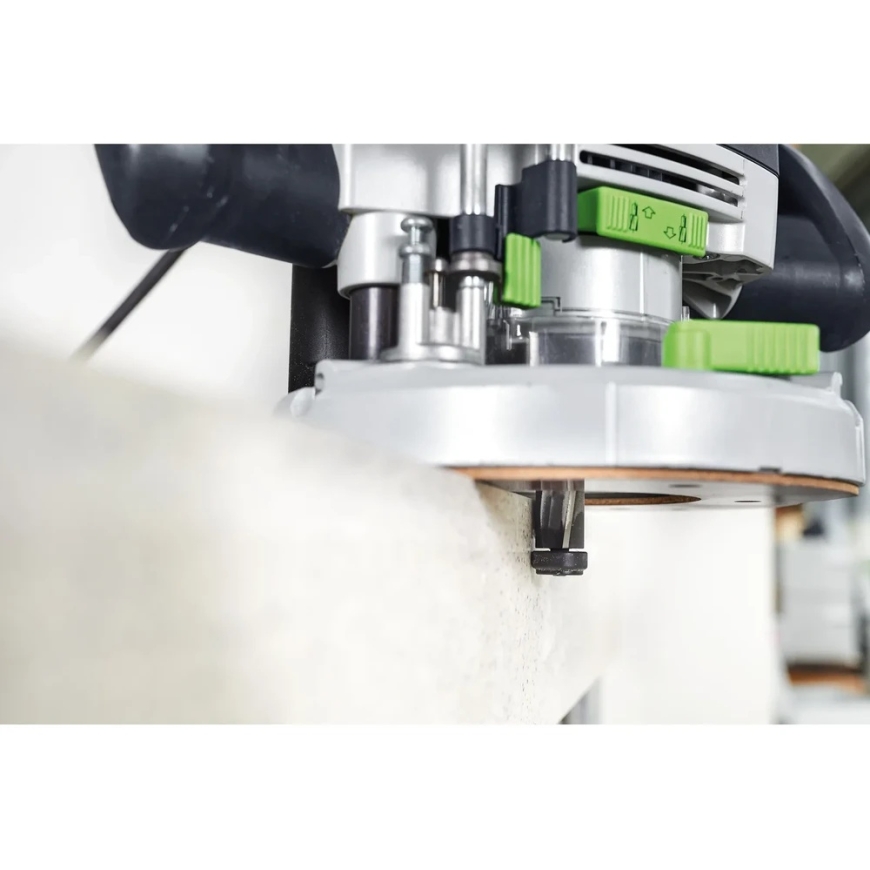

The innovative OF 2200 extraction system ensures up to 99% extraction efficiency. Along with the milling machine, the lowering extraction ring closes the space for shavings and is fixed above to keep the cutting area visible. The 360° rotatable chip collector ensures optimal suction efficiency.
Tool-free changes
The "FastFix" fastening allows for quick, tool-free changing of the OF 2200 base pads and copy rings. Similarly, the milling cutter can be changed conveniently – using the ratchet principle, where the inserted tool can be tightened or loosened without turning a wrench.
Excellent control

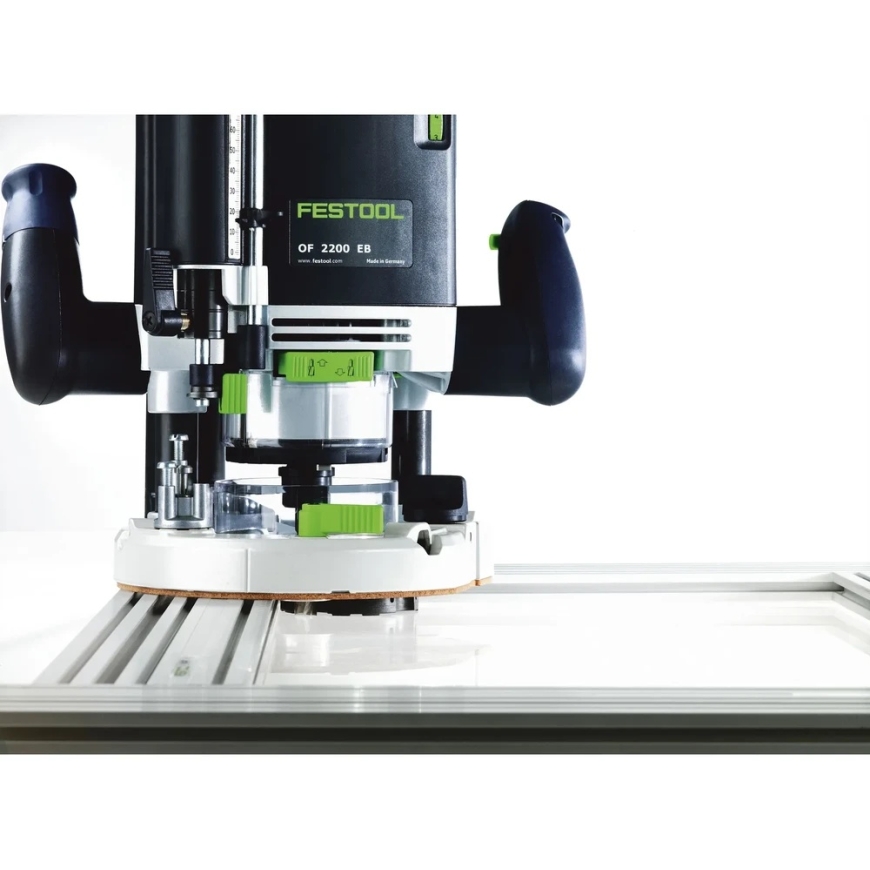

The guide rail developed and refined by "Festool" is designed for precise cutting of grooves and drilling holes in rows. With a smooth coating for easy pushing of tools and a groove for clamps.
Exceptional ergonomics
The 30° angled holder of the guide rails ensures an ergonomic working position when working with side and guide supports.
Accurate setting
The milling depth is adjusted with high precision – up to 1/10 mm, using a gapless setting system with a zero function. Soft handles and a pull indicator are ergonomically arranged for comfortable work.
Impeccable precision
Once the milling height is set, both vertical milling guide columns can be secured with a single hand movement. This double clamping ensures accurate milling results.
Advantage of using in a system
To achieve perfect results, "Festool" offers a wide range of HS and HW quality cutters.
Specification:
| Technical Data | |
| Power Consumption | 2200 W |
| Speed (no load) | 10,000 – 22,000 min⁻¹ |
| Clamp sleeve diameter | 6 – 12.7 mm |
| Milling stroke | 80 mm |
| Accurate milling depth setting | 20 mm |
| Hole in support plate | 89 mm |
| Dust vacuum hose connection diameter | 36 / 27 mm |
| Cable length | 4.0 m |
| Weight without accessories | 8.30 kg |
| Transport weight with accessories | 11.73 kg |
| Drive Type | Electric network |
| Package Contents | |

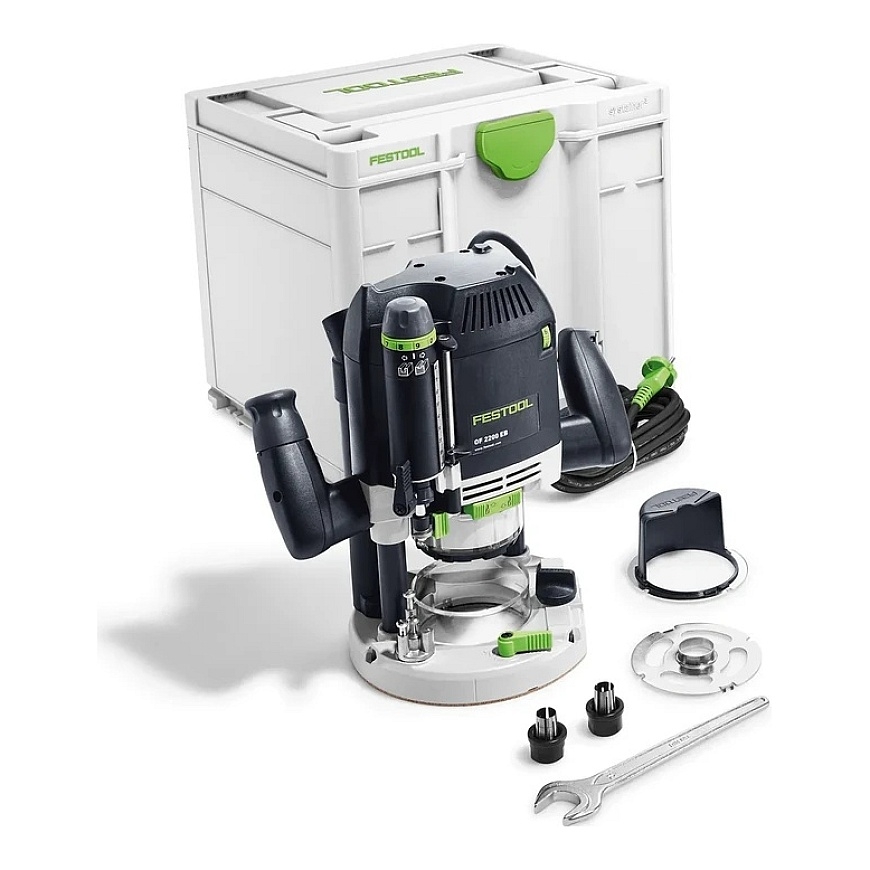

| Accessories | Clamping ring SZ-D 8.0/OF 1400/2000/2200 Clamping ring SZ-D 12.0/OF 1400/2000/2200 Copying ring KR-D 30.0/OF 2200 Chip collector KSF-OF 2200 Wrench SW 24 Systainer SYS3 M 337 |
| Noise and Vibration Data | |
| Vibration uncertainty (K) | 1.50 m/s² |
| Noise uncertainty (K) | 1.50 dB |
| Overall weighted vibration value (ah) | 2.50 m/s² |
| Applicable standard | EN 62841 |
| Sound pressure level Lp (A) | 96.0 dB(A) |
| Sound power level Lw (A) | 104.0 dB(A) |
