Peladn G2E Thunderbolt 5 docking station (gray)

All about the product

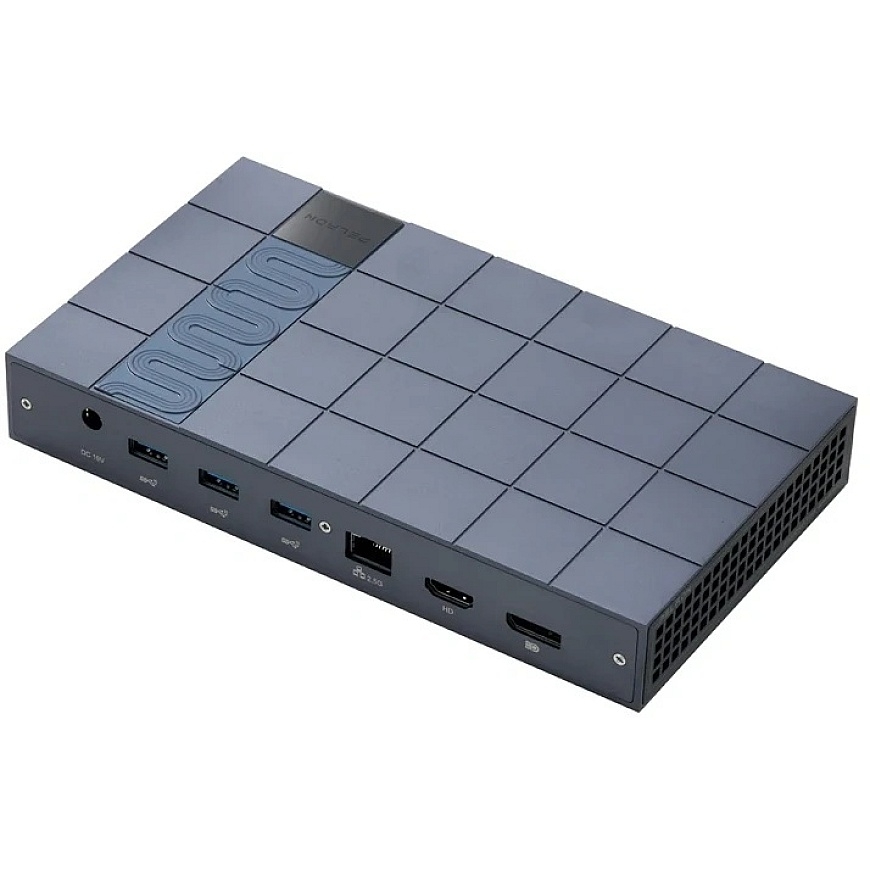

„Peladn G2E Thunderbolt 5“ docking station (gray)

The "Peladn G2E Thunderbolt 5" is an advanced docking station that significantly expands the capabilities of modern laptops and desktops. It offers up to 120 Gb/s bandwidth, supports two 8K monitors or a three-screen configuration, fast 140 W Power Delivery charging, a 2.5 G Ethernet port, and the ability to expand storage using an M.2 2280 PCIe 4.0 x4 drive. Other important advantages include smart RGB lighting and a wide array of 13 ports that allow multiple devices to be connected simultaneously.

Exceptionally fast data transfer and 8K monitor support

The dock uses Thunderbolt 5 technology, providing up to 120 Gb/s asymmetric bandwidth and up to 80 Gb/s bidirectional symmetrical bandwidth. Such high performance allows for effective management of several devices simultaneously, transferring large files, and using advanced applications that require fast connectivity between devices. The "Peladn G2E" also allows working with two 8K monitors or a configuration with three extended screens. With HDMI 2.1, DisplayPort 2.1, and Thunderbolt 5 ports, you can create a comprehensive workstation for creative work, programming, data analysis, or entertainment.

High resolution and smooth visuals

This station allows you to unleash the full potential of modern high-resolution monitors with high refresh rates. Devices with Thunderbolt 5 can support a single screen with 8K resolution at 60 Hz or 4K resolution at 240 Hz via Thunderbolt, HDMI 2.1, and DisplayPort 2.1 ports. When working with two monitors, both screens can display 8K resolution at 60 Hz or two 4K monitors simultaneously at 240 Hz. On computers with Thunderbolt 4, the dock supports one 8K 60 Hz or 4K up to 240 Hz monitor via HDMI, as well as supporting two monitors up to 2 × 4K 60 Hz resolution.

Storage expansion, high-speed network, and 13 expansion ports

The dock features an M.2 2280 slot with a PCIe 4.0 x4 interface, allowing for the installation of an additional SSD drive with a capacity of up to 8 TB. The integrated 2.5 G Ethernet RJ45 port offers up to 2.5 Gb/s data transfer speeds, which is 2.5 times greater bandwidth than standard gigabit Ethernet ports. Users can also take advantage of 13 expansion ports, including DisplayPort 2.1, HDMI 2.1, USB-A 3.2 Gen 2, Thunderbolt 5 ports, SD 4.0 and TF 4.0 card readers, and a headphone/microphone jack. This allows for convenient connection of monitors, storage devices, audio equipment, and many other accessories.

140 W charging and wide compatibility

The Thunderbolt 5 port supports up to 140 W Power Delivery charging, meaning you can work and charge your laptop simultaneously using one cable. The dock is compatible with devices using Thunderbolt 5, Thunderbolt 4, USB4, and USB-C. It supports Windows 11 23H2 or later and macOS 14.5 or later. The manufacturer has also included a special mode that extends the functionality of "Mac mini" computers with Apple Silicon M4 and M4 Pro chips.

Smart RGB backlighting

The integrated RGB strip allows you to customize the dock's appearance according to your preferences. The touch panel enables switching between various backlighting modes, including solid illumination and a breathing effect in multiple colors. If necessary, the backlighting can also be completely turned off.
