The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

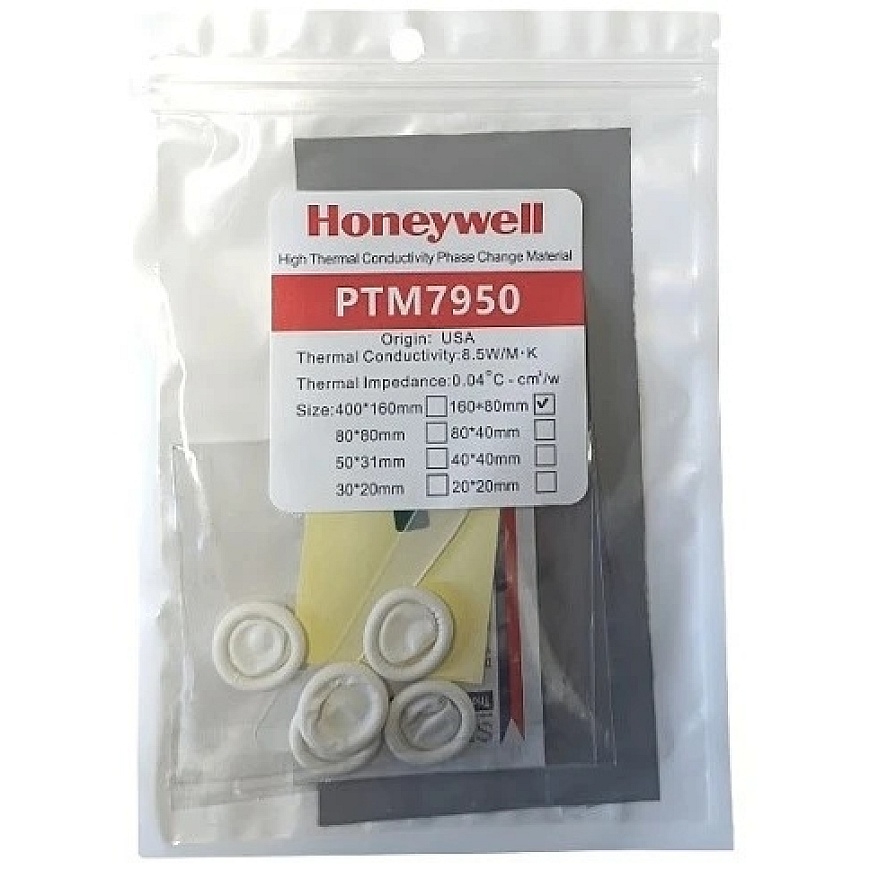

HONEYWELL PTM7950 Thermo Pad 80x160x0.2mm
5034230 NC032814
9990001032814
Shipping 5-8 b.d.
All about the product
Honeywell PTM7950 thermal pad, 80x160x0.2mm
Features:
The Honeywell PTM7950 thin phase change thermal pad is designed for use between the processor or graphics chip and the cooler. It ensures efficient heat transfer, low thermal contact resistance, and long-lasting cooling efficiency even under high thermal loads.
The thermal pad is made of a phase change material (PCM) developed by Honeywell, based on a polymer matrix with thermally conductive fillers. At room temperature, the material remains solid, making it easy to cut, place, and precisely position on the component. Once the operating temperature reaches about 45°C, the material softens, fills microscopic surface irregularities, and forms a thin, cohesive thermal contact layer that reduces thermal contact resistance.
The robust polymer structure helps the material remain in contact during operation. It is not prone to extruding at the edges due to temperature fluctuations and the cyclical heating and cooling of the device. As a result, stable thermal resistance and consistent cooling performance are maintained longer.
The sheet-form thermal pad offers convenient and clean use: it does not require spreading or application like thermal paste, reducing the risk of uneven layers and excess material.
The best heat transfer is achieved after several full heating and cooling cycles when the phase change material fully adapts to the contact surfaces.
The Honeywell PTM7950 thermal pad is particularly recommended for gaming and high-performance laptop processors and graphics chips, where thermal loads and temperature cycles are most intense, and the cooling system operates in confined spaces. It can also be used for desktop computer processors, graphics chips on video cards, gaming consoles, and other electronics where effective, precise, and long-lasting heat transfer to the cooler is required.
Specifications:
Thermal conductivity: 8.5 W/Mk.
Thermal resistance: 0.04 °C·cm²/W.
Operating temperature range: 0-125°C.
Dimensions: 80x160 mm.
Thickness: 0.2 mm.
All necessary tools for installation are included in the package.
