ELEKTROBOCK EMF-1 energy consumption meter

All about the product

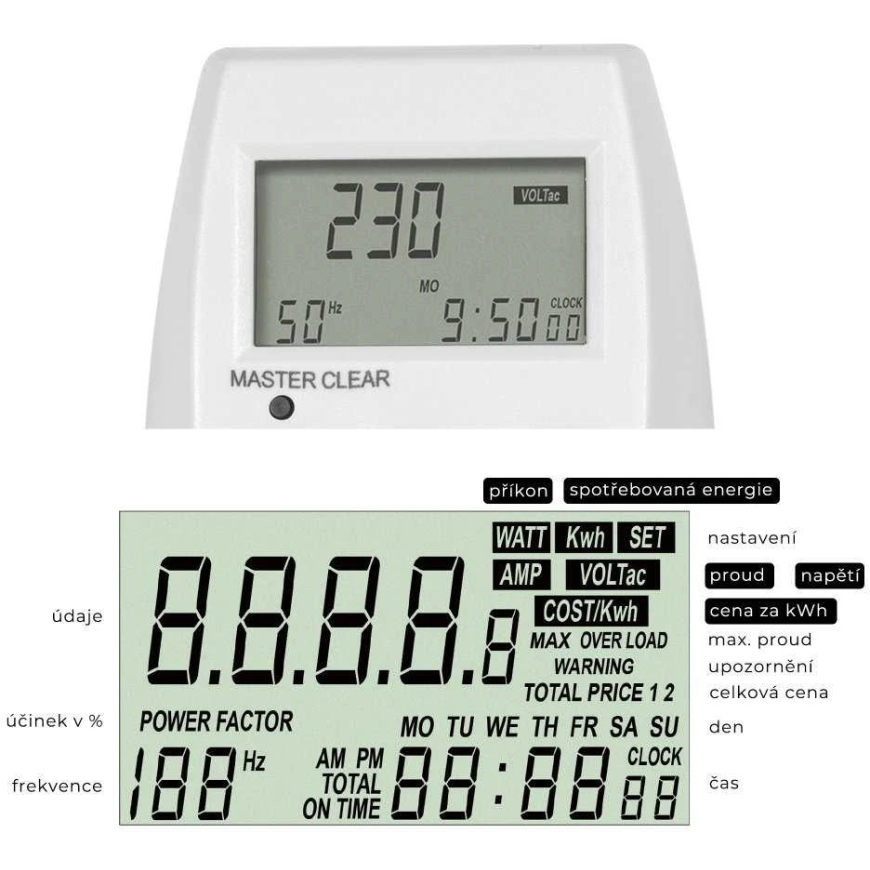

By entering the price per kWh, the device will display the total consumption of the connected device over the entire connection period. EMF-1 features: It is one of the most accurate devices of its kind. It is so sensitive that it even records the consumption of a heating candle. Among other variables, it shows voltage, current up to 16 A, cos ? (for accurate energy consumption calculation). It calculates the consumed energy over a period of up to 9999 days and a maximum of 9999.9 kWh and converts it into a monetary amount in EUR. The consumption price can be set with two rates according to time (NT and VT). The backup batteries (replaceable) allow data and settings to be stored for more than 3 months. Measurement accuracy is ±1%. The socket has child protection. EMF-1 advantages: Displays current time, network voltage and frequency, device current and energy consumption, power factor. Records maximum energy consumption and energy usage during the connection period. It is possible to set 2 tariffs (two different prices for specific hours/days). The meter's accuracy is specified in the table but is not officially verified and guaranteed, as is the case with electric meters. Therefore, consider measured values only as an indicative consumption gauge. Technical specifications Power supply 230 V / 50 Hz Imax 16 A, 3600 W Measurement voltage range from 190 VAC to 276 VAC (with +/-1% accuracy). Measurement current range from 0 A to 16 A (with +/-1% accuracy). Measurement power range from 0 W to 4416 W (with +/-1% accuracy). Energy consumption display from 0 kWh to 10000 kWh. Accuracy +/- 1 min/month. Consumption 0.5 VA Backup battery power Yes (3x1.5 V, LR44/AG13). Backup battery operation time 3 months (when not connected to the power grid). Operating temperature from -10 °C to 40 °C
