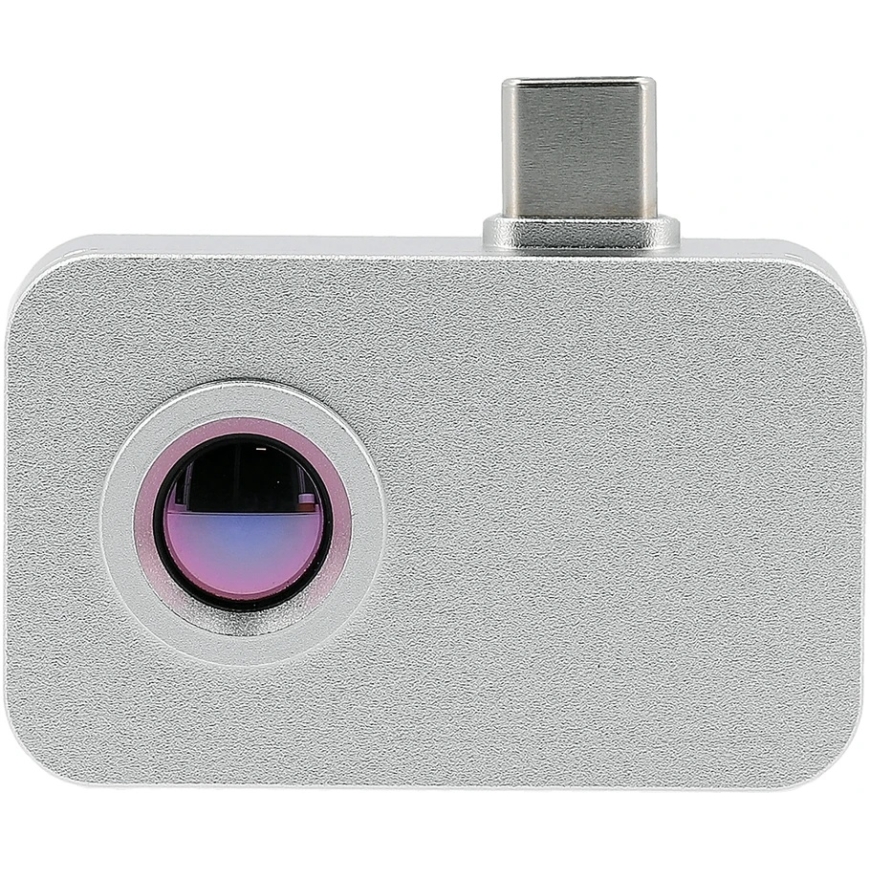

The miniature thermal camera is designed for Android devices and connects via a USB-C port. This model is suitable for electrical installation inspections, identifying overheating connections, searching for thermal bridges and heat losses in buildings, servicing HVAC equipment, industrial and preventive inspections, car diagnostics, and thermal testing of electronics.

The device features a 256 x 192 px VOx microbolometer sensor, and thanks to Super Resolution technology, the effective resolution is increased to 512 x 384 px. A 25 Hz video refresh rate ensures smooth monitoring of thermal changes, while the detachable macro lens accessory allows for viewing the thermal changes of small electronic components.

More measurement and diagnostic solutions can be found

Technical Specifications

• Type: miniature thermal camera


• Sensor type: VOx microbolometer


• Sensor resolution: 256 x 192 px


• Effective resolution with Super Resolution: 512 x 384 px


• Pixel size: 12 µm


• Thermal sensitivity NETD: ≤50 mK at 25 °C


• Spectral range: 8–14 µm


• Focal length: 3.2 mm, fixed focus


• Field of view: 56° x 42°


• IFOV: 3.75 mrad


• Video refresh rate: up to 25 Hz


• Temperature measurement range: from -15 °C to +550 °C


• Temperature measurement accuracy: ±3 °C from -15 °C to -10 °C, ±2 °C or ±2 % from -10 °C to +550 °C


• Working distance: 0.25–5 m


• Measurement modes: point, linear, area


• Color modes: 10


• Recording formats: JPG, MP4


• Power supply: USB-C, 5 V DC


• Power: ≤0.35 W


• Dimensions: 45 x 36.7 x 15.4 mm


• Weight: 15 g


• Operating temperature: from -10 °C to +75 °C


• Storage temperature: from -45 °C to +85 °C


• Relative humidity: 10–85 % RH


• Menu languages: Polish, English, Ukrainian, Russian

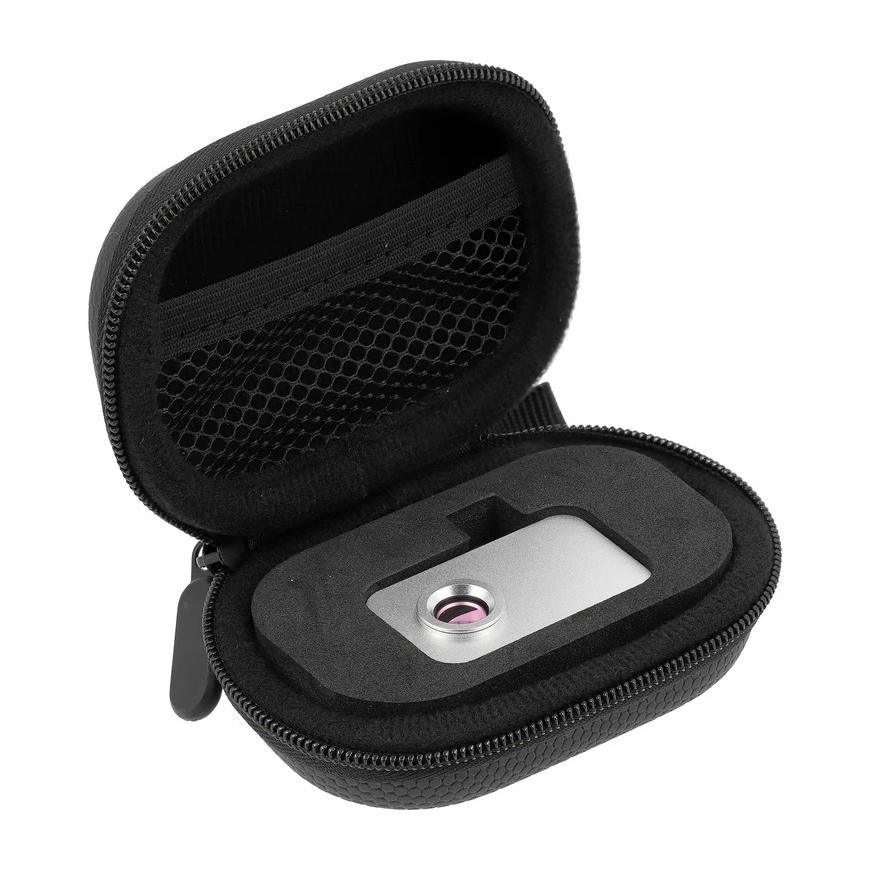

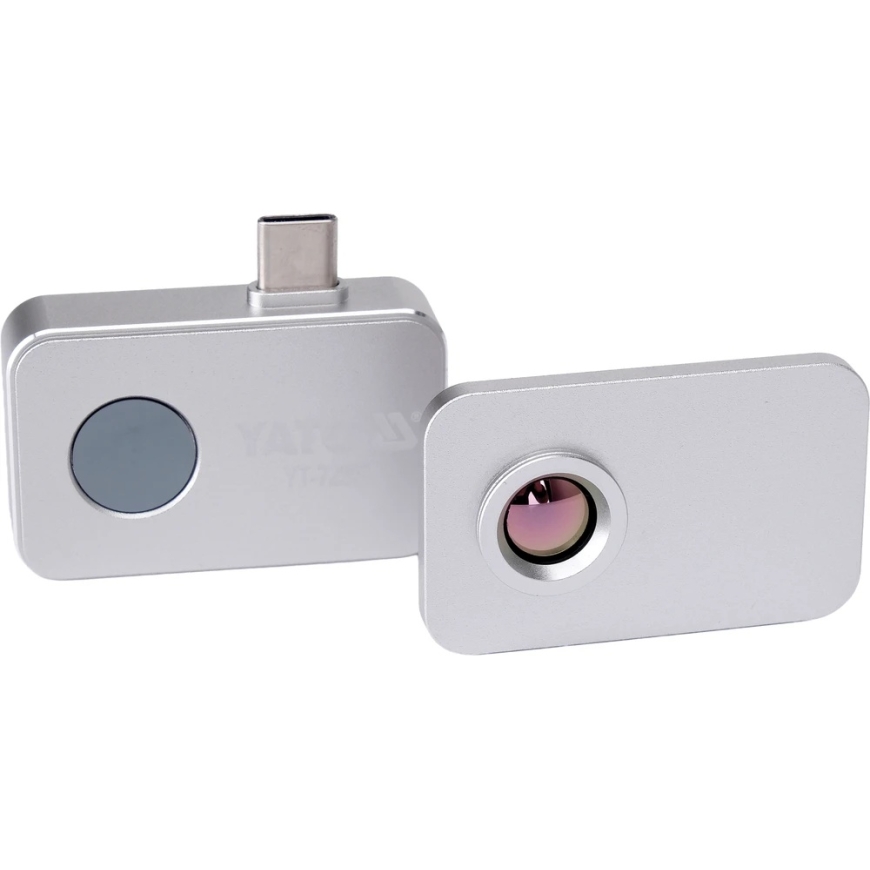

• Additional features: detachable macro lens accessory, functionality via a special Android application


• Brand: YATO


• Product code: YT-72931
