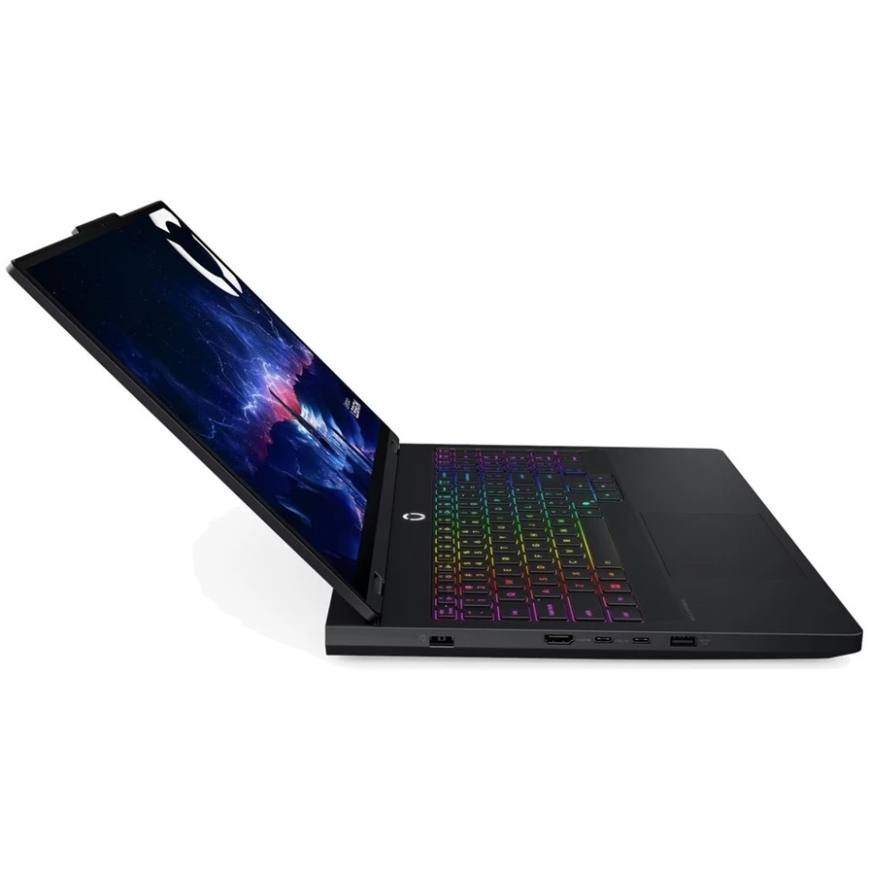

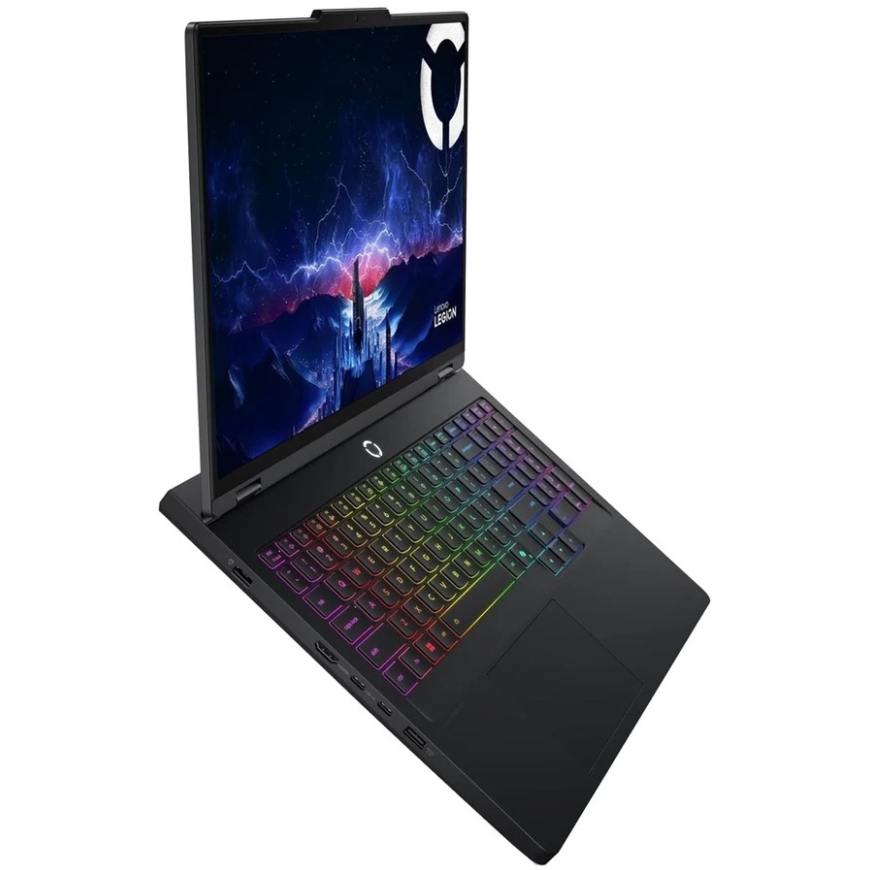

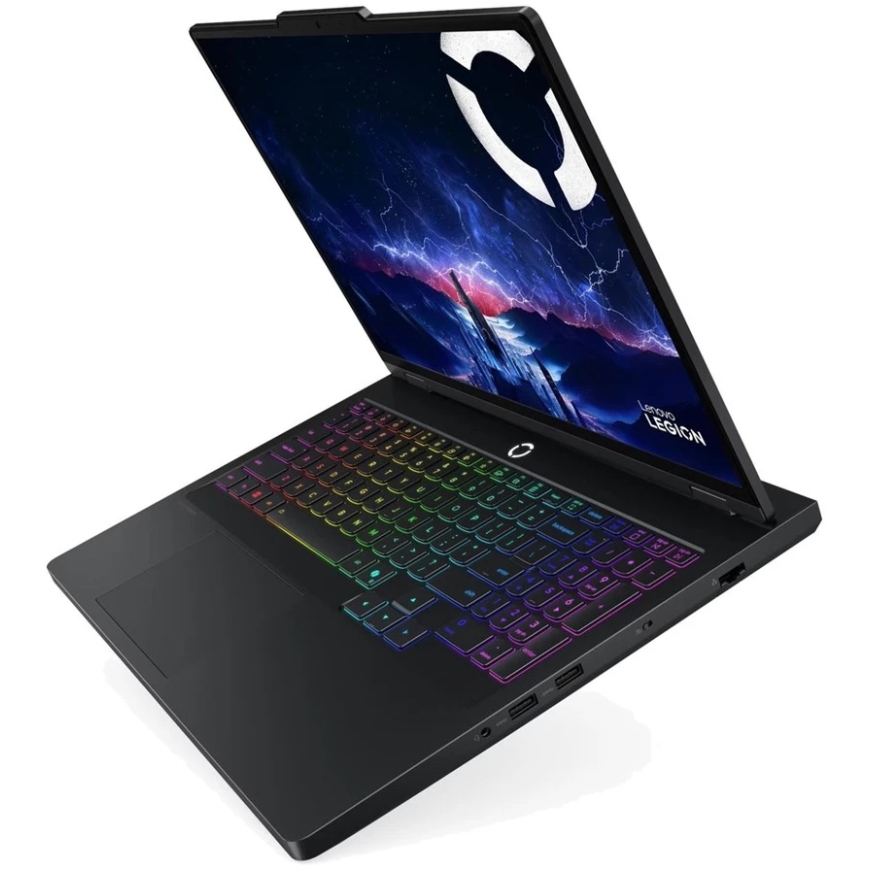

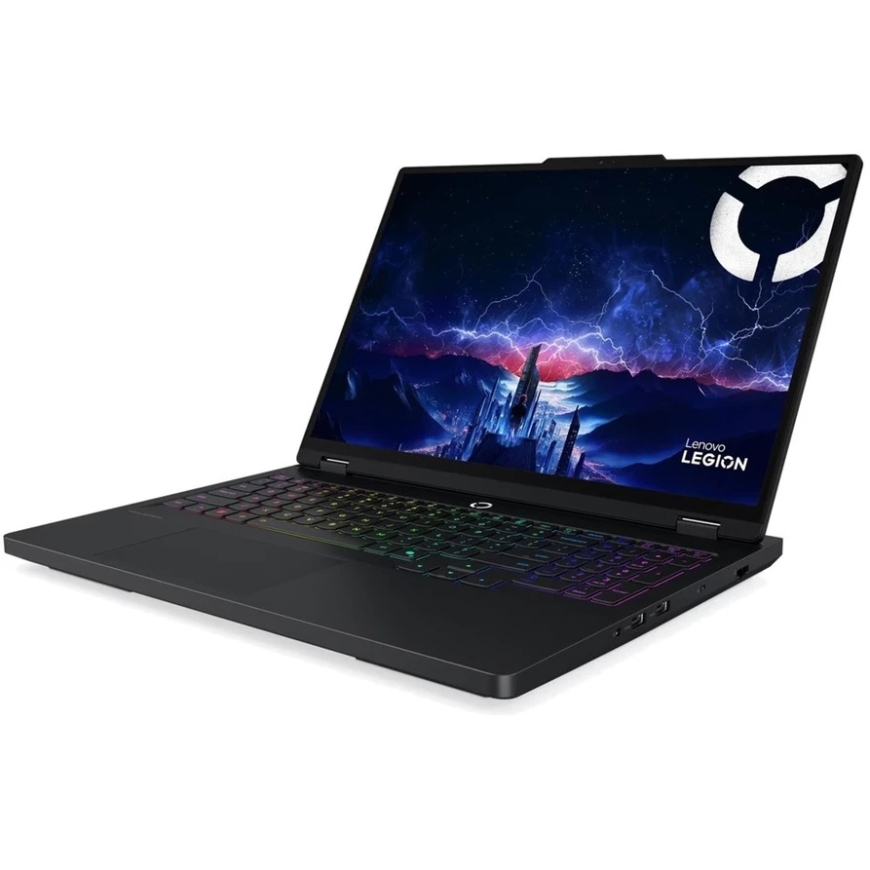

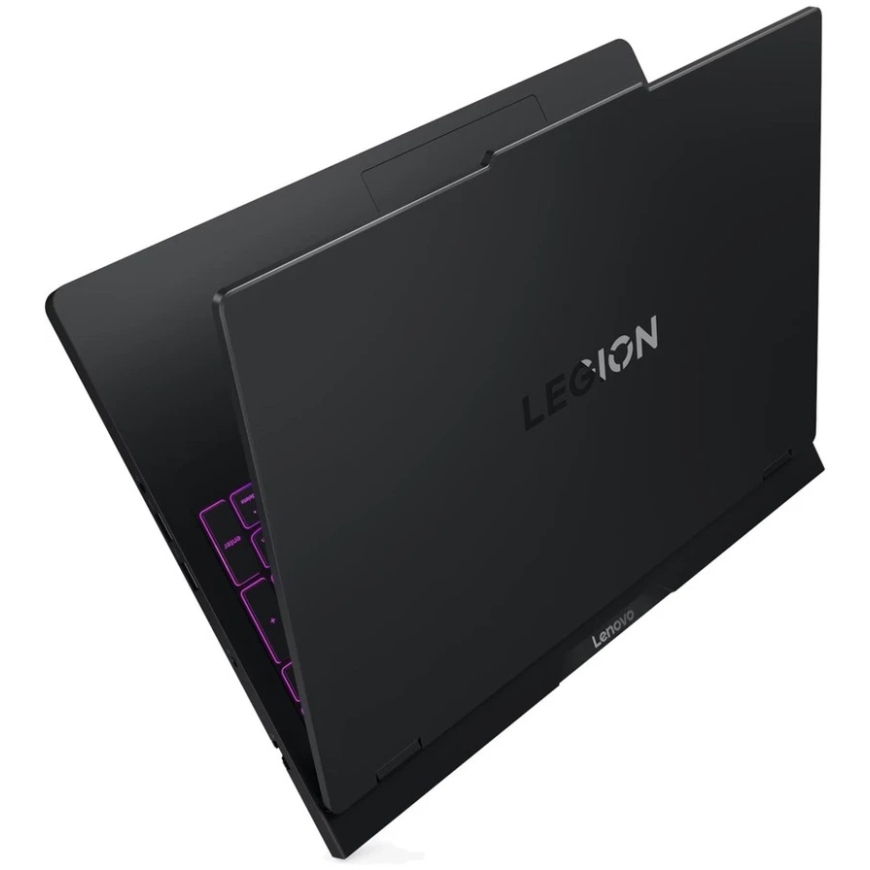

Lenovo Legion Pro 5 16IAX10 Intel Core Ultra 7 255HX Laptop

All about the product

Processor :

Effective cores max turbo frequency: 4.5 GHz

Performance cores max turbo frequency: 5.2 GHz

Effective cores base frequency: 1.8 GHz

Processor boost frequency: 5.2 GHz

Performance cores: 8

Processor cores: 20

Effective cores: 12

Processor model: 255HX

Processor cache: 30 MB

Processor family: Intel Core Ultra 7

Processor threads: 20

Base processor power: 55 W

Processor manufacturer: Intel

Performance cores base frequency: 2.4 GHz

Processor generation: Intel Core Ultra (2nd generation)

Max turbo power: 160 W

Graphics :

Integrated graphics model: Intel® Graphics

Dedicated graphics memory: 8 GB

Integrated graphics manufacturer: Intel

Dedicated graphics memory type: GDDR7

Integrated graphics: Yes

Integrated graphics family: Intel® Graphics

Dedicated graphics model: NVIDIA GeForce RTX 5070

Dedicated graphics: Yes

Memory :

Memory clock frequency: 5600 MHz

Memory form factor: SO-DIMM

Internal memory type: DDR5-SDRAM

Memory configuration (slots x size): 1 x 16 GB

Internal memory: 16 GB

Max internal memory: 32 GB

Design :

Color name: Eclipse Black

Case material: Acrylonitrile Butadiene Styrene (ABS), Aluminum, Polycarbonate (PC)

Product type: Laptop

Product color: Black

Power :

USB power delivery (USB PD): Yes

AC adapter power: 245 W

USB Type-C charging port: Yes

Security :

Trusted Platform Module (TPM) version: 2.0

Fingerprint reader: No

Trusted Platform Module (TPM): Yes

Weight and Dimensions :

Height (front): 2.17 cm

Width: 364.4 mm

Height (rear): 2.6 cm

Weight: 2.43 kg

Depth: 268.1 mm

Network :

Ethernet LAN data transfer rate: 1000 Mbit/s

Highest Wi-Fi standard: Wi-Fi 7 (802.11be)

Mobile network connection: No

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

WWAN: Not installed

Ethernet LAN: Yes

Antenna type: 2x2

Bluetooth: Yes

Performance :

Motherboard chipset: Intel HM870

Package Contents :

AC adapter included: Yes

Display :

Touchscreen: No

Aspect ratio: 16:10

RGB color space: DCI-P3

Screen surface: Glossy

Screen brightness: 500 cd/m²

HD type: WQXGA

Maximum refresh rate: 165 Hz

High Dynamic Range (HDR) technology: Dolby Vision

Screen resolution: 2560 x 1600 pixels

Supports High Dynamic Range (HDR): Yes

Panel type: OLED

Color gamut: 100%

Screen diagonal: 40.6 cm (16")

LED backlight: Yes

Software :

Pre-installed operating system: No

Audio :

Speaker power: 2 W

Integrated microphone: Yes

Number of microphones: 2

Number of built-in speakers: 2

Audio chip: Realtek ALC3306

Storage :

SSD form factor: M.2

Total storage capacity: 512 GB

Storage medium: SSD

SSD capacity: 512 GB

NVMe: Yes

SSD interface: PCI Express 4.0

Integrated card reader: No

Number of installed SSDs: 1

Total SSD capacity: 512 GB

Optical drive type: No

Ports and Interfaces :

Number of USB Type-C ports: 2

USB sleep-and-charge function: Yes

Number of Thunderbolt 4 ports: 1

Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1

Ethernet LAN (RJ-45) ports: 1

HDMI version: 2.1

Combined headphone/microphone port: Yes

Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1

Number of HDMI ports: 1

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2

Camera :

Front camera resolution (digital): 5 MP

Battery :

Battery capacity: 80 Wh

Keyboard :

Keyboard backlighting zone: 24-zone RGB

Pointing device: Touchpad

Numeric keypad: Yes

Keyboard backlighting color: RGB

Keyboard backlighting: Yes

Neural Processing Unit (NPU) :

Neural Processing Unit (NPU): Intel AI Boost

NPU performance up to: 13 TOPs
