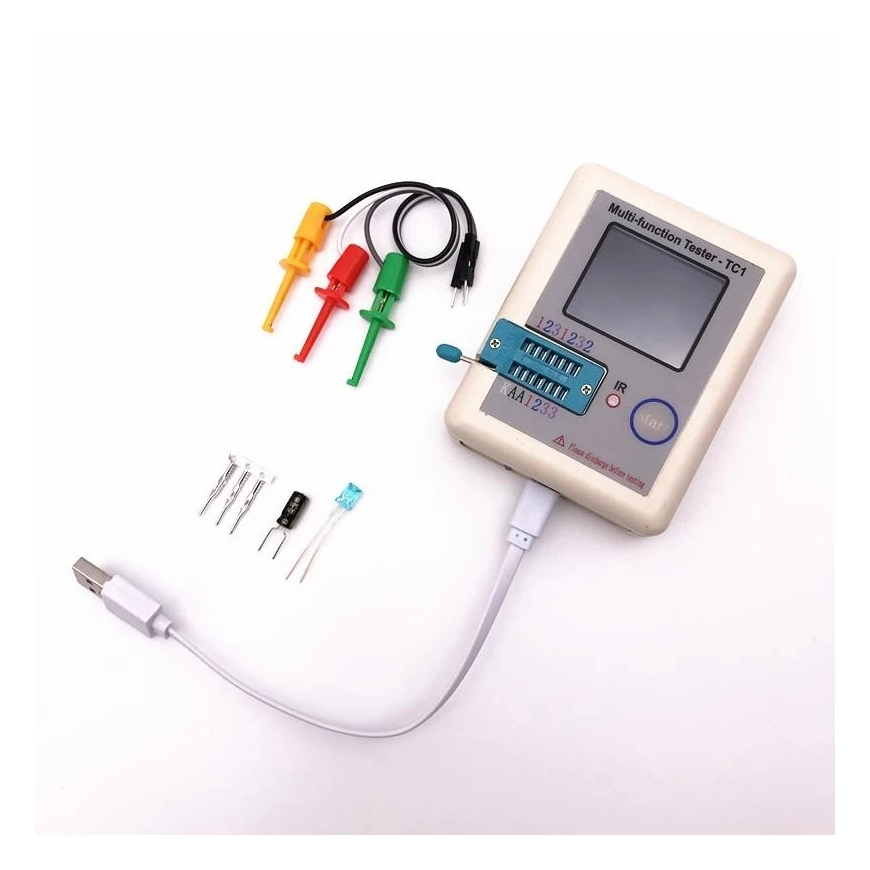

Oem TC1 Multifunctional LCR Tester
5031910 AS0361
4779044515714
Shipping 6-11 b.d.
All about the product
The electronic component tester with a large color display will successfully help you test diodes, resistors, transistors, coils, capacitors, etc. It can be used to test NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs, and batteries. The tester also detects infrared IR waves and Zener diodes.
With this meter, you can check most components used in electronics. A must-have for a DIY workshop with very simple controls. Just insert the component to be tested and press the START button, and the meter will automatically take measurements. Once it knows the type of component, it will display information describing the component, e.g., for a resistor, it will show the resistance value.
Specifications:
- The transistor tester will measure:
- NPN, PNP, MOSFET, N-channel and P-channel, JFET channel
- Thyristors,
- SCRs
- Resistors,
- diodes, Zener diodes
- coils,
- capacitors (discharge before measuring)
- and others
- Resistance (resistor): 0.01 - 50MΩ
- Capacitance (capacitor): 25pF - 100mF
- Inductance (coil): 0.01 mH - 20H
- Zener diode range:
- in terminals K A: 0.01 - 30 V
- in terminals: 1 2 3: 0.01 - 4.5 V
- Triac and thyristor range: IGT <6mA
- Transistor detection range: 0.01 - 4.5 V
- Display: 1.8 inch TFT display
- Power supply: battery, lithium battery 0.1 - 4.5 V
- Testing speed: approximately 2–10 seconds
- When measuring large capacitance capacitors, testing may take up to 1 minute
- Automatic shutdown after 20 seconds (power-saving feature)
- Measuring ESR coefficient for capacitors greater than 2uF
- Dimensions: 90 x 70 x 27 mm
- Weight: 96 g
