IP CAMERA KENIK KG-8G60TAS-ILCD-V2
259.00 €
Monthly payment from 7,57 €
5031110 KG-8G60TAS-ILCD-V2
5903716301711
Shipping 8-10 b.d.
You are interested in this product?
All about the product

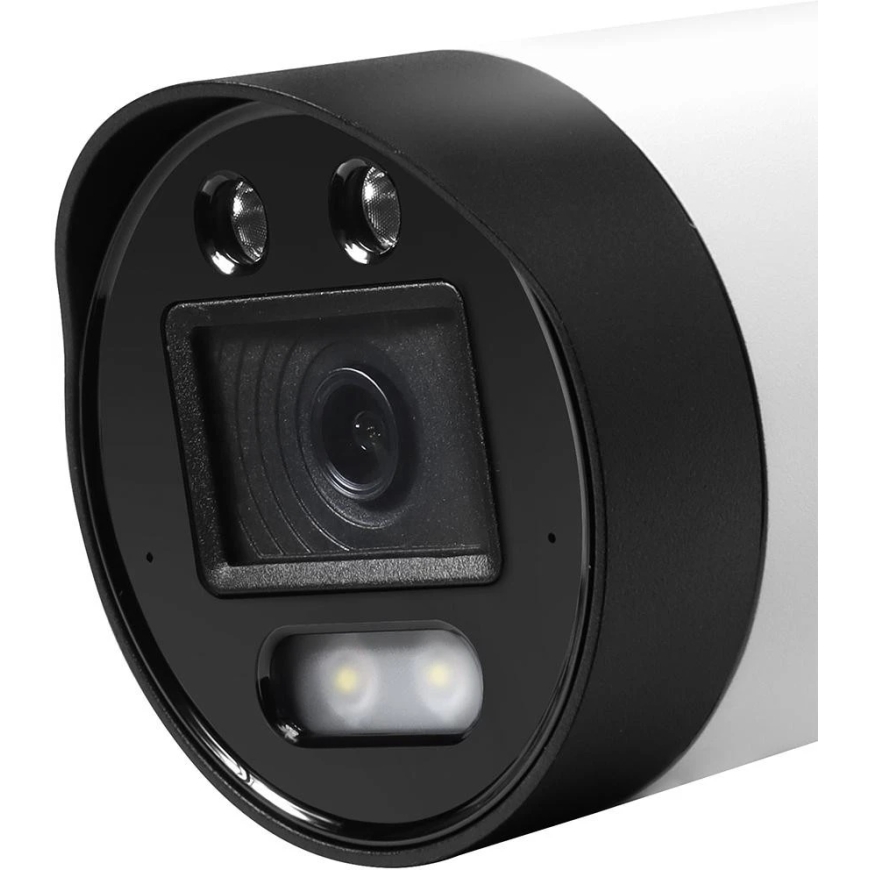

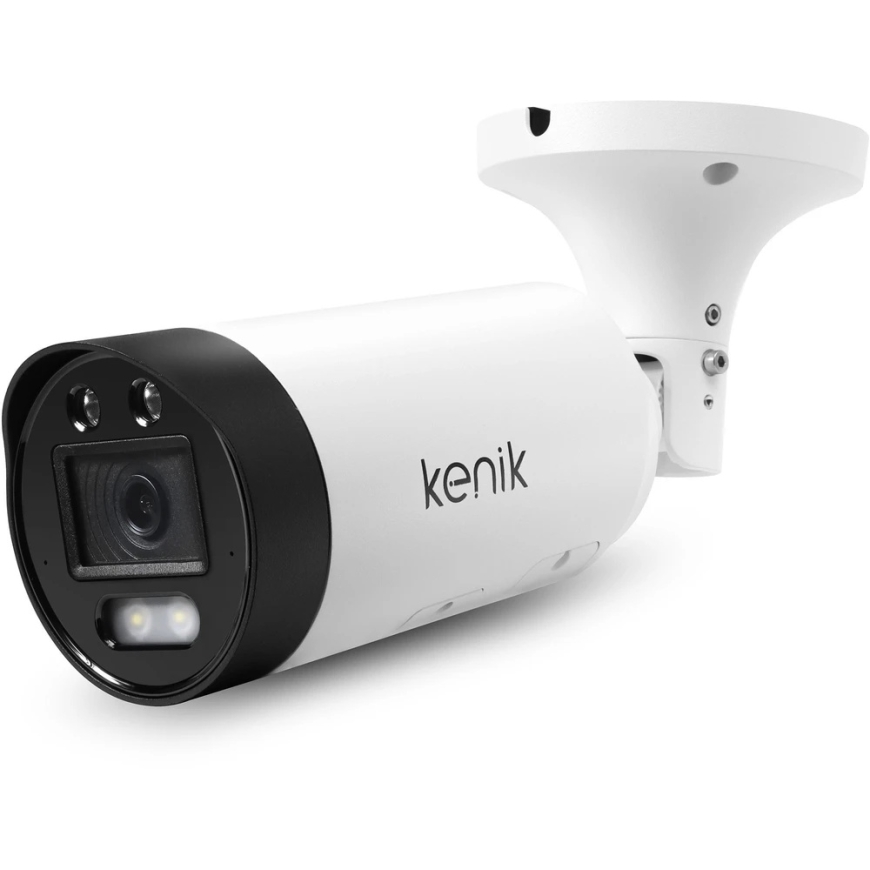

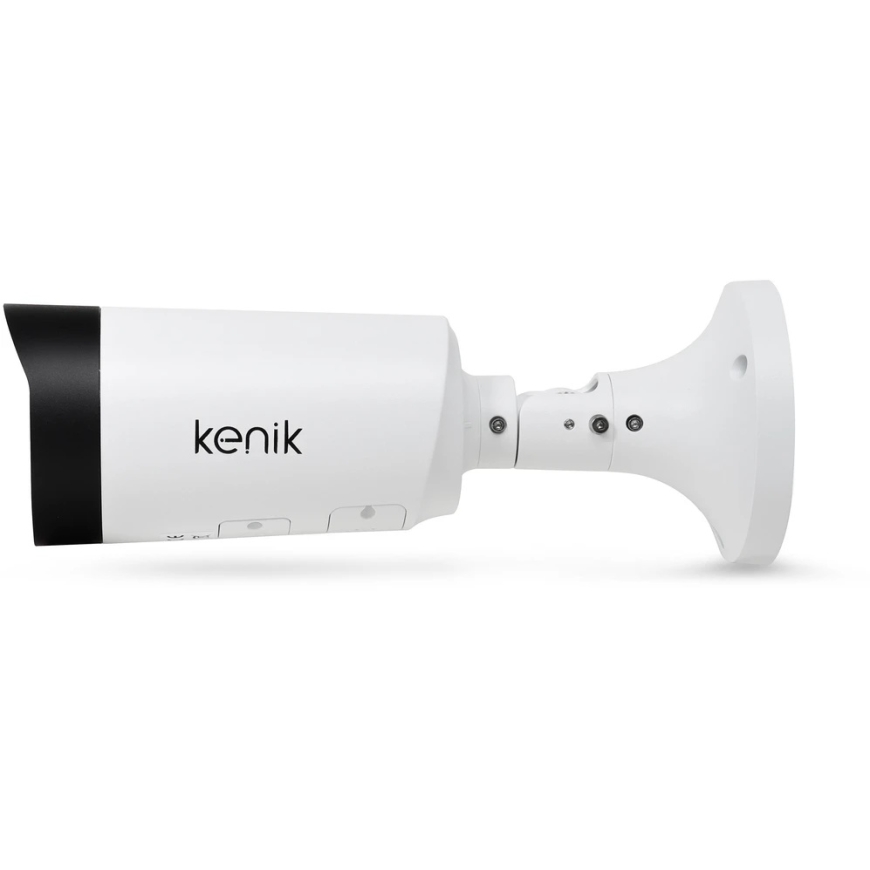

IP CAMERA KENIK KG-8G60TAS-ILCD-V2
Model: KG-8G60TAS-ILCD-V2
Main Features:
- Resolution 8MPX (3840x2160) at 25 fps
- Sensor 1/1.8"
- Compression H.265+/H.264+
- WDR (130dB) , day/night (ICR), 3DNR, AWB, AGC, BLC
- Lens 2.8mm (F1.0)
- AI-ISP GeckoVu technology
- Color image at night (Color Night Vision 3.0)
- Built-in dual microphone
- Active deterrence (siren + red-blue LEDs)
- IR illumination + LED up to 60m / 50m
- MicroSD card reader up to 512GB
- Intelligent video analysis IVS (SMD+P.P. 2.0), people counting, face detection
- ROI function
- Reset button
- Hive mode
- alarm in/out 1/1
- audio in/out 1/1
- Dual power supply 12V DC / PoE (802.3af)
- Protection class IP67
- Supports ONVIF 2.6 standard
- Mobile viewing via smartphone (Android, iPhone)
- Free software in Lithuanian for computer recording
Purpose
The camera is designed for outdoor use. The housing allows for mounting the camera on both ceilings and walls. The camera is suitable for monitoring: parking lots, stadiums, halls, squares, government agencies, schools, etc.
Technical Specification
| Camera | |
| Model | KG-8G60TAS-ILCD-V2 |
| Sensor | 1/1.8" |
| Min. illumination | Color: 0.0005 Lux (F1.0, AGC ON), 0 Lux with illumination |
| Light source range | 60m IR illumination / 50m LED illumination |
| Strobe light | No |
| Smart IR | Yes |
| Lens | |
| Focal length | 2.8 mm |
| Aperture | F1.0 |
| Field of view (FOV) | Horizontal: 108°, Vertical: 59°Diagonal: 130° |
| Mounting | M16 |
| Compression standards | |
| Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| H.264 codec profile | Baseline/Main/High |
| H.265 codec profile | Main |
| Bit rate | 11 Kb/s ~ 16 Mb/s |
| Three streams | Yes |
| Audio compression | G.711A, G.711U |
| Audio bit rate | 64 Kbps |
| Image | |
| Maximum resolution | 8MP(3840 × 2160) |
| Main stream | 50Hz: 25 fps 8MP ( 3840 × 2160 ) , 25 fps 6MP ( 3200 × 1800 ) , 25 fps 5MP ( 3072 × 1728 ) 25 fps 4MP ( 2560 × 1440 ) , 25 fps 1080P(1920 × 1080)60Hz: 30 fps 8MP ( 3840 × 2160 ) , 30 fps 6MP ( 3200 × 1800 ) , 30 fps 5MP ( 3072 × 1728 ) 30 fps 4MP ( 2560 × 1440 ) , 30 fps 1080P ( 1920 × 1080 ) |
| Additional stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video settings | Brightness/Contrast/Saturation/Hue/Sharpness |
| Shutter speed | Automatic/manual, 1/3~1/100000s |
| Day/night | IR filter |
| WDR | 130 dB |
| DNR | 2D/3D DNR |
| BLC | Yes |
| HLC | Yes |
| ROI | Yes |
| Video rotation | Yes |
| Video analysis features | |
| Events | Motion detection (person/vehicle/motorcycle), Video obstruction |
| Intelligent features | Line crossing, Intruder detection, Entering area, Exiting area (person/vehicle/motorcycle), Loitering detection, scene change detection |
| People counting | Yes |
| Face detection | Yes |
| DORI | |
| DORI | [email protected] , D:80m,O:32m,R:16m,I:8m |
| Network | |
| Network storage | NAS ( NFS, SMB/CIFS ) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| Supported standards | Onvif ( profile S, G, T ) , SDK |
| Security | Password protection (8-character password required), HTTPS encryption, IP address filtering, main and sub HTTP/HTTPS, TLS version 1.1/1.2, WSSE and basic authorization for ONVIF protocol |
| User | Plugin required for live view: IE 10, IE 11Live view without plugins: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+ |
| Number of users | Up to 40 users |
| Phone support | IOS, Android |
| Active deterrence | |
| Blue-red LEDs | Yes |
| Siren | Yes |
| Interface | |
| LAN interface | 10 M/100 M |
| MicroSD card | up to 512GB |
| Microphone | Yes x2 |
| Speaker | Yes |
| Audio in/out | 1/1 |
| Alarm in/out | 1/1 |
| RS485 | Yes |
| Reset button | Yes |
| General Information | |
| Operating conditions | ( -40°C ~ 60°C )humidity 95% or less ( no condensation ) |
| Power supply | DC12V ± 25% |
| POE | PoE ( 802.3 af ) |
| Power consumption | MAX. 10.2W |
| Protection class | IP67 |
| Material | Metal |
| Dimensions | Φ105 x 278.9 mm |
| Weight | 1250 g |
