New
The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

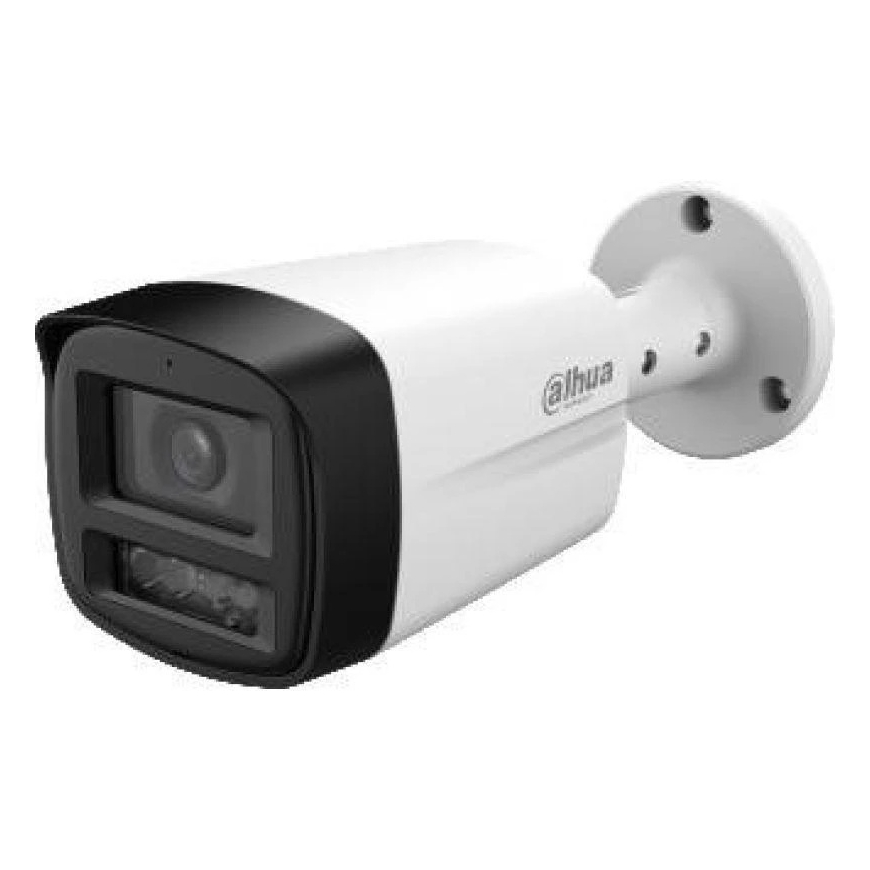

4W1 Dahua camera HAC-HFW1509TLM-A-LED-0360B-S3
49.00 €
Monthly payment from 2,16 €
5030182 HAC-HFW1509TLM-A-LED-0360B-S3
6939554929366
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Dahua HAC-HFW1509TLM-A-LED-0360B-S3 4in1 Camera
Model: HAC-HFW1509TLM-A-LED-0360B-S3
Main Features:
- Max. 25 frames per second at 5 MP resolution (16:9 video output)
- Super Adapt, true WDR 120 dB, 3D noise reduction
- Color image all day long
- Smart Light+ – intelligent lighting control
- Smart area lighting – intelligent area lighting
- Integrated microphone
- Lighting distance: 40 m
- Supports multiple standards: CVI / CVBS / AHD / TVI (switchable)
- 3.6 mm fixed focal lens
- Environmental resistance: IP67, power supply 12 VDC
Technical Specifications:
| Parameter | Description |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max Resolution | 2880 (high) × 1620 (vertical) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s – 1/100 000 s; NTSC: 1/4 s – 1/100 000 s |
| Minimum Illumination | 0.001 lux at F1.0 (color, 30 IRE); 0 lux (with IR on) |
| Signal-to-noise Ratio (S/N) | >65 dB |
| Lighting Range | 40 m (131 ft) |
| Light Source Control | Automatic / Manual |
| Number of LEDs | 4 (warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Prime |
| Auto Focus | NO |
| Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Aperture | F1.0 |
| Viewing Angle | 2.8 mm: H: 112°; V: 57°; D: 132° |
| 3.6 mm: H: 88°; V: 46°; D: 104° | |
| Iris Control | Fixed |
| Minimum Focus Distance | 2.8 mm: 1.6 m; 3.6 mm: 2.3 m |
| DORI (Detect / Observe / Recognize / Identify) | 2.8 mm: 67.4 m / 27.0 m / 13.5 m / 6.7 m |
| 3.6 mm: 80.0 m / 32.0 m / 16.0 m / 8.0 m | |
| Video | |
| Frame Rate | CVI: PAL: 5 MP @ 25 fps; 5 MP @ 12.5 fps; 4 MP @ 25 fps; 1080p @ 25 fps |
| NTSC: 5 MP @ 25 fps; 5 MP @ 10 fps; 4 MP @ 30 fps; 1080p @ 30 fps | |
| AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps | |
| TVI: PAL: 5M 16:9@20 fps; 4M @ 25 fps | |
| NTSC: 5M 16:9 @ 20 fps; 4M @ 30 fps | |
| CVBS: PAL: 960H; NTSC: 960H | |
| Resolution | 5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960 H (960 × 576 / 960 × 480) |
| Day/Night Mode | Color |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; Manual |
| Gain | Automatic / Manual |
| Noise Reduction | 3D noise reduction |
| Lighting Mode | Intelligent lighting |
| Additional Features | Electronic stabilization, 4× digital zoom, mirror image |
| Privacy Masks | Up to 8 zones |
| Audio | |
| Built-in Microphone | Yes |
| Ports | |
| Video Output | CVI/TVI/AHD/CVBS (1 × BNC) |
| Alarm Output | 1 channel |
| Power Supply | |
| Power Supply | 12 V DC ± 30 % (recommended separate power supply for camera) |
| Power Consumption | Max. 9 W (12 V DC, LED on) |
| Operating Environment | |
| Operating Temperature | –40 °C ~ +60 °C |
| Operating Humidity | <95 % relative humidity, non-condensing |
| Storage Temperature | –40 °C ~ +60 °C |
| Storage Humidity | <95 % relative humidity, non-condensing |
| Safety | IP67 |
| Corrosion Resistance | Main protection |
| Body | |
| Material | Metal front + plastic rear casing + metal bracket |
| Dimensions | 198.4 mm × 80.2 mm × 76.2 mm (7.81 in × 3.16 in × 3.00 in) |
| Net Weight | 0.31 kg |
| Gross Weight | 0.48 kg |
| Installation | Wall mount; ceiling mount; on vertical pole |
