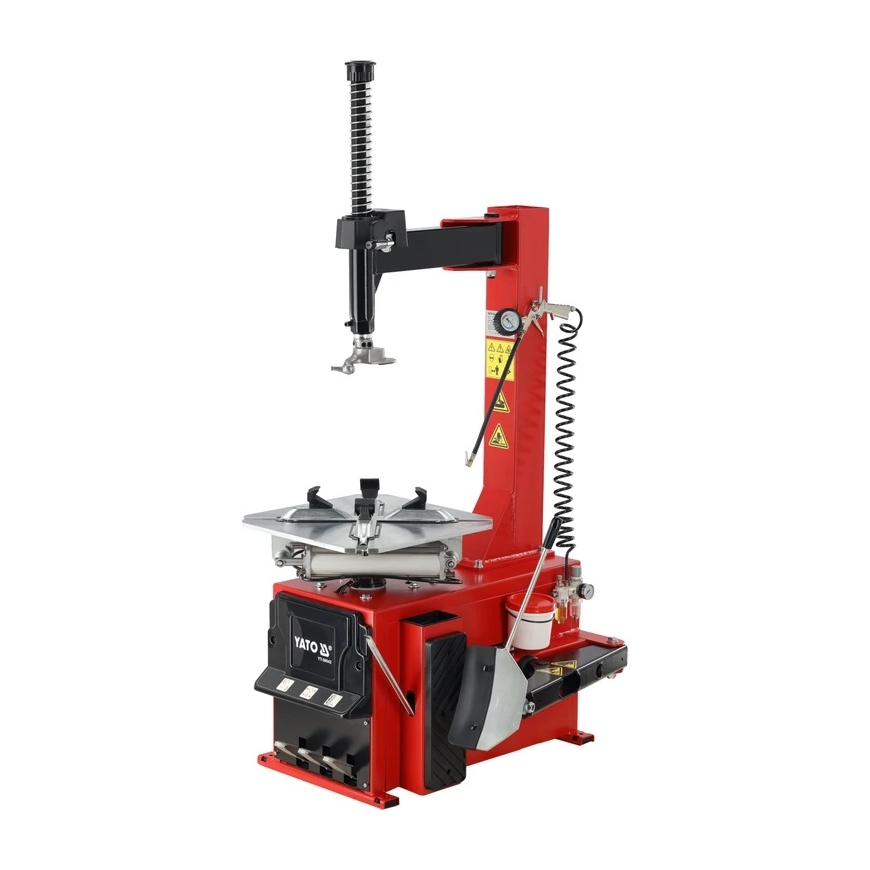

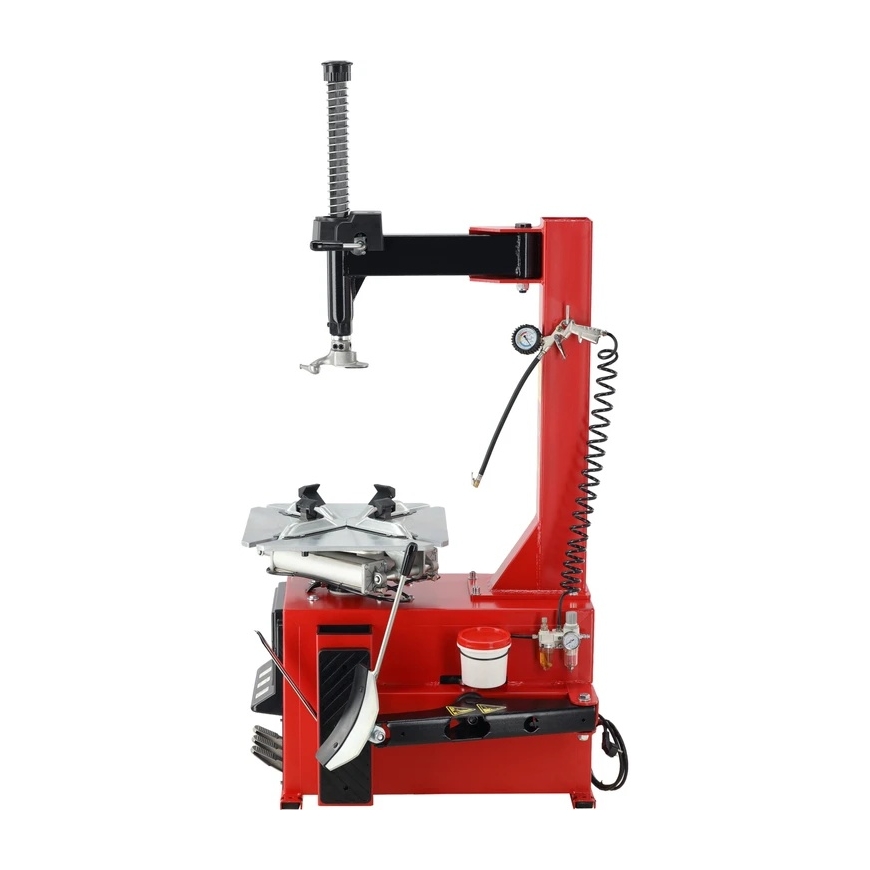

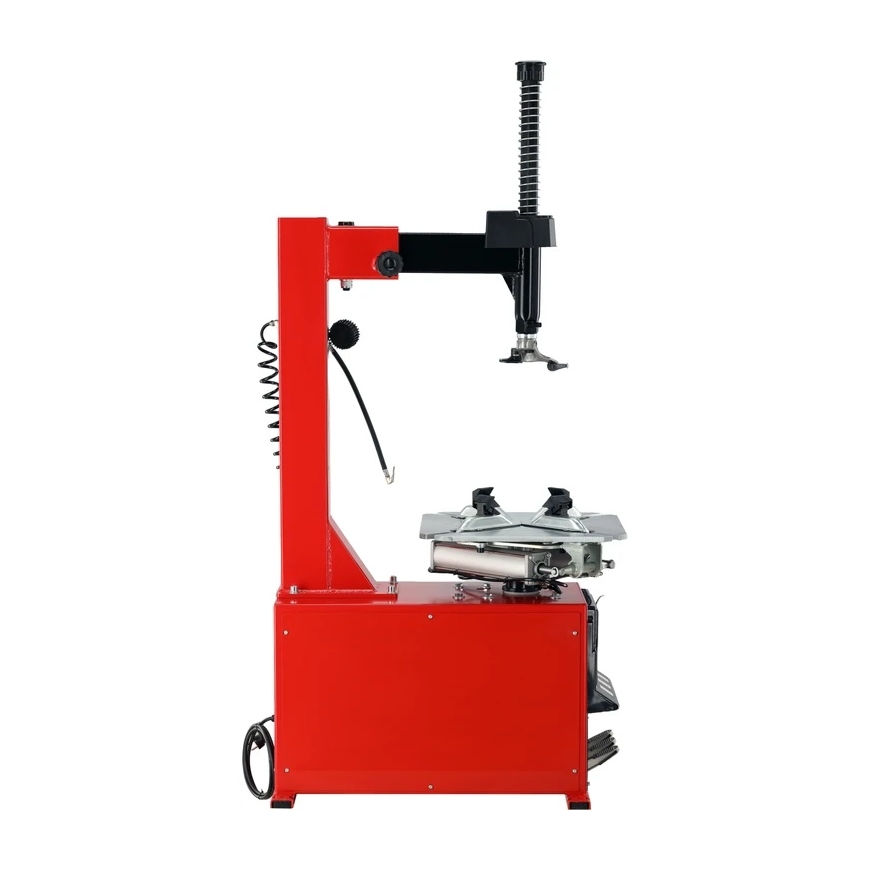

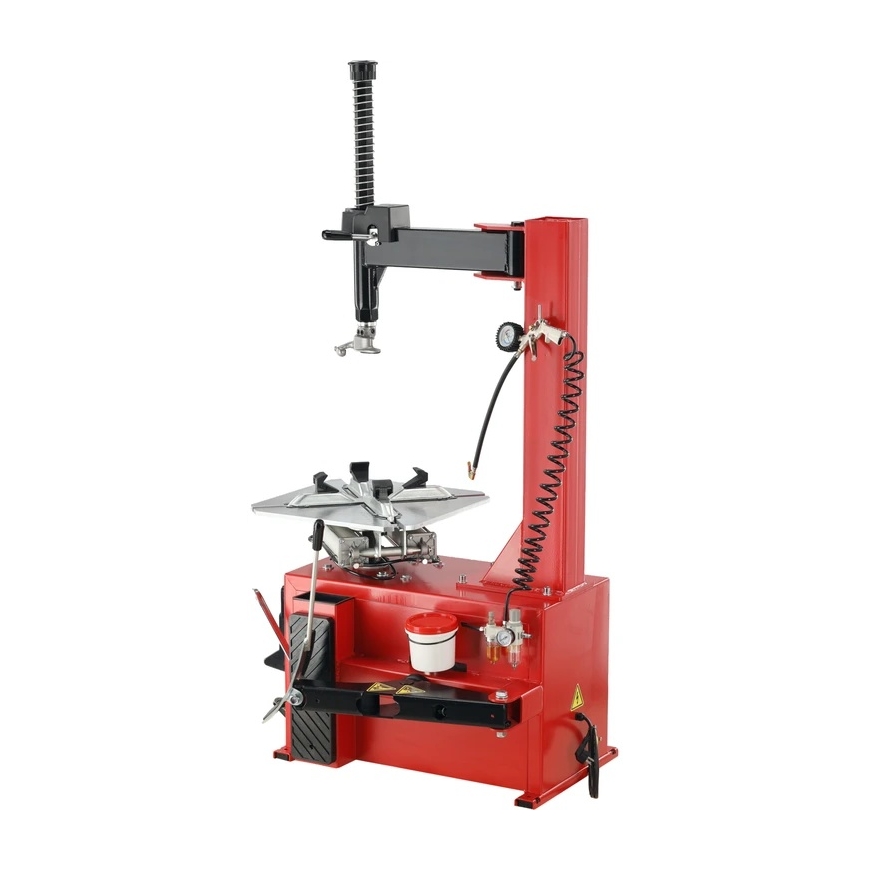

Toya Sa Poland Tire Mounting Machine | for Rims 10–20 in. | 1100 W (YT-08042)
5030113 YT-08042
5906083128752
This product is no longer in stock
All about the product
Tire Mounting Machine | for Rims 10–20 Inch | 1100 W (YT-08042)
The professional YATO tire mounting machine YT-08042 is designed for mounting and dismounting tires on passenger cars and light commercial vehicles. Its robust construction, pneumatic rim clamping system, and foot pedal-operated mechanisms allow for quick and accurate daily tire service tasks.
Pneumatic Rim Clamping
The rotating work table is equipped with internal and external grips that securely hold different sizes of rims. The external clamping range is 10–18 inches, while the internal range is 12–20 inches. The adjustable horizontal lever and hexagonal vertical shaft allow for precise positioning of the mounting head.
Powerful Tire Bead Separation
The pneumatic bead separator has a force of 2500 kg, effectively separating the tire bead from the rim. The machine is designed for tires with a maximum diameter of 950 mm, width of 330 mm, and rim or wheel width of 3–13 inches.
Convenient Operation
The main functions are controlled by ergonomically positioned foot pedals, allowing the operator to use their hands to control the wheel and mounting tools. The integrated inflation gun with a pressure gauge enables inflating the mounted tire and monitoring its pressure.
Key Features
- designed for professional mounting and dismounting of car tires;
- pneumatic rim clamping system;
- rotating table with internal and external grips;
- pneumatic tire bead separator with 2500 kg force;
- adjustable horizontal lever with position lock;
- mounting head with hexagonal vertical shaft;
- operation of functions controlled by foot pedals;
- integrated inflation gun with pressure gauge;
- stable construction designed for intensive workshop use.
Working Range
- external rim clamping: 10–18 inches;
- internal rim clamping: 12–20 inches;
- rim or wheel width: 3–13 inches;
- maximum tire diameter: 950 mm;
- maximum tire width: 330 mm.
Technical Specifications
- manufacturer: YATO;
- model: YT-08042;
- motor power: 1100 W;
- power supply: single-phase;
- work table rotation speed: 6.5 rpm;
- required working pressure: 8–10 bar;
- air pressure at inlet: 0.8–1.0 MPa;
- bead separation force: 2500 kg;
- noise level: less than 70 dB;
- machine weight: 243 kg.
Package Contents
- rotating table with clamping grips;
- mounting head;
- hexagonal shaft with horizontal lever;
- pneumatic tire bead separator;
- inflation gun with pressure gauge;
- foot control system;
- tire mounting lever.
The machine is intended for car repair workshops, tire services, and vehicle maintenance points. It allows for the entire main tire changing process: separating the bead, removing the old tire, mounting a new one, and inflating the wheel to the required pressure.
