Yato Toya Sa Poland Torque Wrench | 12.5 mm (1/2") | 60 - 340 Nm (YT-0754)

All about the product

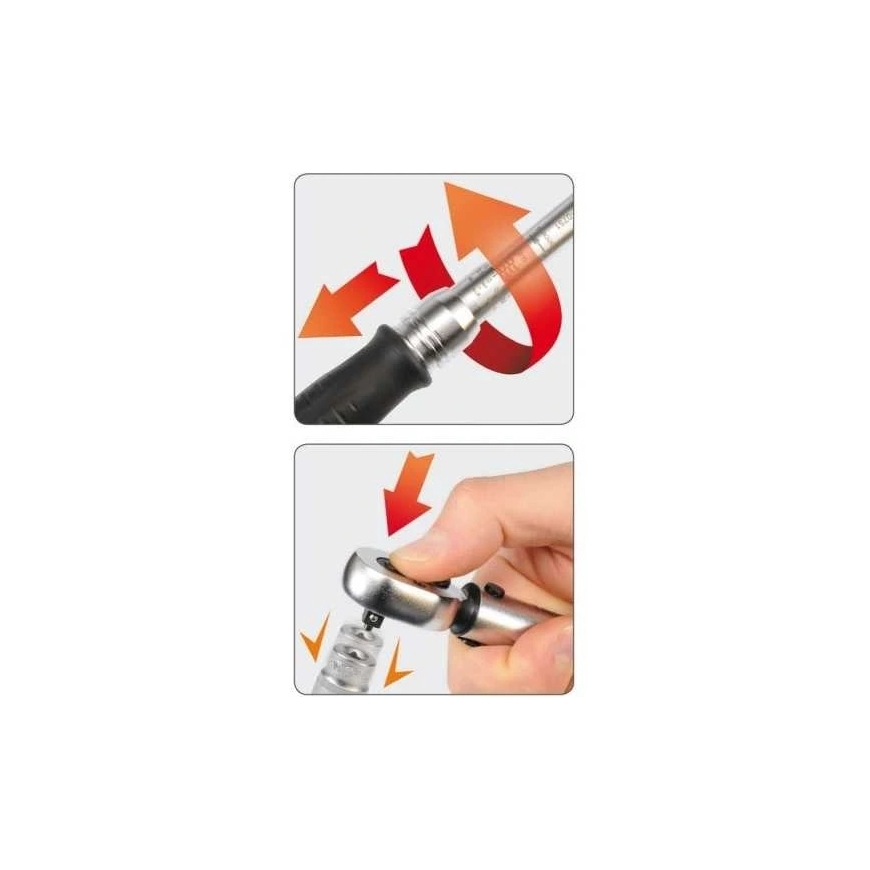

Tool number YT-0754 accuracy 3% CERTIFICATE x number of teeth T 32 Length (mm) 613 torque (Nm) 60-340 Nm weight (g) 1810 Product description The wrench is made of chrome-vanadium steel, which ensures its durability and longevity. It features a mechanical torque wrench tensioner that, upon reaching the required tightening force, skips over one tooth, producing a distinctive sound. The torque scale is on the handle of the wrench, its adjustment is done by turning it. Once the desired torque is set, lock the wrench at the end of the handle. The wrench is GS certified. Comparison of torque expressed in different units of length and strength: 1 kG * cm = 13 887 OZ * IN (ounce x inch) 1 kG * cm = 0.867 LB * IN (lb. in) 1 kG * m = 9.80665 N * m (newton x meter) 1 kG * m = 7 233 LB * FT (lb.ft) 1 FT * LB = 12 LB * IN (lb. in) 1 dm * N = 14.16 OZ * IN (ounce x inch) Purpose / Application It is mainly used in automotive technology for precise fastening and everywhere the manufacturer has specified the required tightening torque for the connection. How to use - Select the appropriate scale Nm or in-lbs. Unlock the micrometer knob. - While holding the unlocked micrometer, turn the wrench handle so that the knob's scale "0" aligns with the vertical line on the wrench lever. - Turn the wrench handle clockwise until the desired torque is set. The desired torque is set when the micrometer dial step aligns with the vertical line on the wrench lever. - Then secure the micrometer knob, ensuring that the lock is "locked" and the handle cannot be turned, then set the direction of the wrench rotation – the wrench is ready to use. - Place the appropriate cover on the wrench holder. Upon reaching the set torque during tightening, a clicking sound is heard from the wrench. If you hear or feel clicks, you should stop tightening. Package contents - torque wrench - factory calibration certificate (individual for each wrench, marked with the wrench series number) - user manual - warranty card - case Technical specifications Index number YT-0754 EAN 5906083907548 Manufacturer Yato Unit unit Total weight (kg) 2.3200 Main box MC 10 Pal 180 Length [mm] 613 package BMC Drive size [inches] 1/2 " Torque value [Nm] 60-340
