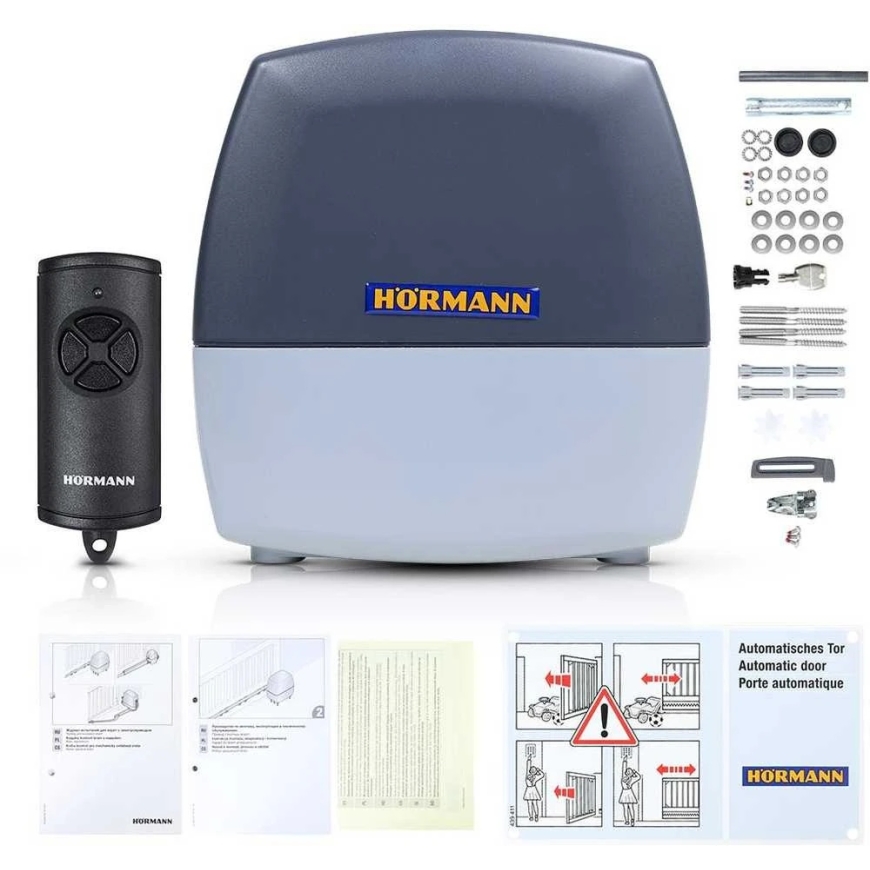

Carruzzo Hormann "Lineamatic 868Mhz BiSecure" kit for 300 kg sliding gates
5028641 4554297
4042533659023
Shipping 8-12 b.d.
All about the product
Hormann Lineamatic 868Mhz BiSecure Kit for Sliding Gates 300kg
Purpose
The "Hormann Lineamatic" kit (4554297) is designed for lightweight sliding gates with a maximum weight of 300 kg and a maximum length of 6 meters. It is recommended that the gates weigh no more than 250 kg.
„Hörmann“ entrance gate drives are safe at every opening and closing stage. The forces generated by the drives are tested by TÜV and certified for various gate sizes and installation situations in accordance with the PN EN 13241-1 standard. They ensure quiet and safe gate operation. The gates open smoothly and are gently stopped when closing. This solution protects the gates and the drive mechanism, and most importantly, does not obstruct anyone.
A distinctive feature of the „LineaMatic“ sliding gate kit is the compact, vertically adjustable housing made of cast zinc and fiberglass reinforced plastic, as well as a reliable electronic system.
Technical Specifications:
- Power Supply Voltage: 230–240 V, 50 Hz
- Motor: with a reducer, powered by 24 V direct current
- Maximum gate weight (track gates with bottom rail / self-supporting gates): 300 kg / 250 kg
- Maximum gate height: 2000 mm
- Maximum number of gate cycles per day: 20
- Housing material: zinc alloy and weather-resistant plastic
- Operating temperature range: from-20 °C to +60 °C
- Protection class: IP44
- Magnetic limit switch: yes
- Automatic closing function: yes
- Gate function: yes
- Number of connectable safety devices: 3
