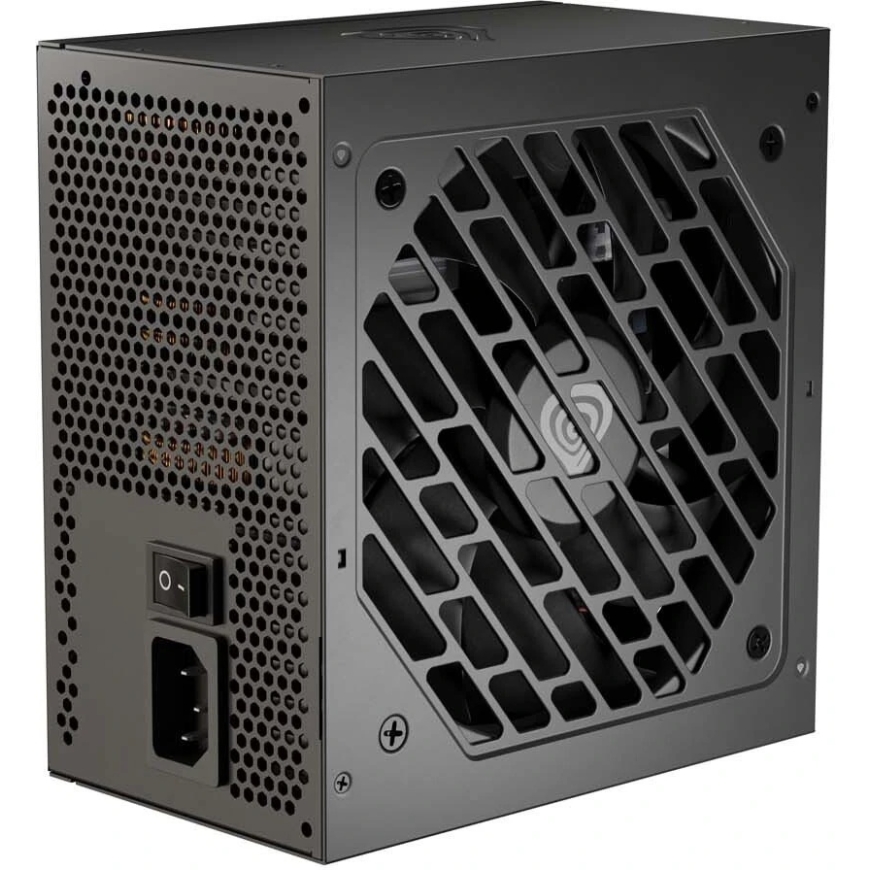

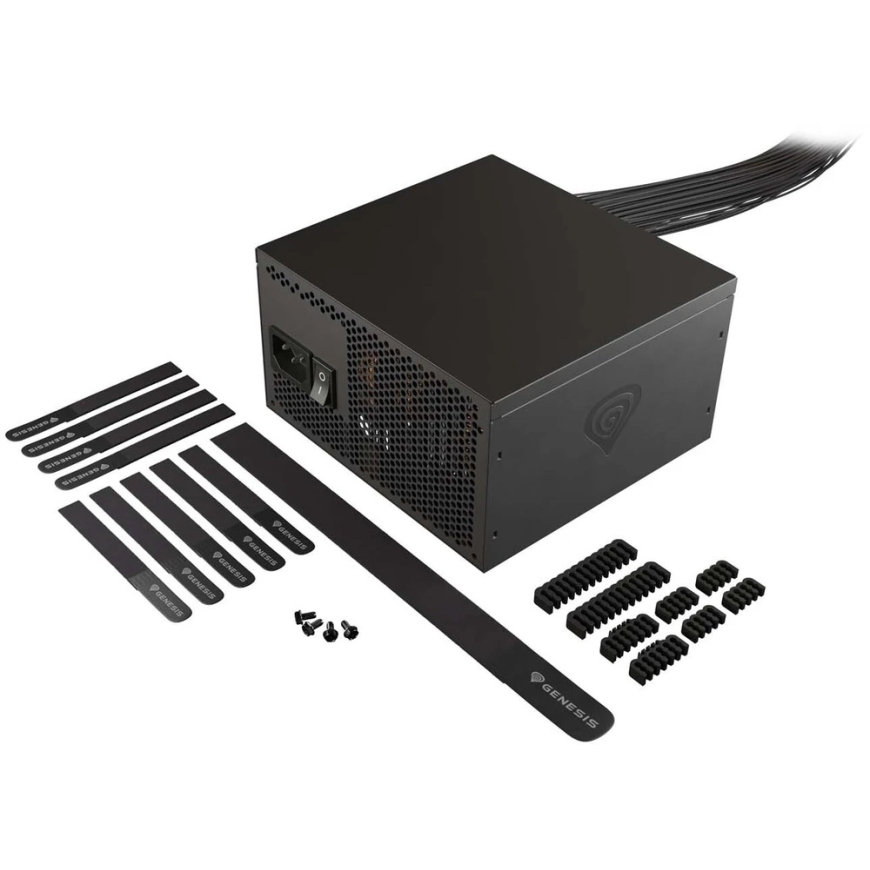

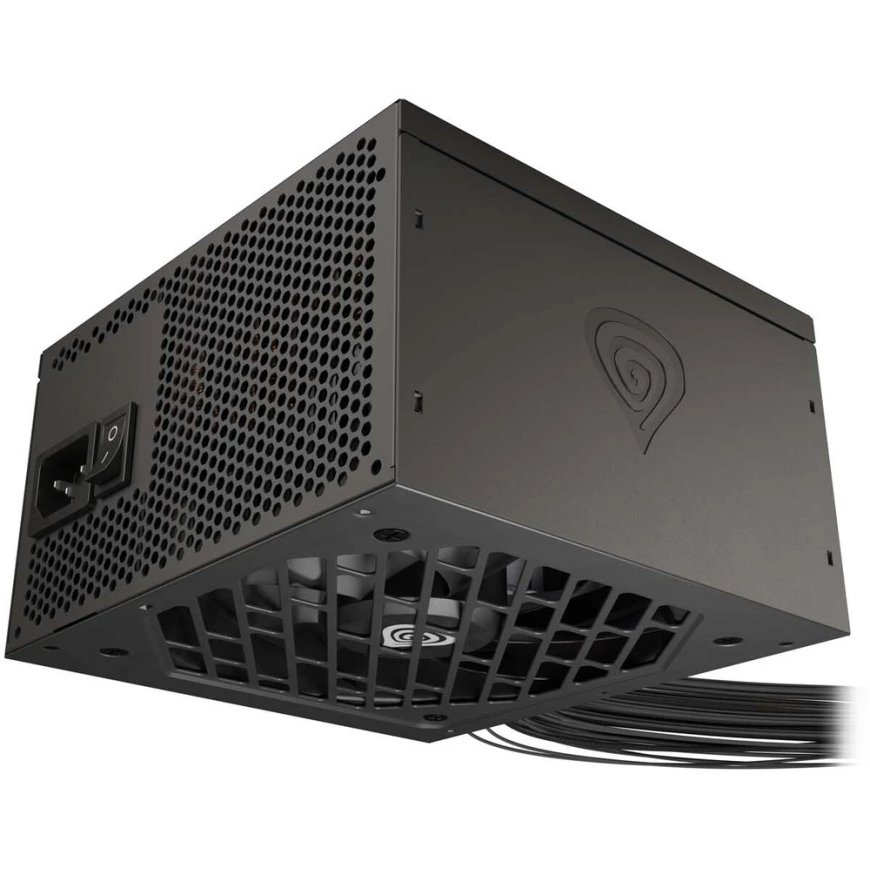

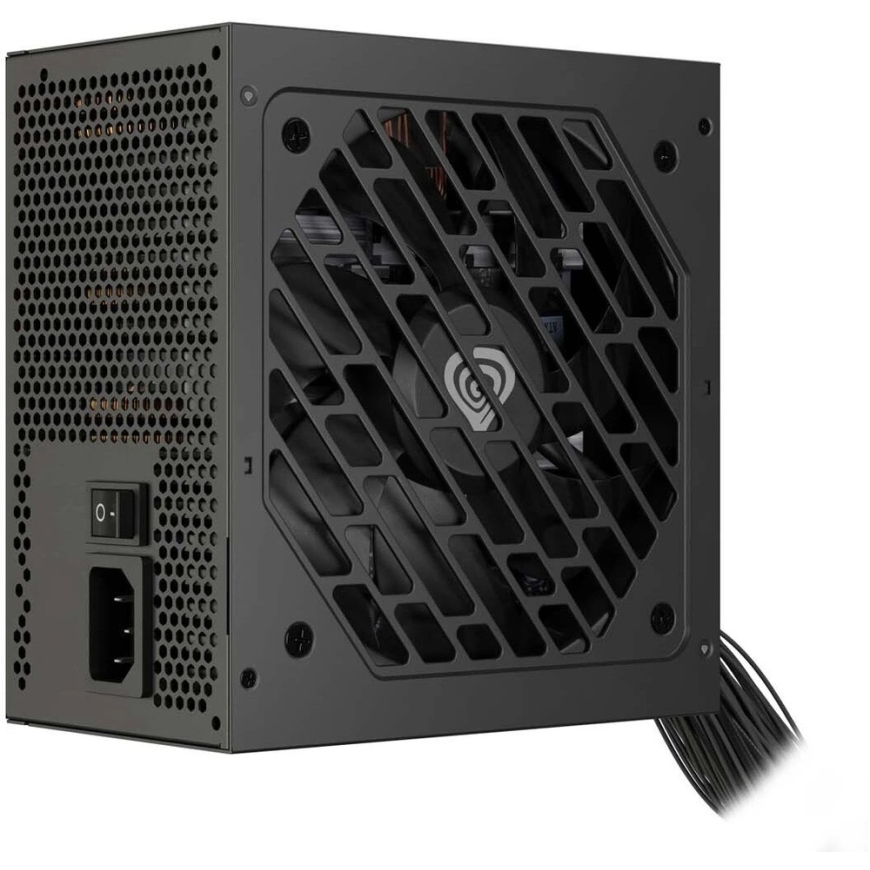

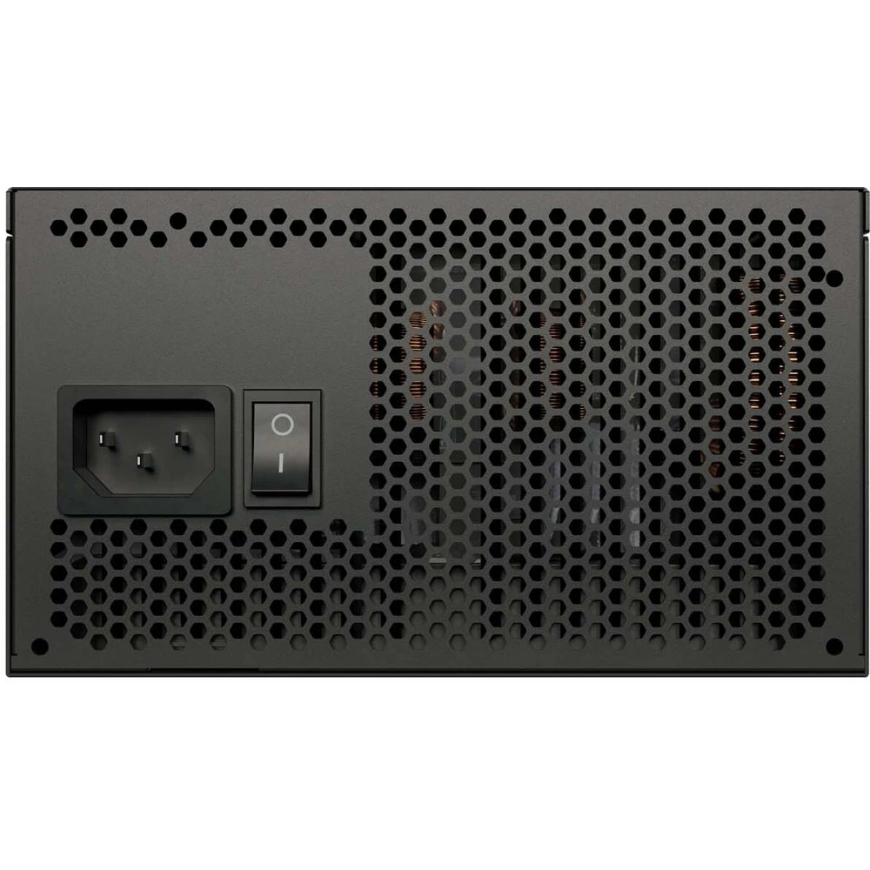

GENESIS Nihon 750NM power supply unit 750 W 20+4 pin ATX ATX Black

All about the product

Design :

Cooling type: Active

Number of fans: 1 fan(s)

On/off switch: Yes

Product colour: Black

Fan diameter: 12 cm

Illumination: No

Power :

Power protection features: Overheating

Ac input voltage: 100 - 240 V

Input current: 9 - 4.5 A

Ac input frequency: 50/60 Hz

Max output current (+12v): 62.5 A

Combined power (+5vsb): 15 W

Combined power (-12v): 3.6 W

Max output current (+5v): 20 A

Efficiency: 88%

Combined power (+3.3v): 100 W

Max output current (+5vsb): 3 A

Total power: 750 W

Combined power (+5v): 100 W

Power factor correction (pfc) type: Active

Combined power (+12v): 750 W

Max output current (+3.3v): 20 A

Max output current (-12v): 0.3 A

Operational conditions :

Operating temperature (t-t): 0 - 40 °C

Weight & dimensions :

Depth: 140 mm

Height: 86 mm

Width: 150 mm

Weight: 2.13 kg

Performance :

Cybenetics certification: Silver

Cybenetics noise rating: Standard++

80 plus certification: 80 PLUS Bronze

Noise level: 24.7 dB

Purpose: PC

Mean time between failures (mtbf): 80000 h

Atx version: 3.1

Power supply unit (psu) form factor: ATX

Bearing technology: FDB

Packaging data :

Package weight: 2.52 kg

Package width: 240 mm

Package depth: 290 mm

Package height: 125 mm

Packaging content :

Cables included: AC

Certificates :

Compliance certificates: CE

Ports & interfaces :

Number of eps connectors: 2

Number of sata power cables: 2

Peripheral (molex) power connectors (4-pin): 2

Sata power cable length: 450

Number of sata power connectors: 6

Motherboard power connector: 20+4 pin ATX

Peripheral (molex) power cable length: 750 mm

Pci express power connectors (6+2 pin): 3

Cpu power connector (4+4 pin): Yes

Cabling type: Non-Modular

Cpu power cable length: 85 cm

Motherboard power cable length: 55 cm

Pci express connector: Yes

Pci express power cable length: 67 cm
