"Hillvert" stainless steel deep well pump, 13,800 l/h, up to 76.4 m depth

All about the product

Product code: 1011938
„Hillvert“ submersible pump easily pumps water from deep and narrow shafts, wells, reservoirs, and tanks. The diameter of the stainless steel casing is only 95 mm, making it ideal for narrow boreholes. The 2200 W motor operates at a speed of 2850 rpm and ensures a high flow rate of up to 13,800 l/h. The device can be submerged to a depth of 20 m, and the maximum pressure is 76.4 m. The well pump is suitable for clean water up to 35 °C temperature. The submersible pump motor is hermetically sealed and protected from pressure and water. The stainless steel casing is corrosion and dirt resistant, reliably handling even the toughest loads.
Product features:

• - 13,800 l/h capacity due to the 2200 W motor and 2850 rpm speed.

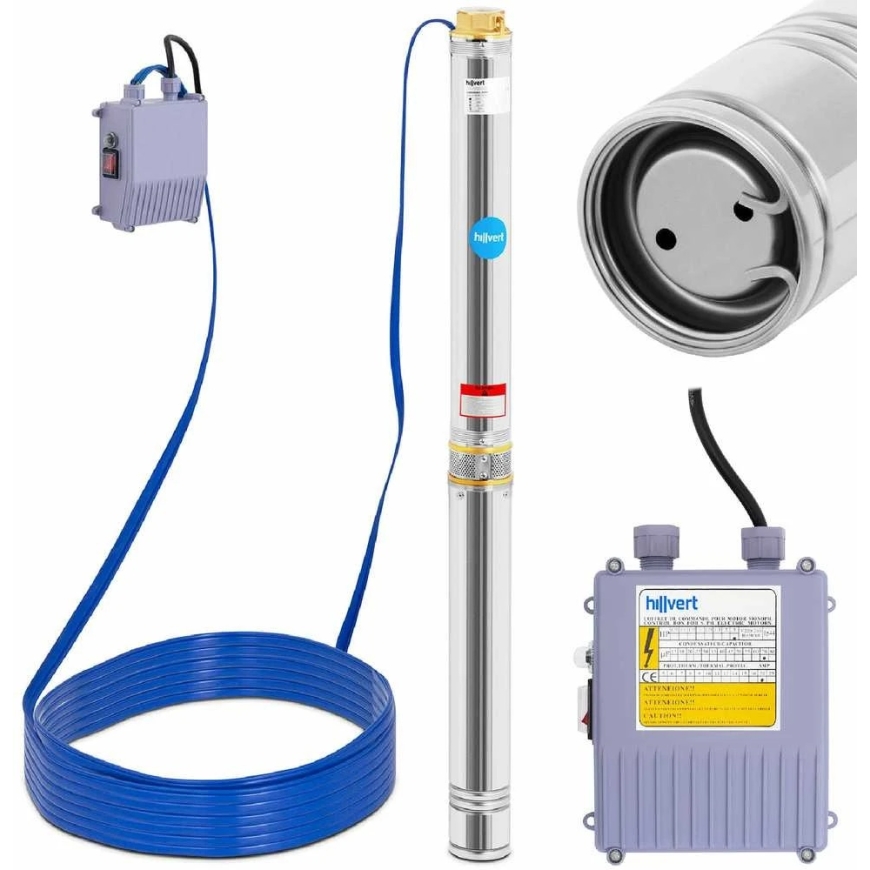

• - Controlled by a control box with a protected on/off switch.
• - Maximum lifting height of 76.4 m.
• - Stainless steel casing, corrosion and dirt resistant.

• - Brand - Hillvert
• - Voltage [V] - 230
• - Material - Stainless steel
• - Color - silver
• - Rated current - 14 A
• - Rated speed [rpm] - 2850
• - Water flow - 13,800 l/h
• - Overall diameter - 95 mm / 3.75 inch
• - Insulation class - B
• - IEC protection class - I
• - Number of stages (pump impellers) - 12
• - Maximum immersion depth underwater - 20 m
• - Max sand content in water [%] - 0.25
• - Maximum input power - 3 kW
• - Maximum output power - 2.2 kW
• - Maximum water temperature - 35 degrees C
• - Maximum lifting height - 76.4 m
• - Maximum working pressure - 7.64 bar
• - Maximum water flow - 13.8 m³/h
• - Maximum particle size - 1.8 mm
• - Control methods - External starting block (2200 W)
• - Filter - Yes
• - Overcurrent - Yes
• - Check valve - Yes
• - Power cable - 20 m
• - Cable specification - HO7RN-F3G2.5mm²
• - IP protection class - IP68
• - Mounting hole diameter - 100 mm
• - Water connection diameter - 2 inches
• - Dimensions (L x W x H) - 124.5 x 9.5 x 9.5 cm
• - Weight - 25 kg
• - Shipping dimensions (L x W x H) - 162 x 24 x 12 cm
• - Shipping weight - 28 kg

• - Submersible pump
