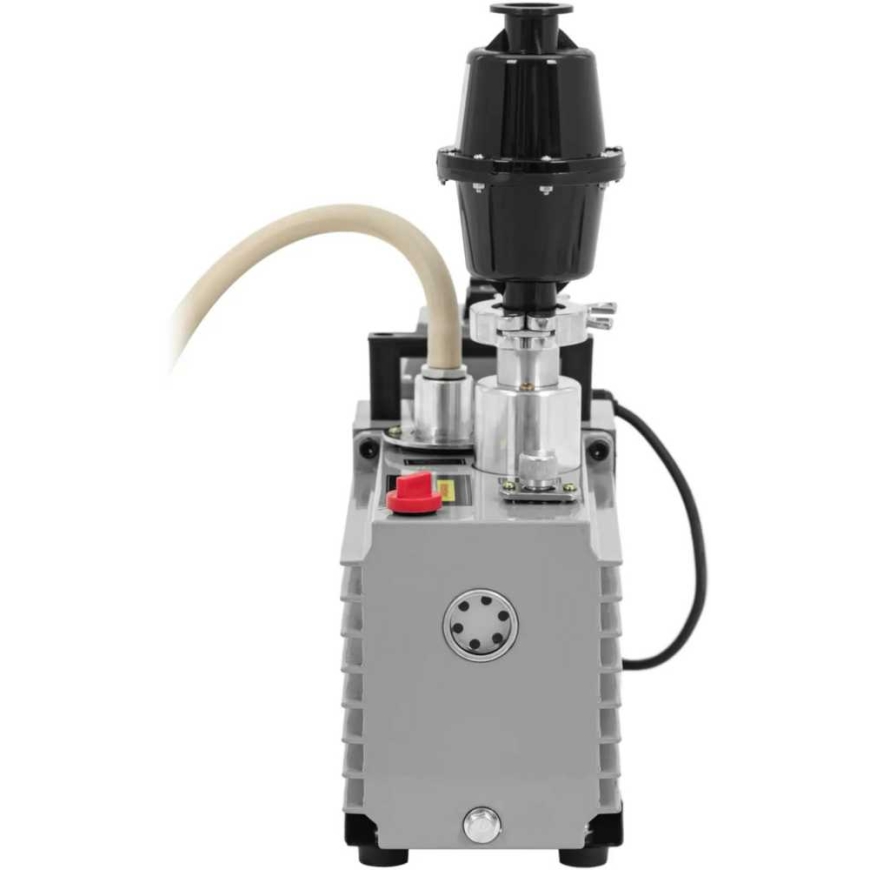

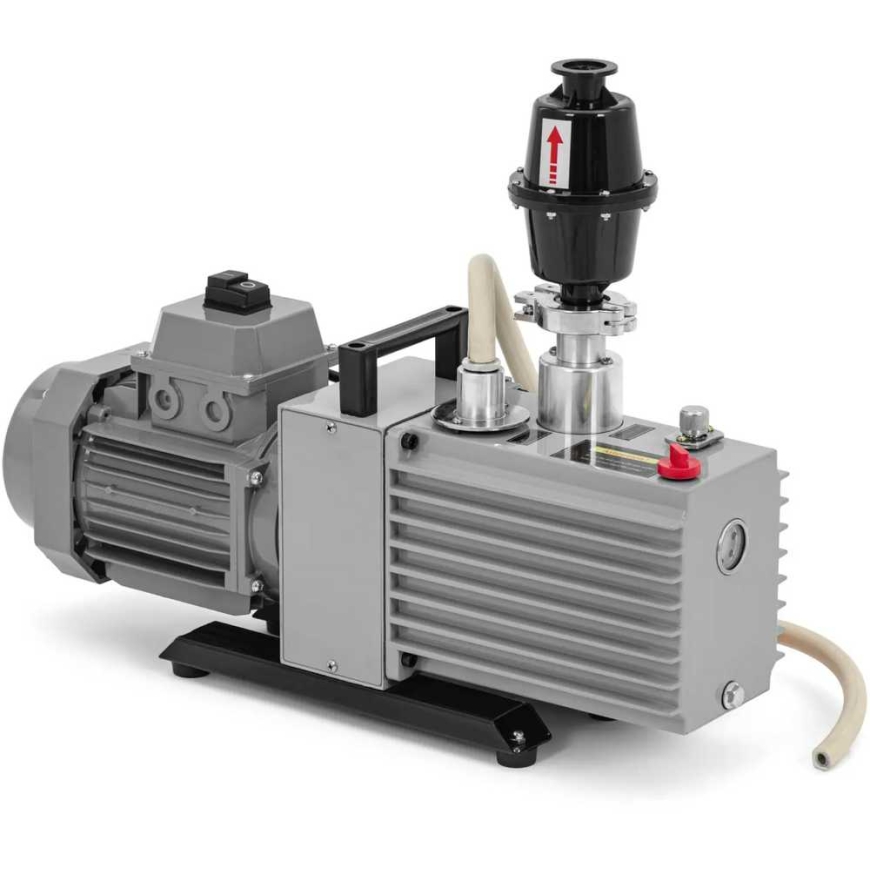

Steinberg Systems Laboratory Vacuum Pump 4 l/s 0.06 Pa 550 W

All about the product

Manufacturer code: 10031047
„Steinberg Systems“ vacuum pump is ideally suited for efficiently extracting closed systems in laboratories, the electro-vacuum industry, the production of vacuum bottles, or for welding. It also serves as an accessory alongside precision measuring devices. The device can be used as a main pump, booster pump, or as a diffusion or molecular pump. This vacuum pump is highly effective laboratory equipment. With a 550 W power, it achieves a 4 l/s pumping performance and can operate continuously for long periods. The high 0.06 Pa vacuum level allows precise pressure control in vacuum chambers or systems. Such a level of reliability creates optimal conditions, for example, in semiconductor manufacturing or in thin film deposition processes. The pump is energy-efficient, as it takes only a few moments to create and maintain a vacuum. It also saves time in operating and replacing the oil mist filter. Due to its special design, a new filter can be installed very quickly, thus reducing downtime and labor costs. With its compact dimensions, the pump is ideally suited for mobile use. The device, with a protection class of IP44, is protected from foreign objects with a diameter of 1 mm or greater and water splashes. The robust and durable aluminum and iron construction will withstand intensive use for years.
Product features:

• - Vacuum pump with a flow rate of 4 l/s and a vacuum level of 0.06 Pa, designed for precise laboratory use,
• - Made from durable aluminum and iron, requiring minimal maintenance and is long-lasting,
• - Can be used as a main or auxiliary pump, as well as a diffusion or molecular pump,
• - Small and lightweight, ideal for mobile use,

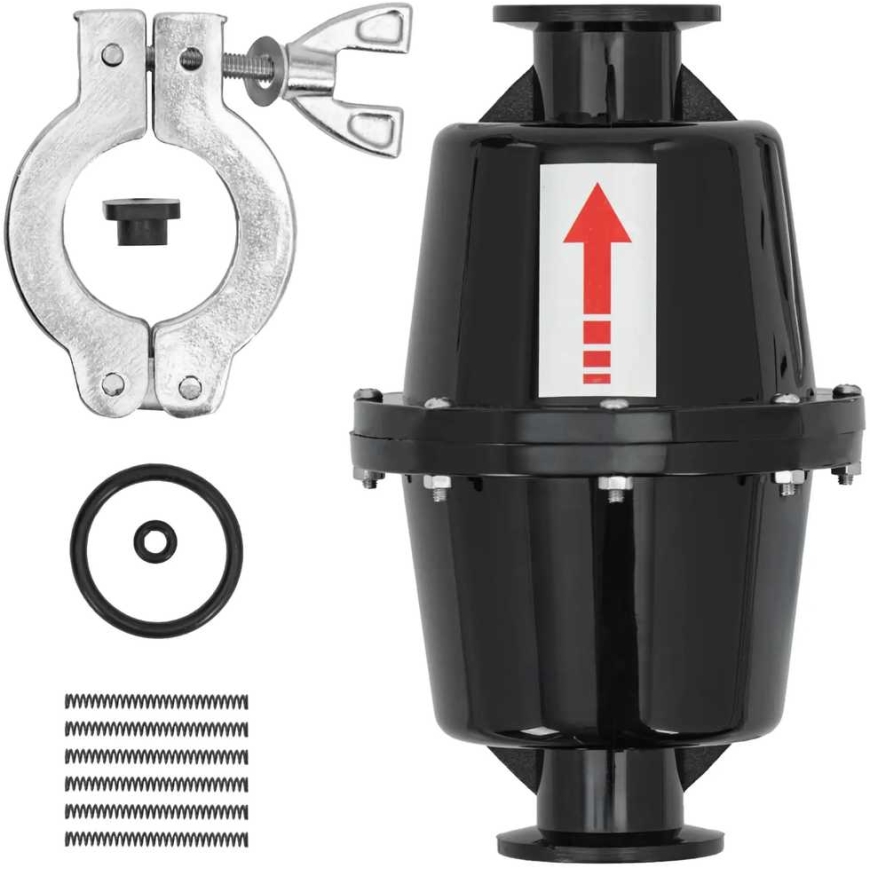

• - Quickly replaceable oil mist filter.

• - Catalog number - 10031047
• - Product condition - New
• - Model - SBS-LA
• - Material - aluminum, iron
• - Color - silver metallic
• - Voltage [V] - 230
• - IP protection class - IP44
• - Power [W] - 550

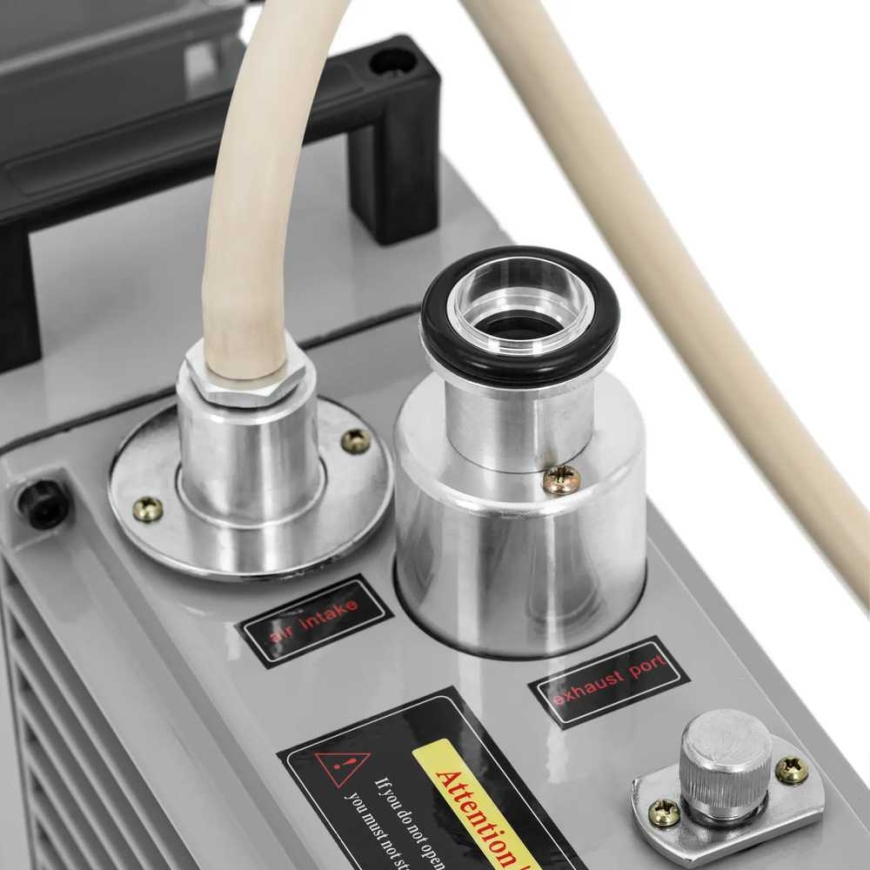

• - Inlet port size [mm] - 10 mm
• - Maximum rotation speed [rpm] - 1400
• - Flow rate - 4 l/s
• - Capacity - 1 l
• - Vacuum degree (reduced pressure) - 0.06 Pa
• - Noise level - 65 dB
• - Overheat protection - Yes

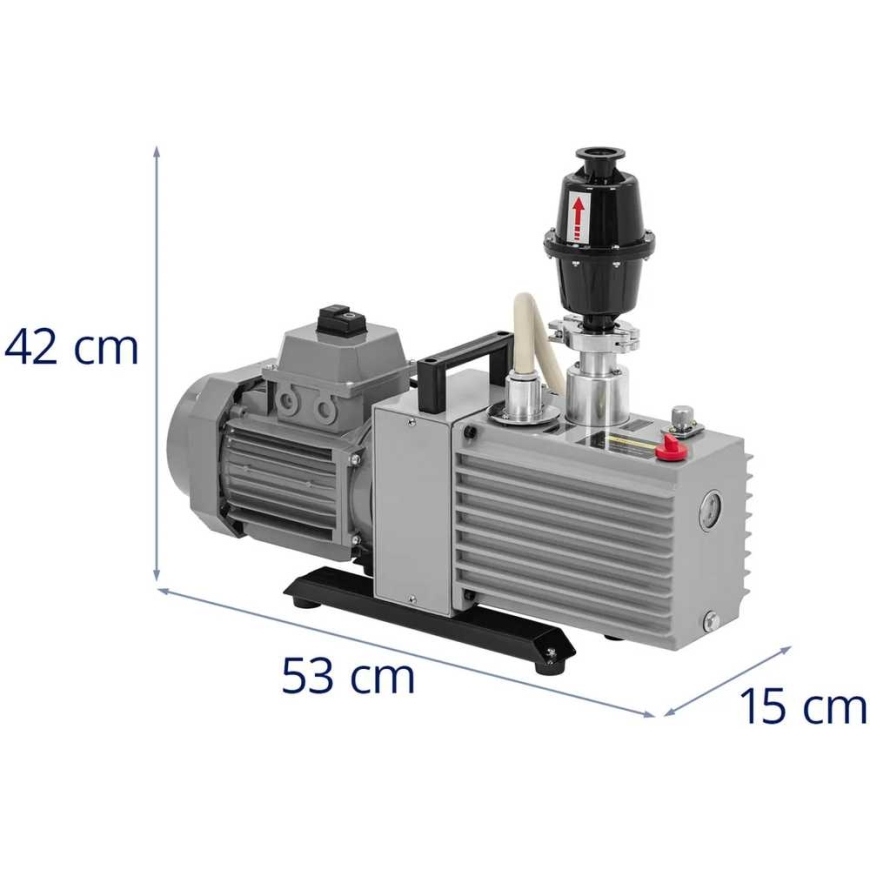

• - Dimensions (L x W x H) - 53 x 15 x 42 cm
• - Weight - 20.4 kg
• - Shipping dimensions (L x W x H) - 62 x 23 x 38 cm
• - Shipping weight - 25.4 kg

• - Vacuum pump
