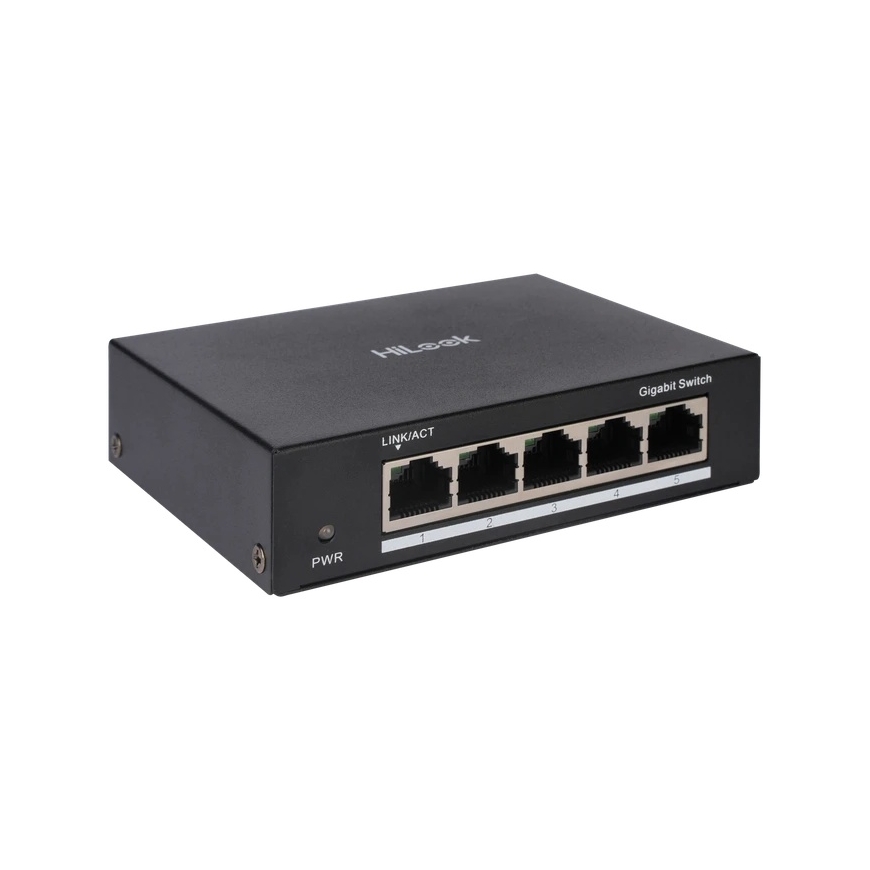

Switch 5 ports HiLook NS-0505
New
Switch 5 ports HiLook NS-0505
Switch 5 ports HiLook NS-0505
Switch 5 ports HiLook NS-0505

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Switch 5 ports HiLook NS-0505

23.91 €
5027273

6942160456256

Shipping 5-8 b.d.

You are interested in this product?
(Read terms of service)

All about the product

  • Certifications
  • Chemical component certification CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Calling Function
  • Long Range Mode /
  • PoE Watchdog /
  • Port Isolation /
  • General Information
  • Dimensions (W × H × D) 105.00 mm × 27.60 mm × 83.10 mm (4.13'' × 1.09'' × 3.27'')
  • Total Weight 0.35 kg (0.77 lb)
  • Installation Mode Desk-Mounted, Wall-Mounted
  • Max Power Consumption 3 W
  • Net Weight 0.17 kg (0.37 lb)
  • Operating Humidity 5% to 95% (no condensation)
  • Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Power Consumption in Sleep Mode 0.25 W
  • Power Source 5VDC, 0.6A
  • Relative Humidity 5% to 95% (no condensation)
  • Frame Metal material, fan-free design
  • Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge Protection 6 KV
  • Network Parameters
  • Internal cache memory 3 Mbits
  • MAC address table 2 K
  • Packet forwarding rate 7.44 Mpps
  • Ports 5 × Gigabit RJ45 port
  • Switching Capacity 10 Gbps
  • PoE
  • Max PoE port power /
  • PoE port /
  • PoE power budget /
  • PoE power connection /
  • PoE standard /
