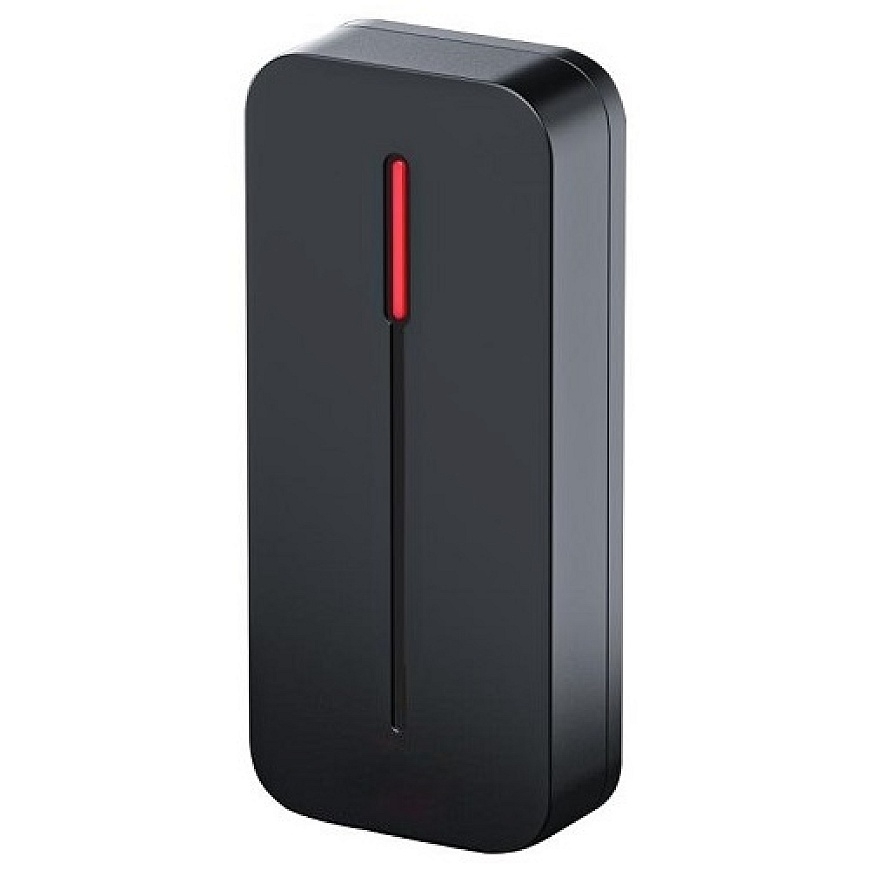

Hismart EM 125kHz Atstuminių kortelių skaitytuvas
5026819 TV993802
9990000993802
Shipping 2-4 days
All about the product
EM 125kHz proximity card reader, Wiegand 26/34.
Features:
Card reader supporting EM 125kHz cards.
The device operates as a Wiegand reader: it transmits the scanned card code to the access control controller that manages the door lock.
Communication distance: up to 100 m between the card reader and the access control controller.
Equipped with a two-color LED indicator.
Designed for extreme weather conditions from -40°C to +60°C, with IP68 water and dust resistance, suitable for outdoor or indoor use.
Specifications:
Supported card frequency: EM 125kHz.
Voltage: 9-12V DC.
Standby current: up to 30 mA.
Card reading distance: 2~5 cm.
Output protocol: Wiegand 26/34 bit.
Wire connections: +12V, GND, Wiegand D0/D1, LED, Buzzer.
Protection class: IP68.
Operating temperature: -40°C to +60°C.
Operating humidity: 10% - 90%RH.
Housing material: ABS plastic.
Dimensions: 109 x 47 x 20 mm.
Warranty: 24 months.
