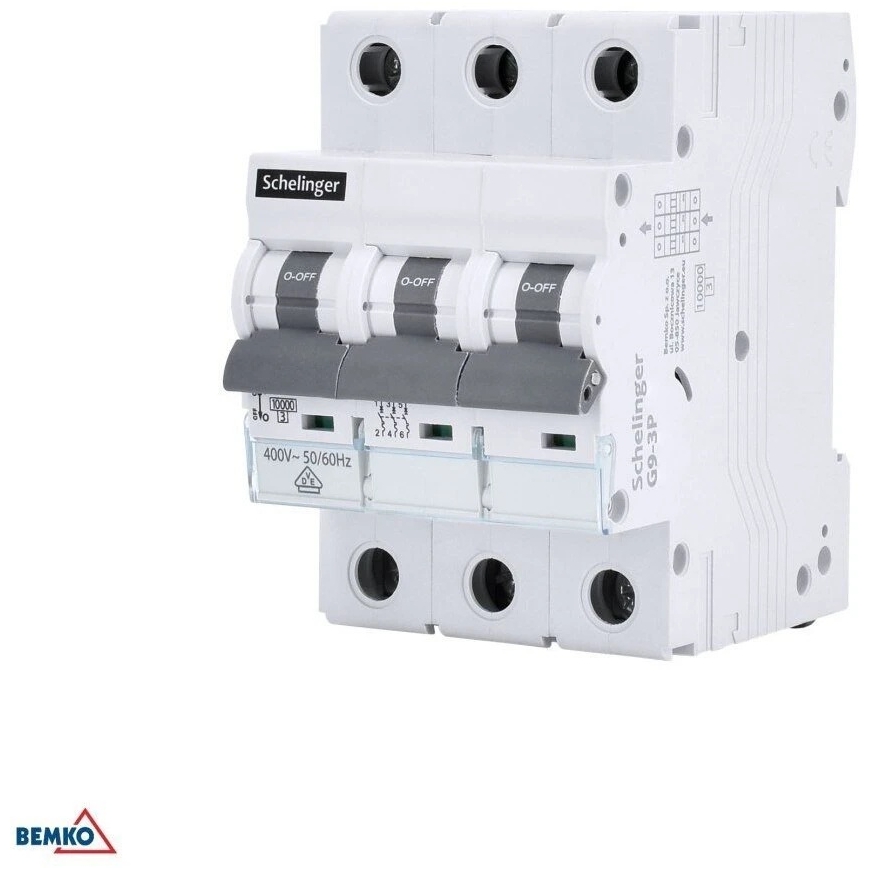

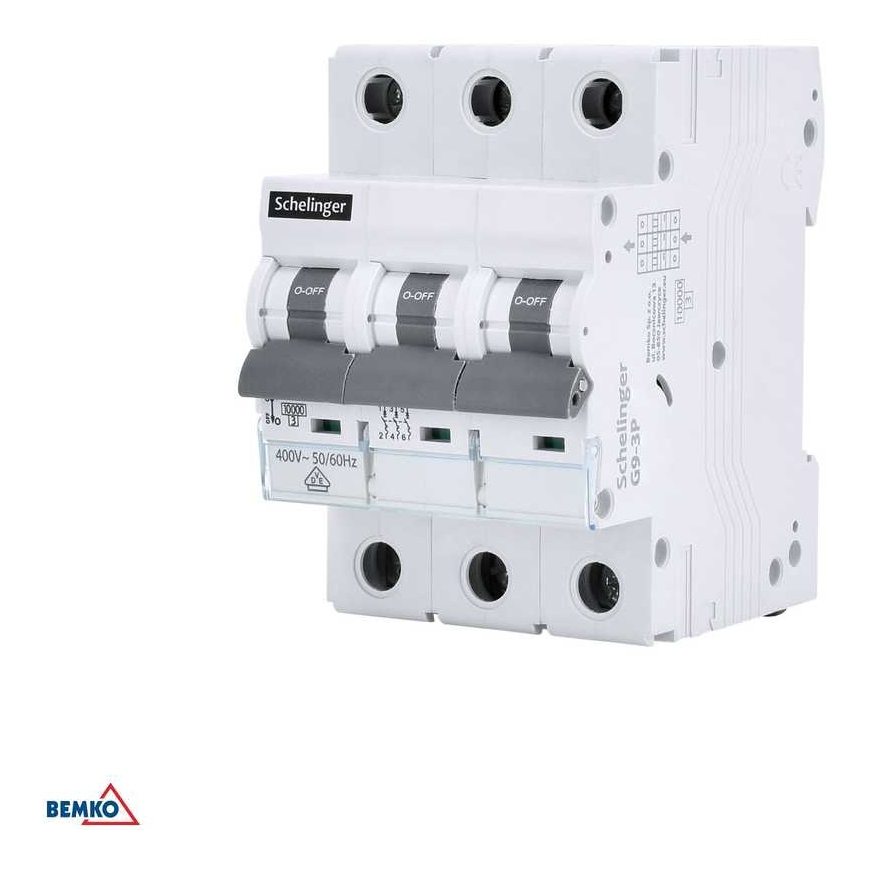

Circuit Breaker 10KA 3P B 20A VDE SCHELINGER

All about the product

The 10KA 3P B 20A VDE circuit breaker is a reliable protective device that safeguards electrical installations against overloads and short circuits, ensuring safe operation in various conditions. Its compliance with VDE standards guarantees high quality and effectiveness of operation. The breaking capacity for short circuits up to 10kA provides effective protection against damage to the installation, thereby increasing safety during use. The rated current of 20A allows for safe powering of devices in electrical installations, making the breaker versatile in applications. The rated voltage of 400V makes the breaker suitable for most standard electrical installations, facilitating its use in various projects. The operating temperature range of -5°C to +30°C allows the breaker to be used in different environmental conditions, enhancing its universality. The IP20 protection class prevents access to hazardous parts, which enhances safety in electrical installations. Dimensions of 69 mm in height, 81 mm in length, and 53 mm in width allow for easy installation in standard electrical distribution boards. The 10KA 3P B 20A VDE circuit breaker – Safety for your home. The 10KA 3P B 20A VDE circuit breaker is a reliable device that effectively protects your electrical installations against overloads and short circuits. By meeting VDE standards, you can be assured of the product's high quality and safety of use. It is an excellent solution for any home, providing peace of mind and comfort in everyday use. High overload resistance – 10KA and more. This breaker stands out with its ability to break at short circuits up to 10kA, making it extremely effective in protecting against dangerous situations. With a rated current of 20A, it is suitable for various applications in electrical installations, ensuring their reliability and safety. Application in electrical installations – Rated voltage 400V. The product is intended for installation in electrical systems with a rated voltage of 400V and a frequency of 50/60Hz. Thus, the 10KA 3P B 20A VDE circuit breaker will perform excellently under various conditions, providing optimal protection for your home. Compact dimensions – Height 69mm, length 81mm, width 53mm. The breaker features compact dimensions, making its installation easier in various systems. Its height is 69 mm, length is 81 mm, and width is 53 mm, making it a practical solution that doesn’t take up much space. Protection class IP20 – Protection against solid bodies. The 10KA 3P B 20A VDE circuit breaker has an IP20 protection rating, meaning it is protected against access to hazardous parts. While it is not water-resistant, its design ensures safety under typical usage conditions. Technical specifications of the 10KA 3P B 20A VDE circuit breaker Code A02-G9-3P-B20 Rated voltage (Un) 400V~ 50/60Hz Rated current (In) 20A Short-circuit breaking capacity (Icn) 10000A Insulation voltage (Ui) 400V Maximum impulse voltage (Uimp) 4kV Number of modules 3 Height 69 mm Length 81 mm Width 53 mm Protection class IP20 Operating temperature -5°C / +30°C Packaging 4 pieces in a carton
