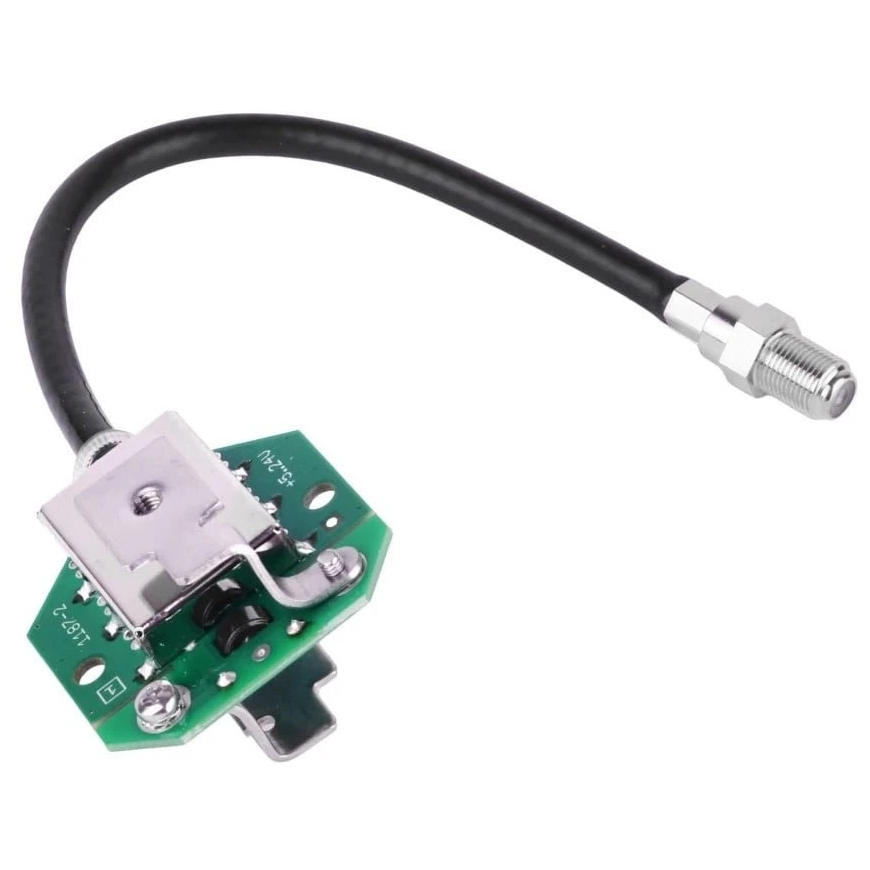

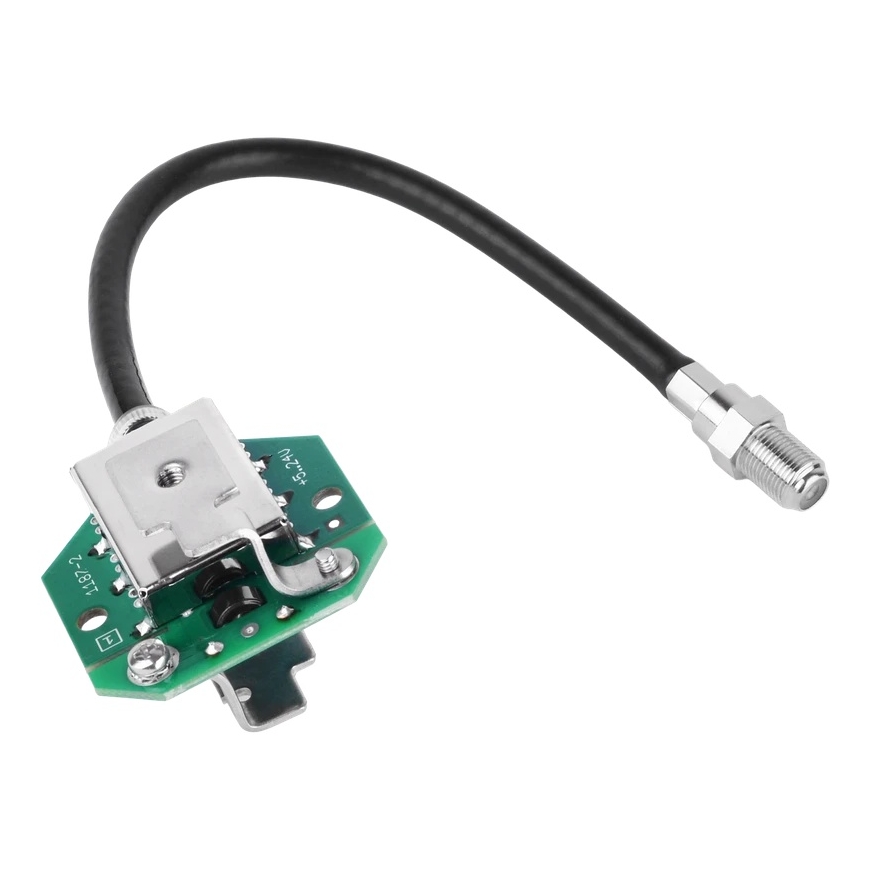

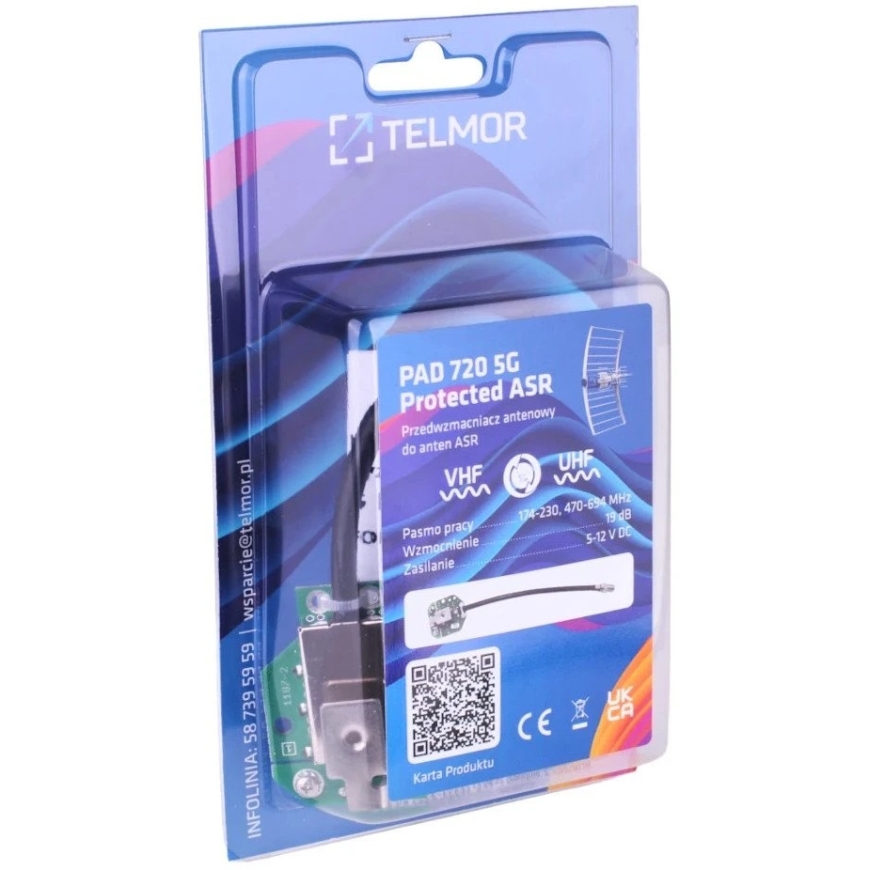

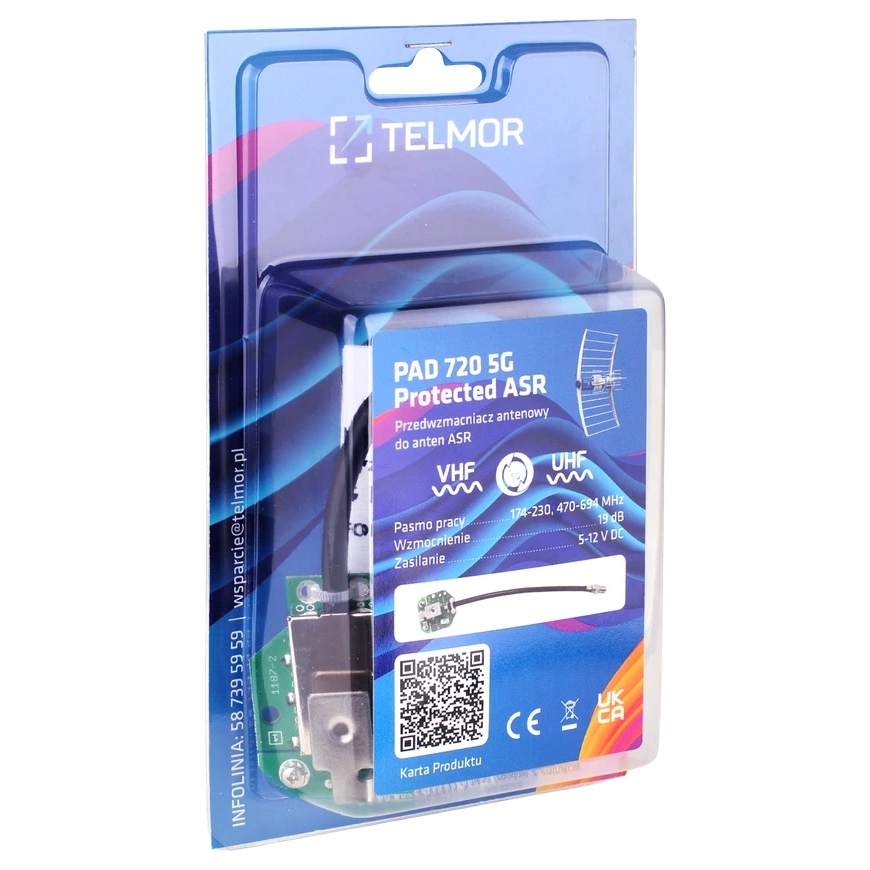

Amplifier Telkom Telmor ASR-PAD 720 VU antenna amplifier
5024488 ANT0085.2
5903953012753
Shipping 6-10 b.d.
All about the product
-----------
Characteristics
-----------
Supports VHF (174–230 MHz) and UHF (470–694 MHz) bands
Powered by the TV (5 V DC) or from a 12 V DC splitter
The lowest self-noise level in the market!
High resistance to intermodulation
Low power consumption
Full compliance with the RED directive
Suitable for ASR antennas manufactured 20 years ago!
-----------
Specifications
-----------
Operating range: FM / VHF / UHF
Working frequency range: 174–230 and 470–694
Gain: 18 dB +/- 2 dB
Attenuation outside the working band: >30dB / 700MHz
Maximum output signal level: 105 dBuV
Noise figure: 2.5 dB
Input/output impedance: 300 ohms / 75 ohms
Power supply: 5...12 V DC
Current consumption: 30 mA +/- 3 mA
Output connector type: "F" type socket
Net weight: 0.05 kg
The PAD-720 antenna preamplifier is designed to amplify weak terrestrial TV signals received by ASR series receiving antennas. It features a next-generation SAW filter that effectively protects against interference.
The PAD-720 preamplifier is intended for use only with ASR antennas. The device is powered by a coaxial cable from the output. Due to the wide working voltage range (5–12 V), this amplifier can be powered directly from the receiver or TV (these devices must be able to supply 5 V DC) or via an external power isolator (with a power supply), such as ZZA-7 or TT-PS 12V.
Effectively protects against strong LTE/5G signals in the 700, 800, and 900 MHz frequency bands and from LTE450.
If your ASR antenna has stopped working, don’t throw it away! Purchase the PAD-720, save money, install it, and use it with new technologies!
