HDMI Signal Generator - Lindy HDMI 4K60 Signal Generator and Display Emulator 32683 Black
139,00 €
119.00 €
Monthly payment from 3,96 €
5021357 32683
4002888326834
Shipping 14-16 b.d.
You are interested in this product?
All about the product

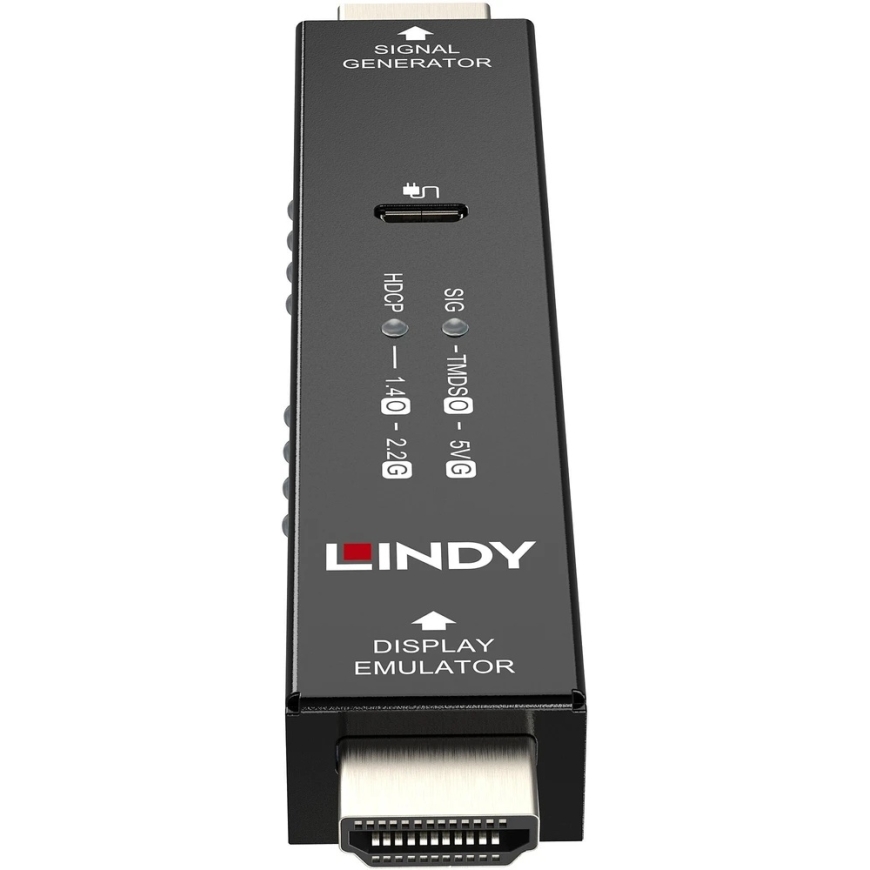

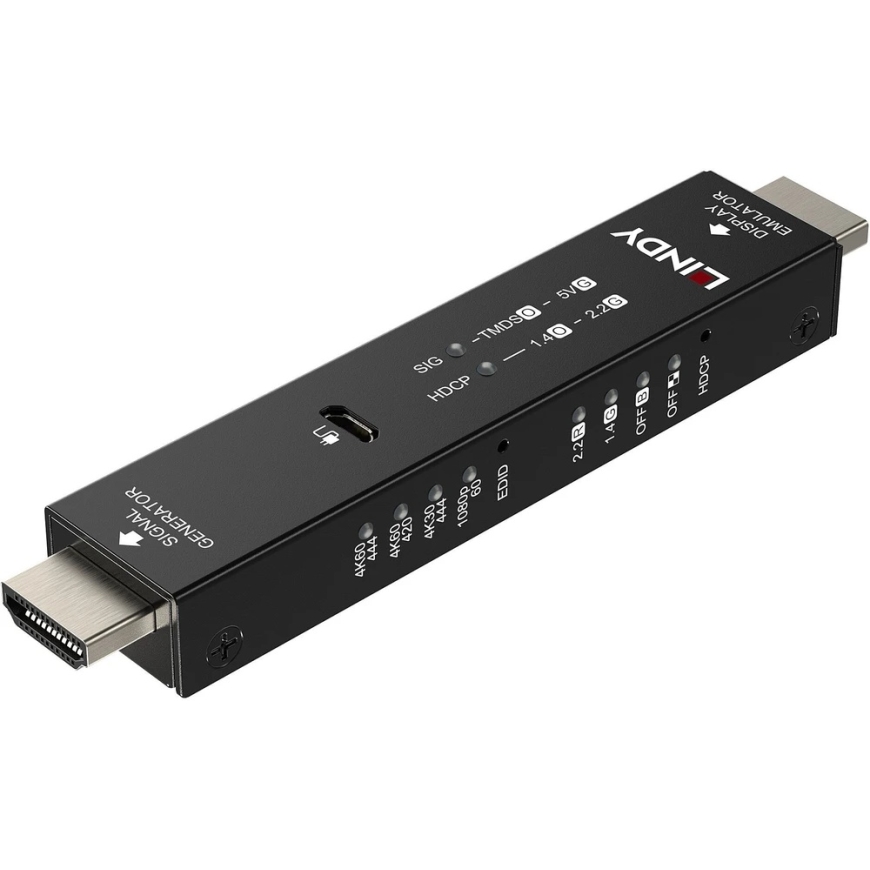

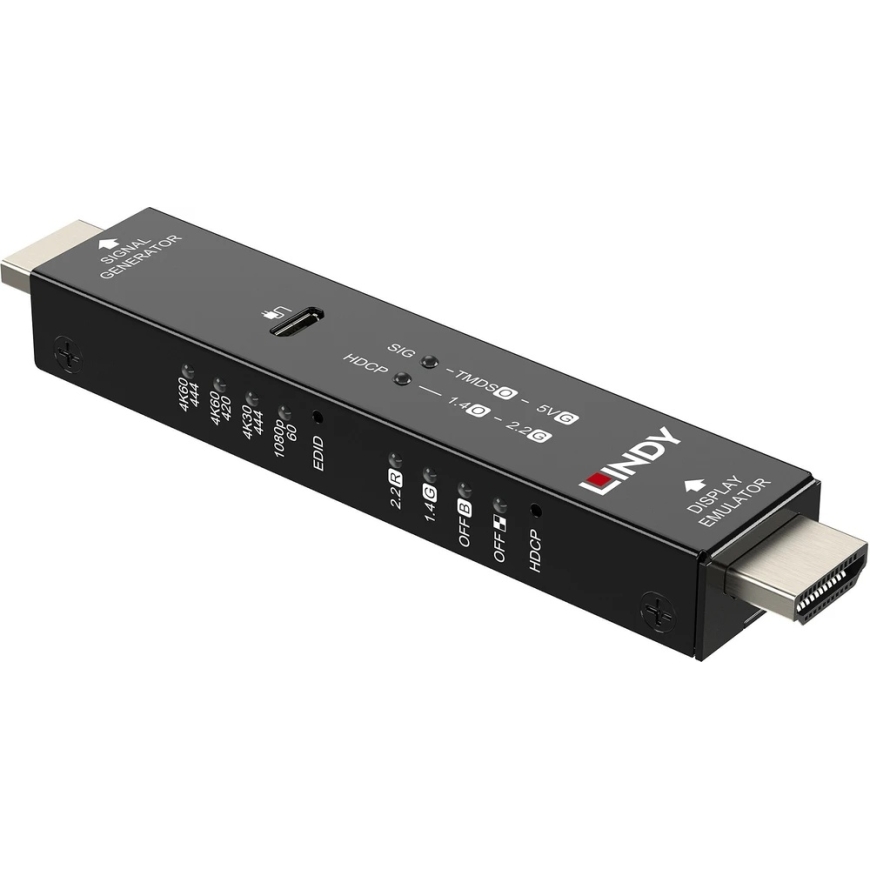

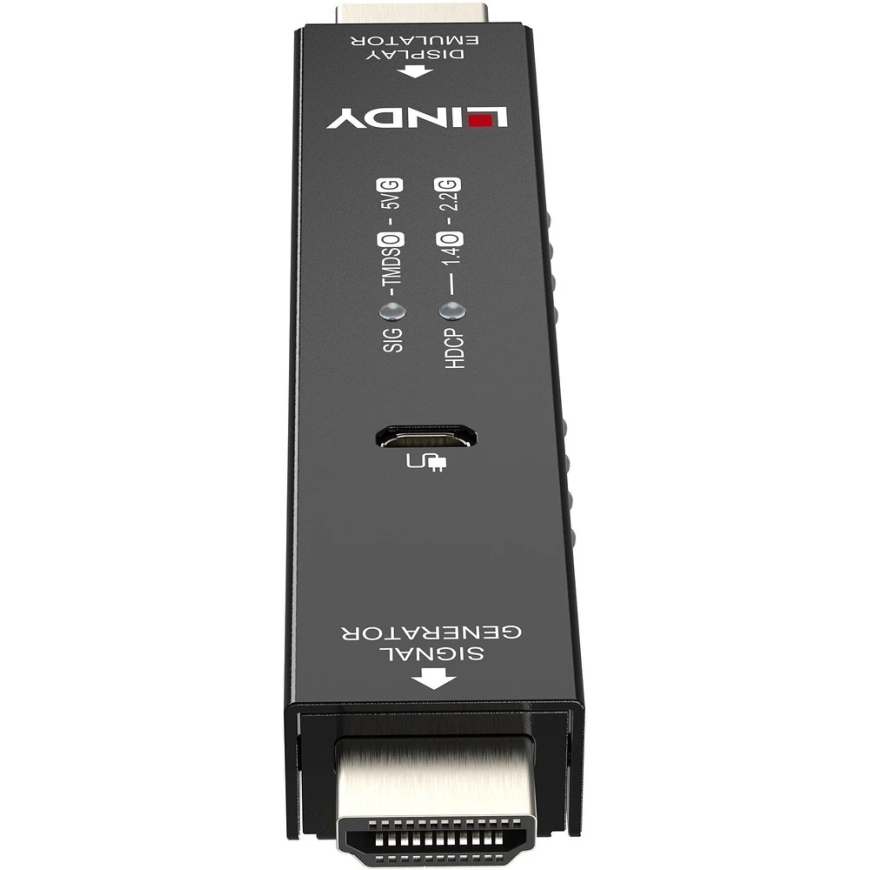

Lindy HDMI 4K60 Signal Generator and Display Emulator 32683
A compact HDMI 2.0 signal generator and display emulator supporting up to 3840 × 2160 resolution at 60 Hz, 18 Gbps bandwidth, HDCP 2.2/1.4, selectable EDID modes, and HDCP analysis. The black metal device measures 100 × 22 × 13.6 mm and features male HDMI input and output connectors, USB Micro-B power, and control via micro buttons.
- HDMI 2.0 signal generator and display emulator for testing HDMI equipment and troubleshooting
- Supports up to 3840 × 2160 resolution at 60 Hz, 4:4:4 8-bit color, and 18 Gbps bandwidth
- Supports HDCP 2.2 and 1.4 and includes HDCP analysis functionality
- Selectable EDID modes: 4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4, and 1080p 60 Hz
Product Information | |
|---|---|
| Product Type | HDMI 4K60 Signal Generator and Display Emulator |
| Brand | Lindy |
| Model | 32683 |
| Color | Black |
| Purpose | For testing and troubleshooting HDMI equipment, including signal, display, EDID, and HDCP analysis |
Technical Specifications | |
| HDMI Standard | HDMI 2.0 |
| HDMI Interface | HDMI |
| Control | Micro buttons |
| HDCP Analysis | Supported |
| EDID Modes | Selectable 4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4 and 1080p 60 Hz modes |
| Power Consumption | 1.2 W |
Connections | |
| HDMI Input | HDMI Type A male |
| HDMI Output | HDMI Type A male |
| Power Connector | USB Micro-B female |
Physical Specifications | |
| Dimensions | 100 × 22 × 13.6 mm (L × W × H) |
| Weight | 0.04 kg |
| Housing Material | Metal |
| Operating Temperature | From −5 °C to 55 °C |
| Storage Temperature | From −25 °C to 70 °C |
| Relative Humidity | 10–90 %, non-condensing |
Package Contents | |
| Included Items |
|
Safety Information | |
| Safety Warning | Use the device only for testing HDMI signals, emulating displays, and related troubleshooting. Connect it to a suitable USB power source and keep it away from moisture, excessive heat, and physical damage. |
