The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

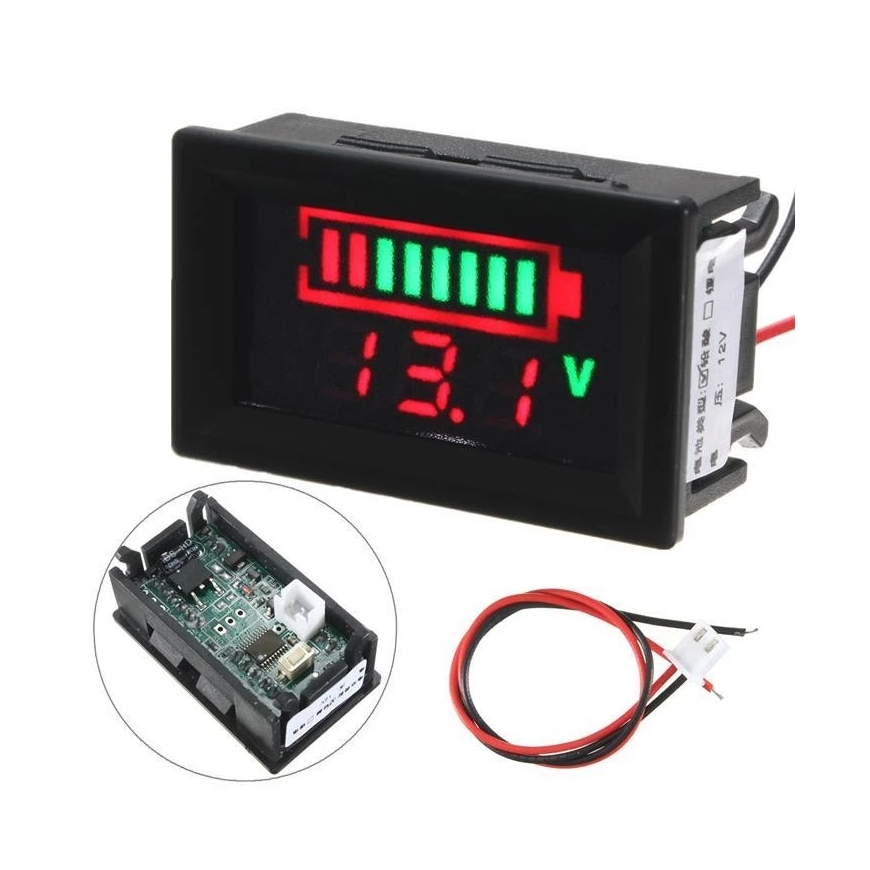

Oem Lead Acid Battery Digital Capacity Indicator
5021348 AS0489
4779044515646
Shipping 5-9 b.d.
All about the product
1. Double display: the battery capacity + voltage. Show more intuitive.
2. Up line: 8 colorful bar shows the battery power, the down line: voltmeter displays battery voltage, the voltage table decimal point automatically shift, accuracy is higher.
3. Use of a wider range: 18650 lithium polymer lithium battery pack, lead-acid batteries, electric car batteries, and other types of electric equipment can be used.
Indicator:
Battery voltage is greater than 11.1V, 1 led indicator is lit.
Battery voltage is greater than 11.3V, 2 led indicator is lit.
Battery voltage is greater than 11.6V, 3 led indicator is lit.
Battery voltage is greater than 11.9V, 4 led indicator is lit.
Battery voltage is greater than 12.2V, 5 led indicator is lit.
Battery voltage is greater than 12.5V, 6 led indicator is lit.
Battery voltage is greater than 12.9V, 7 led indicator is lit.
Battery voltage is greater than 13.3V, 8 led indicator is lit.
NOTICE: It will only display voltage if not measure lead-acid battery!
Specifications:
Item Type: Battery Power Capacity Indicator Voltmeter
Working current: 5-15mA (The lower the battery voltage is , the smaller current is)
Eight electricity Resolution: 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%
Voltmeter accuracy: 1%
Working temperature: -10 ~ +65°
Operating Humidity: 10 ~ 80%
Material: ABS
Size: 48×29×21mm/1.89×1.14×0.83in (Approx.)
LED Indicator Color: Blue/Red (Optional)
Quantity: 1PC
