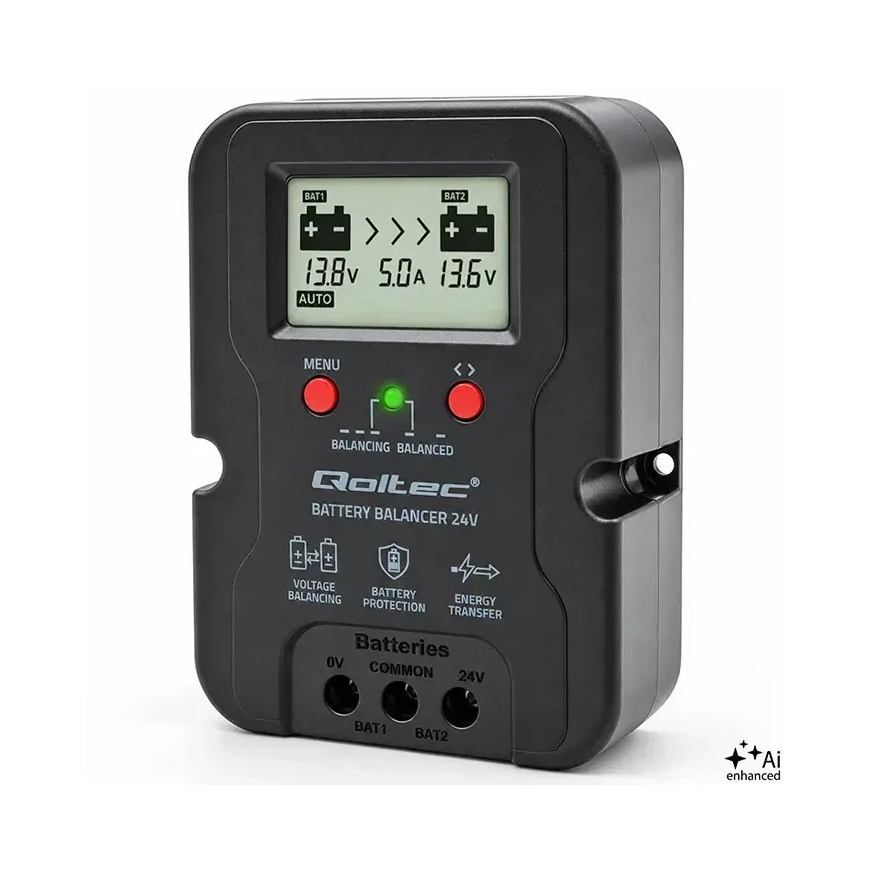

Qoltec Voltage Balancer 24V for 2 x 12V Batteries | 5A | AGM GEL LiFePO4 | LCD
5019661 5901878510996
Shipping 6-10 b.d.
All about the product
Reliable compact device supporting the long and trouble-free operation of 12V battery packs
Automatically balances voltage differences between batteries, protects against damage, and increases their lifespan by ensuring stable and safe operation of the 24V system – all in a compact, fire-resistant housing. Does not require connection to the 230V network, operates fully autonomously drawing energy from connected batteries . An ideal solution for demanding and prolonged applications – from photovoltaics to electric vehicles.
Key functions and technical features
• Automatic voltage balancing between 12V batteries in 24V systems• Maximum balancing current: 5A
• Built-in reverse polarity protection
• Supports: 2 x 12V batteries – both lead-acid (AGM, GEL, Deep cycle) and LifePo4
• Display showing the device's operation
• Recommended battery capacity 1Ah – 1000Ah
• Powered directly from the batteries - does not require connection to the 230V AC network
• Highly precise integrated circuits reduce component deviations
How to connect the voltage balancer
Before connecting the voltage corrector, make sure both batteries are fully charged, of the same type, and have identical capacity . The voltage difference between them should not exceed 0.2V. It is also crucial that the batteries are correctly connected in series, and the total system voltage is approximately 24V. Connecting the balancer is simple - just connect the black wire to the negative, the red to the positive of the entire 24V set, and an additional wire to the point between the batteries – the balancer will take care of the rest.

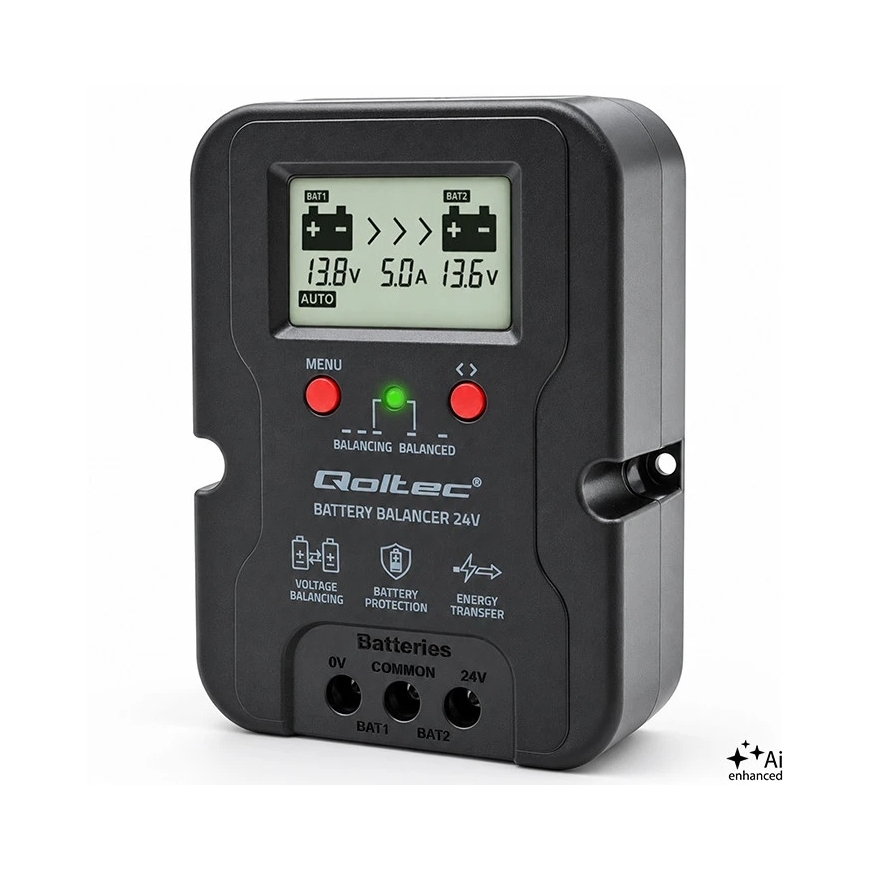

Clear LCD display
The LCD display presents the most important information regarding the device's operation, such as battery voltages, current status of the balancing process, and balancing current. From the main screen, the user can manually initiate the balancing process and select the appropriate balancing mode tailored to the specific application and battery system configuration.
• Automatic balancing mode - the device initiates balancing only when the set is fully charged or when the voltage is low
• Forced balancing mode - intended for sets with significant voltage imbalance
• Stop balancing - stops the balancing process
• Manual balancing mode - intended for testing the balancer or temporarily equalizing battery voltages

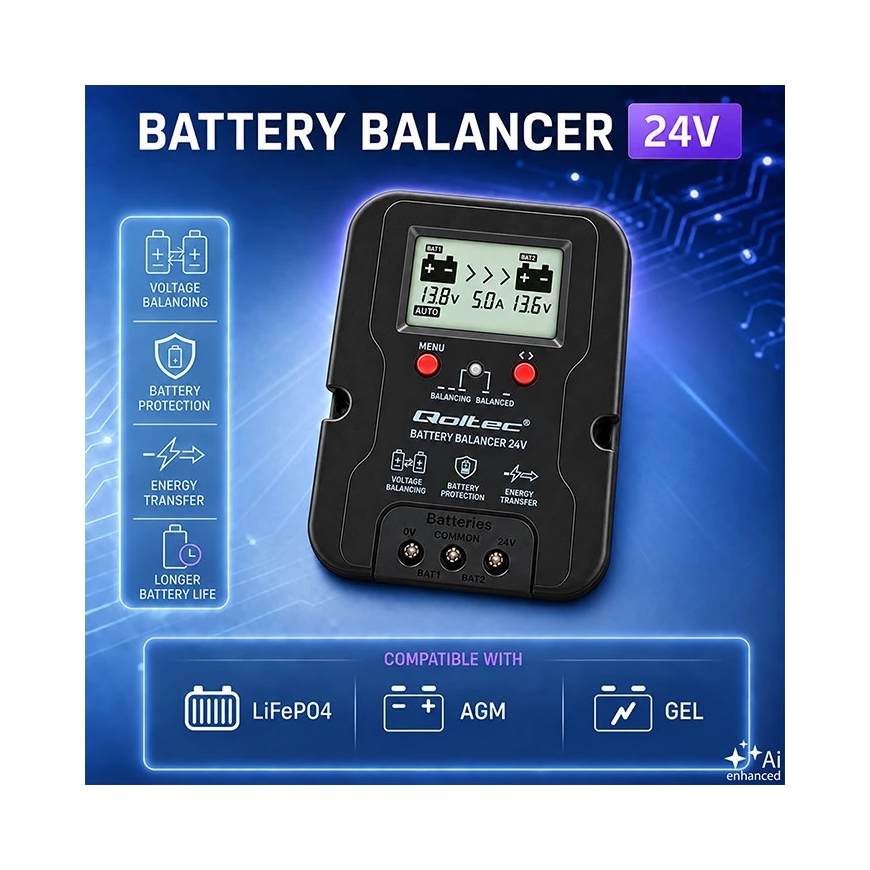

For campers, yachts, photovoltaics - Compatible with AGM, GEL, LiFePO4, Deep cycle batteries
The 24V voltage balancer is an excellent choice wherever you use two connected in series 12V batteries. It works perfectly in campers, caravans, boats, solar systems, electric vehicles, forklifts, and emergency power supply installations . It easily works with lead-acid batteries (AGM, GEL, Deep cycle), as well as lithium ones, such as LiFePO4 . This small device can significantly extend the life of the entire battery and prevent costly failures.
Product covered by a 24-month warranty
Do you care about the high quality of the product you are buying? Our solutions will meet your expectations. The balancers we offer are covered by a 24-month warranty valid from the date of purchase. Take care of your battery's condition and enjoy the assurance that they are always in the best condition!
