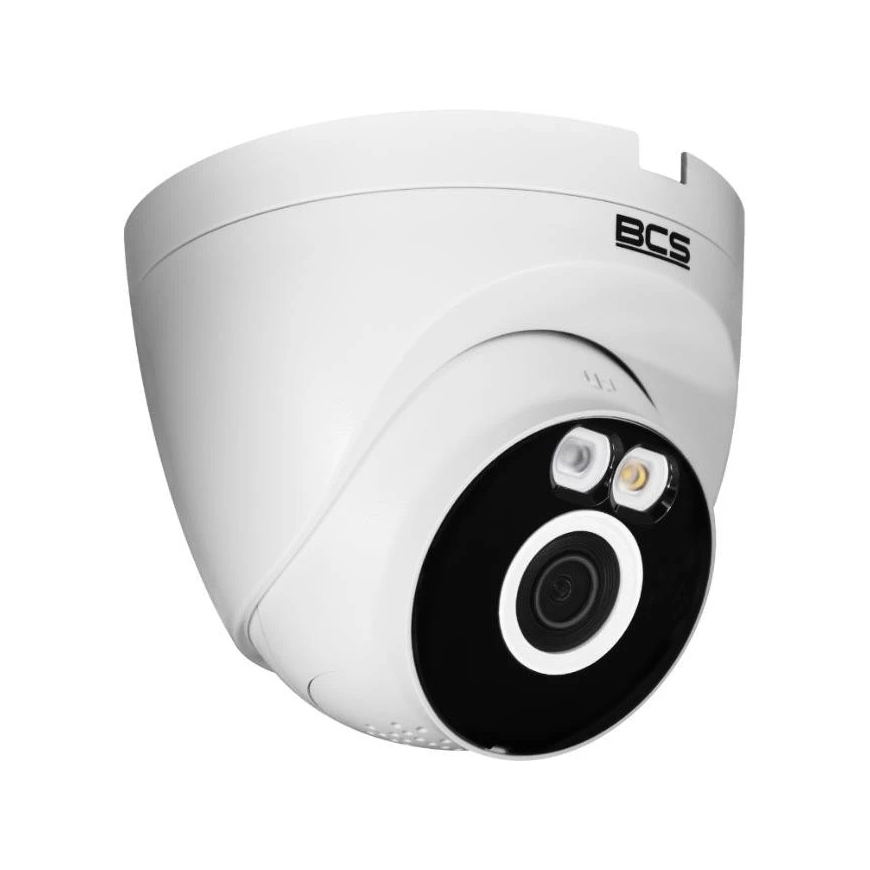

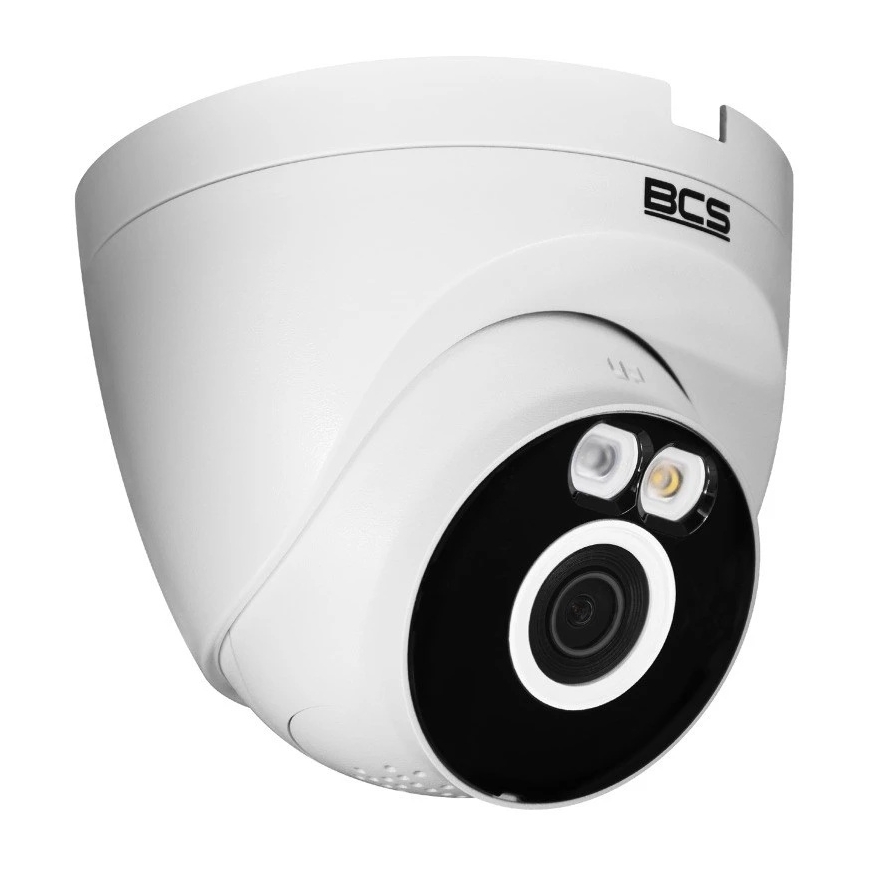

BCS BCS-L-EHOME02 security surveillance camera Dome IP security camera Indoor and outdoor 2880 x 1620 pixels Ceiling / wall
5019592 BCS-L-EHOME02
5904890717084
Shipping 4-6 b.d.
All about the product
Weight and Dimensions
Height: 102.2 mm,
Diameter: 11 cm,
Length: 109.9 mm,
Width: 109.9 mm,
Weight: 300 g,
Power Management
Power Consumption (max): 7 W,
Power Source Type: DC,
Storage
Compatible Memory Cards: MicroSD (TransFlash),
Built-in Card Reader: Yes,
Maximum Memory Card Size: 256 GB,
Built-in Hard Drive: No,
Network
Bluetooth: No,
Wi-Fi Standards: Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 6 (802.11ax),
Ethernet LAN Connection: Yes,
Wi-Fi: No,
Construction
Shape: Dome,
Product Color: White,
Housing Material: Metal,
Mounting Type: Ceiling / Wall,
International Protection (IP) Code: IP67,
IK Code: IK08,
Sound
Voice Codecs: G.711Mu, G.711a, PCM, G.726,
Built-in Microphone: Yes,
Built-in Speakers: Yes,
Package Data
Package Width: 139 mm,
Package Depth: 122 mm,
Package Height: 147 mm,
Technical Information
Number of Video Streams: 2,
IR Distance: 0 - 30 m,
Performance Characteristics
Type: IP Security Camera,
Wide Dynamic Range (WDR): Yes,
Outdoor and Indoor Support: Yes,
Connectivity Technology: Wired and Wireless,
Security
Mirror: Yes,
Connectivity
Number of Ethernet LAN (RJ-45) Ports: 1,
Package Contents
Number of Cameras: 1,
Camera
Camera Maintenance Type: Electronic, Mechanical,
Lens Field of View, Diagonal: 129°,
Rotation: Yes,
Lens Field of View, Horizontal: 108°,
Minimum Illumination: 0.0007 lx,
Field of View (FOV) Angle: 129°,
Camera Shutter Speed: 1/3 - 1/100000 s,
Tilt Angle: 180°,
Lens Field of View, Vertical: 57°,
Number of Privacy Masking Areas: 8,
Environmental Conditions
Operating Relative Humidity Range: 0 - 95%,
Operating Temperature Range (TT): -40 - 60 °C,
Control Functions
Data Transmitted to Cloud Platform: No,
Lens System
Fixed Focus: Yes,
Minimum Aperture Number: 1.6,
Focal Length: 2.8 mm,
Maximum Aperture Number: 1.6,
Number of Lenses: 1,
Zoom Capability: Yes,
Video
Noise Reduction Technology: 3D noise reduction,
Video Quality Adjustment: DNR,
Light Effect Compensation (HLC): Yes,
Maximum Resolution: 2880 x 1620 pixels,
Backlight Compensation: Yes,
Gain Control Type: Automatic / Manual,
Noise Reduction: Yes,
Total Megapixels: 5 MP,
Supported Video Formats: M-JPEG, H.264B, H.265+, H.264+, H.264, H.265,
Video Streaming: Yes,
Night Vision
Night Vision: Yes,
LED Type: Infrared / White,
Video Sensor
Optical Sensor Size: 25.4 / 2.7 mm (1 / 2.7"),
Number of Sensors: 1,
Sensor Type: CMOS,
Panoramic Camera
Signal to Noise Ratio (SNR) (Panoramic Camera): 56 dB,
