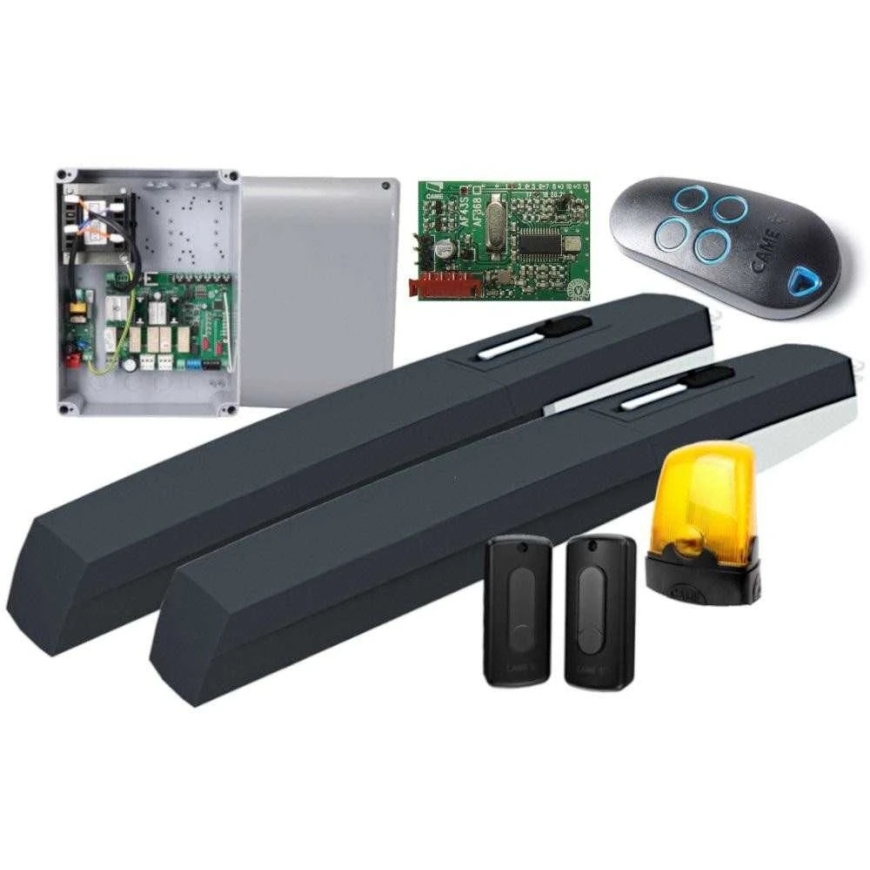

CAME AXL 22 ECO TOP kit for 4.4 m double-leaf gates
379.01 €
Monthly payment from 10,66 €
5018493 8K01MP-059
8050456100306
Shipping 8-12 b.d.
You are interested in this product?
All about the product
CAME AXL 22 ECO TOP set for 4.4 m double gates
Model: 8K01MP-059
Main features:
- Maximum gate leaf weight: 250 kg
- Gate power supply: 230 V, motor 24 V
- Gate operation: Mechanical
- Maximum gate leaf length: 2.2 m
ATTENTION!
- A leaf 2.2 m long can weigh a maximum of 200 kg
- A leaf 1.7 m long can weigh a maximum of 225 kg
- A leaf 1 meter long can weigh up to 250 kg
Technical specifications and dimensions:
- Protection class: IP44
- Control unit power supply: 230 V AC
- Motor power supply: 24 V DC
- Power consumption in standby mode: 5 W
- Maximum power: 120 W
- Duty cycle: 50%
- Opening time to 90 degrees: 15 sec.
- Operating temperature: from -20 to +55 degrees Celsius
- Insulation class: 3
- Gear ratio: 1/36
- Pulling force: 400 N - 200 N
- Maximum opening angle: 115 degrees
