The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

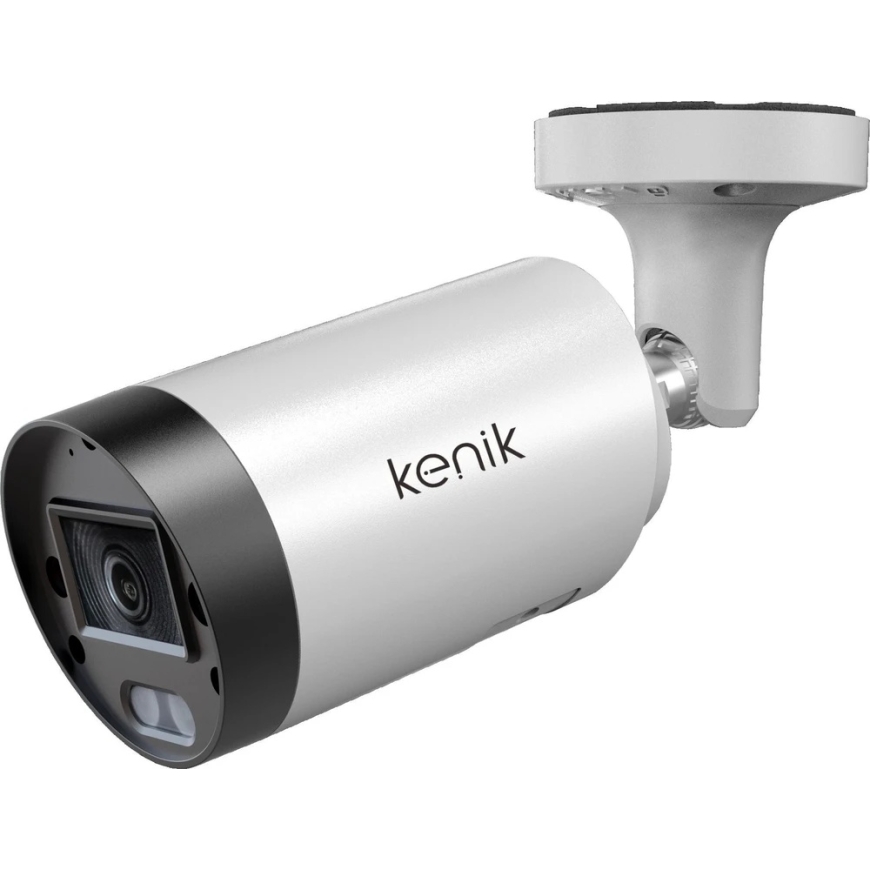

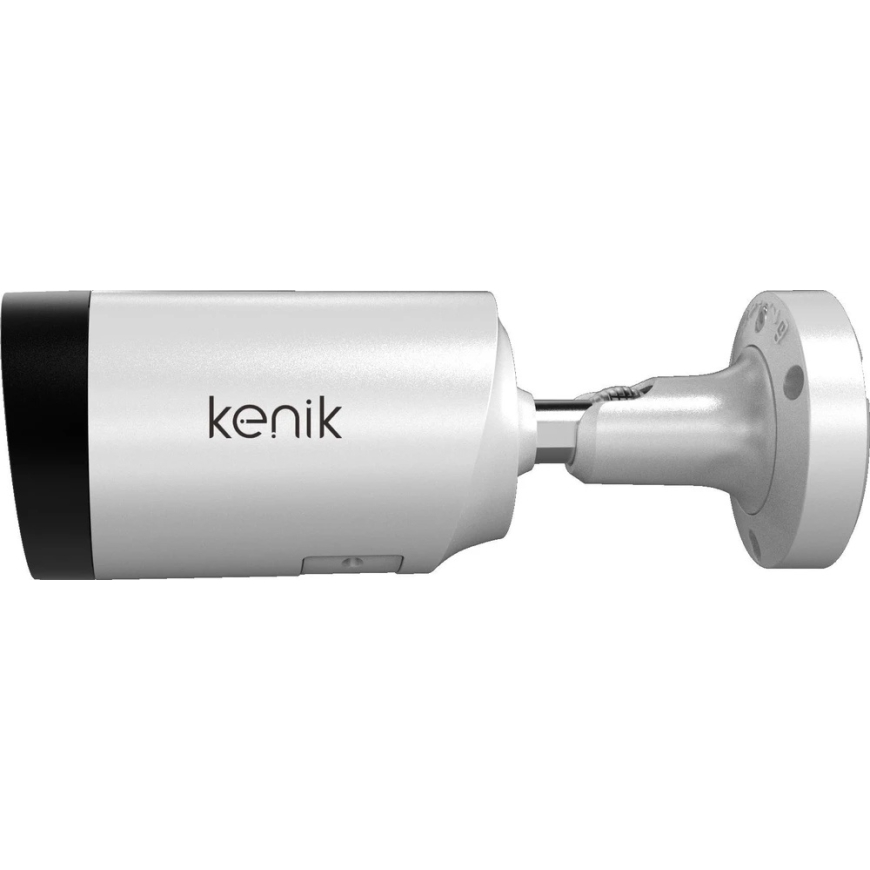

KENIK KG-8P30TAS-IL IP CAMERA (2.8mm)
209.00 €
Monthly payment from 6,28 €
5017458 KG-8P30TAS-IL
5903716301643
Shipping 8-12 b.d.
You are interested in this product?
All about the product
KENIK KG-8P30TAS-IL IP Camera (2.8 mm)
Model: KG-8P30TAS-IL
Main Features:
- Resolution 8MPX (3840 × 2160)25 frames per second
- H.265+/H.264+ compression
- WDR (120 dB), day/night (ICR), 3DNR, AWB, AGC, BLC
- 2.8 mm lens
- Built-in microphone
- Smart dual light reflector (IR + LED) up to 30 m
- MicroSD card reader up to 512 GB
- Smart video analysis IVS: SMD + PP 2.0 (person/vehicle/motorcycle), line crossing, intrusion detection, entering/exiting area, loitering, face detection
- 3 streams
- Reset button
- alarm input/output 1/1
- audio input/output 1/1
- Corridor mode
- Dual power source 12 V DC / PoE (802.3af)
- IP67 rated housing
- Supports ONVIF 2.6 standard
- Mobile viewing on smartphone (“Android”, “iPhone”)
- Free software in Polish for registering on your computer
Purpose
The camera is designed for outdoor use. The housing allows it to be mounted on ceilings or walls. It is ideal for monitoring parking lots, sports fields, arenas, squares, government buildings, schools, etc.
Technical Specifications
| Model | KG-8P30TAS-IL |
| Image Sensor | 1/2.7 inch CMOS progressive scan |
| Minimum Illumination | Color: 0.007 lux (F1.4, AGC enabled), 0 lux in ambient light |
| Illumination Range | 30 m (IR light), 30 m (warm light) |
| Smart IR | Yes |
| Lens | |
| Focal Length | 2.8 mm |
| Aperture | F1.4 |
| Field of View (FOV) | Horizontal: 109°, Vertical: 58°, Diagonal: 131° |
| Lens Mount | M12 |
| Compression Standard | |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 Profile | Baseline / Main / High |
| H.265 Profile | Main |
| Video Bitrate | 11 Kbps–16 Mbps |
| Triple Stream | Supported |
| Audio Compression | G.711A / G.711U |
| Audio Bitrate | 64 Kbps |
| Image | |
| Max Video Resolution | 8 MP (3840 × 2160) |
| Main Stream | 50 Hz: 25 fps 8 MP (3840 × 2160), 25 fps 6 MP (3200 × 1800), 25 fps 5 MP (3072 × 1728), 25 fps 4 MP (2560 × 1440), 25 fps 1080P (1920 × 1080) 60 Hz: 30 fps 8 MP (3840 × 2160), 30 fps 6 MP (3200 × 1800), 30 fps 5 MP (3072 × 1728), 30 fps 4 MP (2560 × 1440), 30 fps 1080P (1920 × 1080) |
| Secondary Stream | 50 Hz: 25 fps 720P (1280 × 720), 25 fps D1 (704 × 576), 25 fps CIF (352 × 288) 60 Hz: 30 fps 720P (1280 × 720), 30 fps D1 (704 × 480), 30 fps CIF (352 × 240) |
| Third Stream | 50 Hz: 25 fps CIF (352 × 288) 60 Hz: 30 fps CIF (352 × 240) |
| Video Settings | Brightness, contrast, saturation, hue, sharpness |
| Shutter Speed | Automatic / manual, 1/3 sec. ~ 1/100000 sec. |
| Day/Night Mode | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| Noise Reduction | 2D/3D DNR |
| BLC / HLC / ROI / Rotation | Supported |
| Minimum developed country | Yes |
| Smart Features | |
| Major Events | motion detection (SMD person/vehicle/motorcycle), video masking |
| Smart Events | Line crossing, intrusion detection, entering/exiting area (people/vehicle/motorcycle), loitering detection |
| People Counting | NO |
| Face Detection | Yes |
| Network | |
| Online Journal | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, cloud protocol |
| System Compatibility | ONVIF (S, G, T profiles), SDK |
| Security | Password protection, complex password, HTTPS encryption, IP address filtering, basic and digest authentication HTTP/HTTPS, TLS 1.1/1.2 support, WSSE and digest authentication for Open Network Video Interface (ONVIF). |
| Users | Up to 40 users |
| Web Browsers | Requires direct view with plugins: IE 10, IE 11 Direct view without plugins: “Chrome 57.0+”, “Firefox 52.0+”, “Edge 89+” Local service: “Chrome 57.0+”, “Firefox 52.0+” |
| Mobile App | “Android”, “iOS” |
| Active Deterrence | |
| Red and Blue Traffic Light Warning | NO |
| Audio Warning | NO |
| Interfaces | |
| Communication Interface | 1 × RJ45 10/100/1000M adaptive Ethernet |
| Internal Memory | Up to 512 GB |
| Microphone | Yes, built-in |
| Speaker | NO |
| Audio Input/Output | 1/1 |
| Input/Output Alarm | 1/1 |
| RS485 | missing |
| Reset Button | Yes |
| General | |
| Operating Conditions | -40°C ~ 60°C, humidity ≤95% (non-condensing) |
| Power Source | 12 V DC ±25 % |
| PoE | PoE (802.3 at) |
| Power Consumption | Max. 12.2 W |
| Protection Level | IP67 |
| Housing Material | Metal |
| Dimensions | Φ76 × 215.8 mm |
| Total Weight | 945 g |
