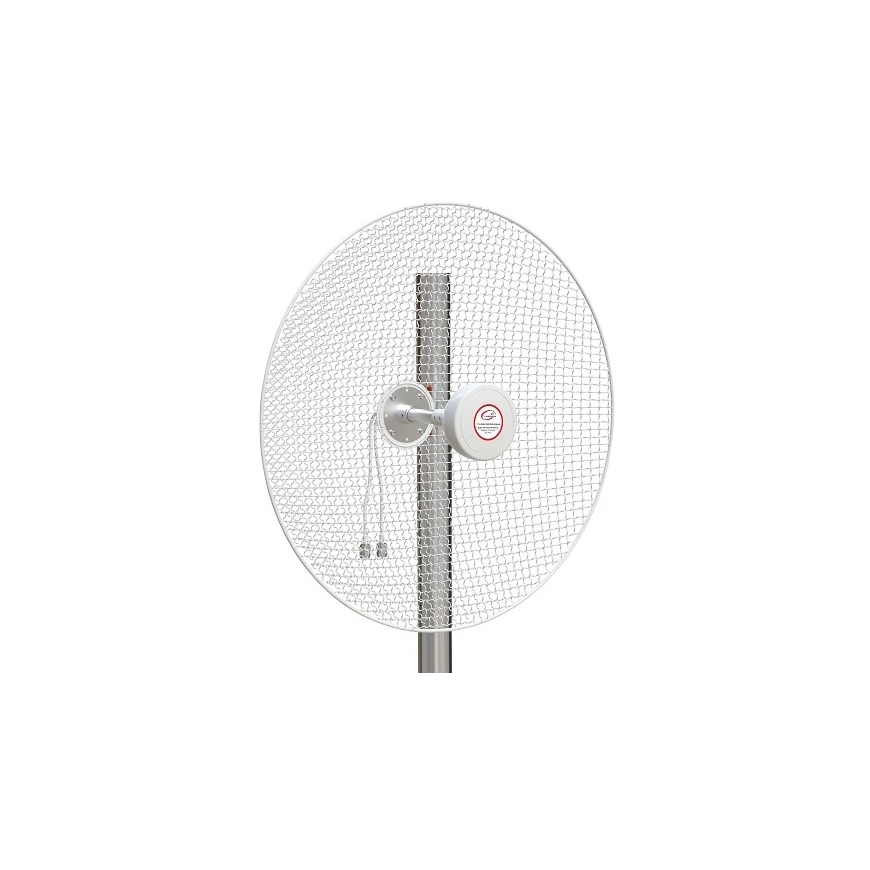

Mobile Communication Antenna - HiSmart Dual Polarization 2×2 MIMO Parabolic Antenna 20/22 dBi 1.7–4.2 GHz
240,31 €
239.32 €
Monthly payment from 7,06 €
5015756 9990000993505
Shipping 10-12 b.d.
You are interested in this product?
All about the product
HiSmart 5G/LTE/CBRS 2×2 MIMO Parabolic Antenna 1.7–4.2 GHz
Dual-polarization 2×2 MIMO directional parabolic antenna designed for LTE, 5G, CBRS, and compatible Wi-Fi networks. It operates in the frequency ranges of 1710–2690 MHz and 3300–4200 MHz. The gain in the lower band reaches 20 dBi, while in the upper band it reaches 22 dBi. The antenna features two N-female connectors and pole mounting, making it suitable for long-range communication links.
- Dual-polarization 2×2 MIMO directional parabolic antenna for LTE, 5G, CBRS, and compatible Wi-Fi systems
- Wide frequency range of 1.7–2.69 GHz and 3.3–4.2 GHz
- High gain design and narrow beam ensures long-range capability and better signal reception in weak signal areas
- Sturdy construction for outdoor use, lightning protection with continuous grounding, and two N-female connectors
Product Overview | |
|---|---|
| Product Type | Outdoor Dual-Polarization 2×2 MIMO Directional Parabolic Antenna |
| Application | LTE, 5G, CBRS, mobile communication networks, DAS systems, and compatible 2.4 GHz Wi-Fi networks |
| MIMO Configuration | 2×2 MIMO with two independent antenna ports |
| Polarization | Dual slant polarization, ±45° |
Radio Frequency Specifications | |
| Frequency Ranges | 1710–2690 MHz and 3300–4200 MHz |
| Gain | 20 ± 1 dBi at 1.7–2.7 GHz; 22 ± 1 dBi at 3.3–4.2 GHz |
| Horizontal Beamwidth | 15° ± 5° at 1710–2690 MHz; 12° ± 5° at 3300–4200 MHz |
| Vertical Beamwidth | 15° ± 5° at 1710–2690 MHz; 12° ± 5° at 3300–4200 MHz |
| Standing Wave Ratio (VSWR) | < 2.0 |
| Impedance | 50 Ω |
| Isolation | > 20 dB |
| Maximum Power per Port | 50 W |
Connectors and Mounting | |
| Radio Frequency Connectors | 2 × N-female |
| Mounting | Mounting on poles with a diameter of 30–50 mm |
| Antenna Diameter | 600 mm |
| Lightning Protection | Continuous grounding |
Physical Properties | |
| Color | White |
| Weight | About 2 kg |
| Operating Temperature | −40 °C–+70 °C |
Safety Warning | |
| Warning | Use only as intended – as a radio frequency antenna. Ensure the antenna is securely attached, properly grounded, and installed by a qualified professional. Do not touch or service the antenna during storms. Maintain a safe distance from overhead power lines. |
