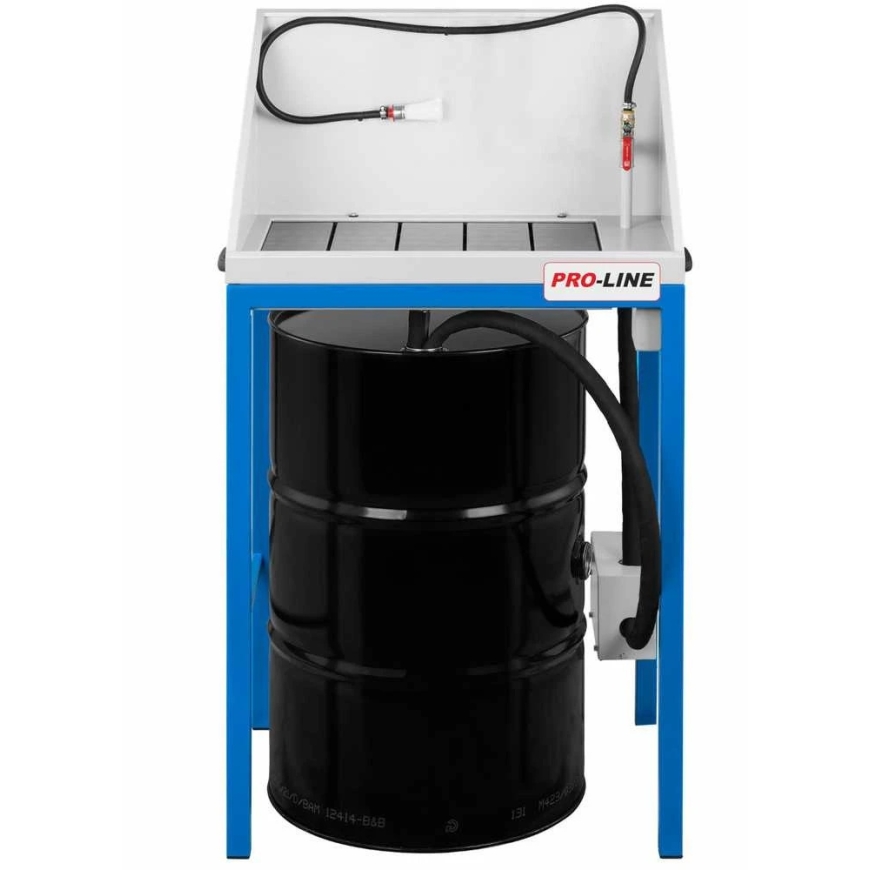

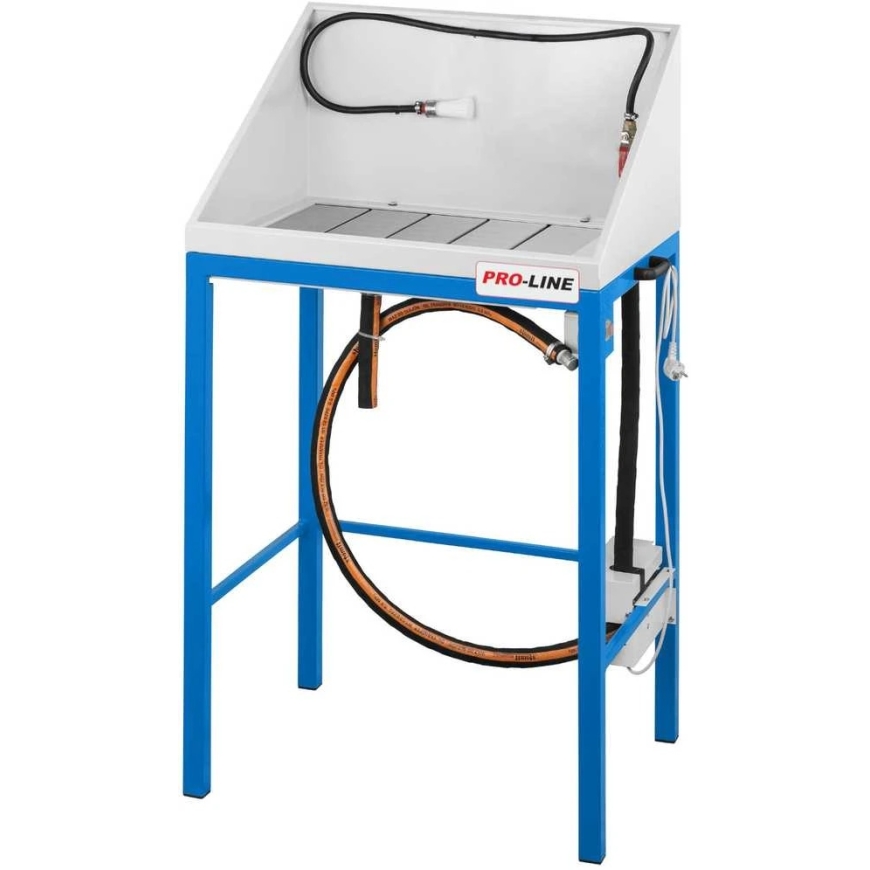

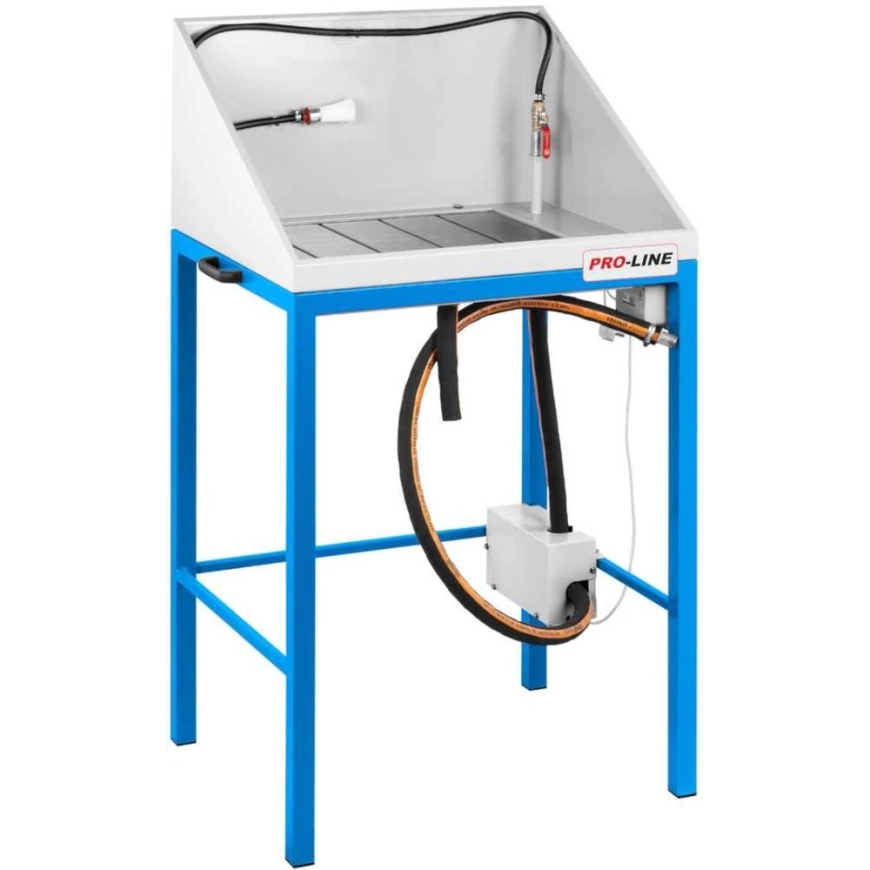

Closed chain workshop washing machine 200 liters for barrels PRO-LINE ECO-CLEAN 800
5015309 1000100
5902578456454
Shipping 6-10 b.d.
All about the product
Item code: 1033405
Workshop Washing Machine is a versatile device designed for the manual cleaning of mechanical components, especially in automotive service centers and industrial workshops. It is ideal for removing greases, oils, and other contaminants from automotive parts and tools. The stationary model is designed for a 200-liter drum and operates within a closed loop cleaning liquid system. The cleaning process utilizes a flow brush through which the cleaning solution is pumped .
Operating Principle of the Washing Machine:

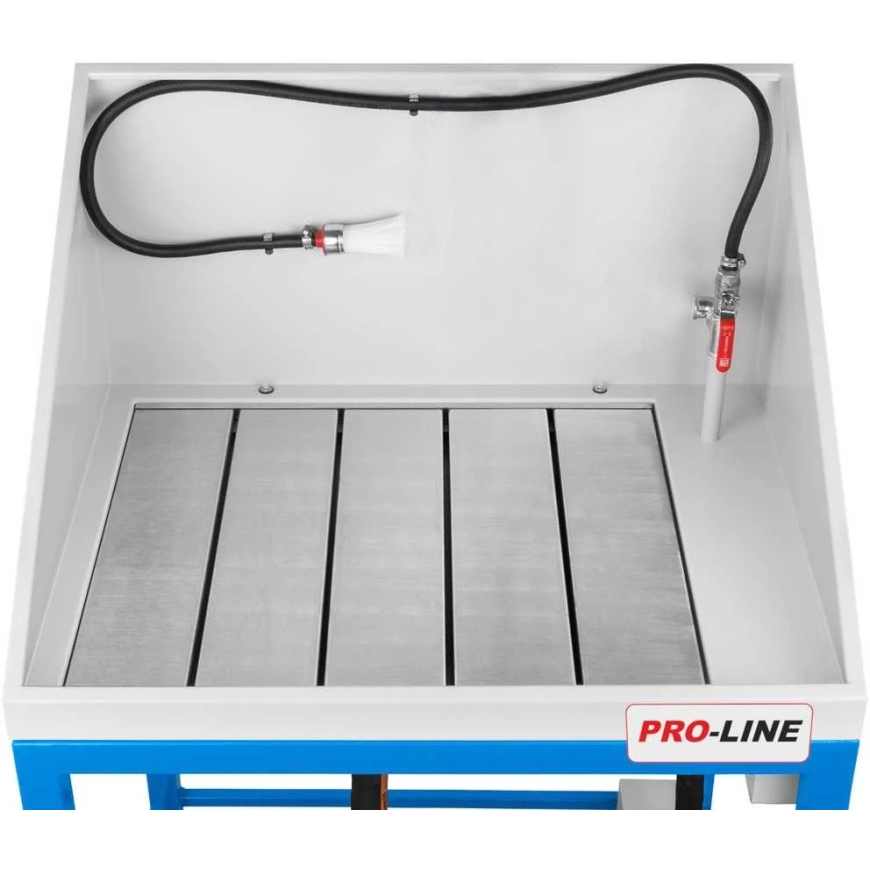

Cleaning occurs on a perforated work surface, beneath which is a drip collection tray. Contaminants dissolved in the cleaning liquid drain by gravity – heavier sediments are captured at the bottom of the tray, while lighter oil compounds are transferred to the filter system. In a closed system, the cleaning liquid is recycled, ensuring efficiency and cost-effectiveness. Liquid circulation is maintained by a suction-pressure pump, and the flow rate through the brush can be precisely adjusted using a flow valve. The drum with cleaning and grease removal liquid is situated directly beneath the work surface.
Product Features:
- - Designed for cleaning mechanical parts and components,
- - Sturdy, resistant construction,
- - Operates on a closed liquid circuit principle,
- - Flow rate adjustable with a valve,
- - Flow brush: nozzle diameter F8 / bristle base diameter F35 / bristle length 55 mm
- - Hard or soft bristle brushes – please specify which brush you would like to use in your order
Additional Options for the PRO-LINE ECO-CLEAN 800 Model (these accessories can only be purchased together with the washing machine):
- - additional segment valve, 50 cm long
Additional options can only be ordered together with the washing machine. They cannot be purchased separately later, as the washing machine does not have mounting holes or sockets for connecting additional accessories.
To order additional options, first add the washing machine to the cart and select the desired accessories.
Technical Specifications:
- - Load capacity - 200 kg
- - Capacity of detergent drum - 200 l
- - Working surface - 780x575 mm
- - Working height - 1000 mm
- - Overall height - 1500 mm
- - Width - 800 mm
- - Depth - 580 mm
- - Weight - 30 kg
- - Power supply - 230 V, 50 Hz
Included in the package:
- - PRO-LINE ECO-CLEAN 800 workshop washing machine - basic version
- - Flow brush ( hard or soft, please specify which one needs to be installed )
- - PL instructions
- - Workshop cleaning fluids NOT REQUIRED
