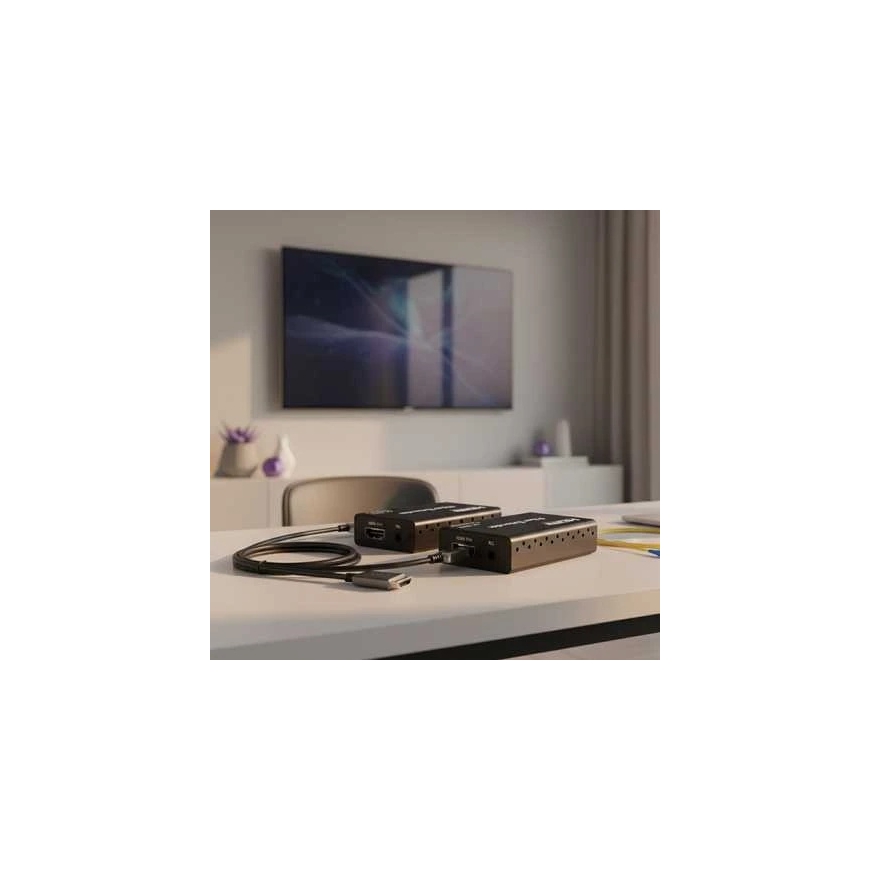

Spacetronik HDMI to Fiber Optic Converter SPH-FO10 4K 30Hz
5014387 5907100099604
Shipping 8-11 b.d.
All about the product
Main Information
The SPH-FO11 HDMI to Fiber Optic KVM Switch can be used for up to 4K 60 Hz resolution, transmitting audio and video signals over a single LC fiber optic cable up to 20 km away. The switch supports HDMI, HDCP 2.2, KVM, IR, and RS232. It operates in a point-to-point mode, has an HDMI loop output, and a 3.5 mm stereo audio output. Installation is simple and quick, requiring no additional software.
Application
Designed for long-distance HDMI signal transmission, monitoring, signal transmission between buildings, large screen installations, and integration with KVM and RS232 systems. Compatible with standard SFP MSA and SFF-8472 protocols.
Specification
Video and Audio Parameters
- HDMI input and output: 4K @ 60Hz, 1080p, 720p, 480p
- HDMI loop output (HDMI input/output loop)
- 3.5 mm stereo audio output
- Audio format: L-PCM
- 3.5 mm IR port support
- USB KVM support
- RS232 support
Transmission and Connections
- Single-mode LC optical fiber
- Wavelength: 1310 nm, 1550 nm
- Transmission range: up to 20 km
- Complies with SFP MSA and SFF-8472 standards
Power Supply and Operating Conditions
- Power Supply: 1.5 A / 5 V DC (transmitting), 1.2 A / 5 V DC (receiving)
- Operating Temperature: -10 to +55 °C
- Humidity Range: 5–90 % (non-condensing)
Dimensions and Weight
- Dimensions: 106 x 106 x 17 mm
- Weight: 273 g
Package Contents
- 1x Transmitter TX
- 1x RX Receiver
- 2x Power Adapters 230V 12V 2.0A
- 1x USB Cable
- 1x IR Receiver and Transmitter
Certifications
- CE, FCC, RoHS, REACH, ISO9001, HDMI RECEIVER, HDCP RECEIVER
