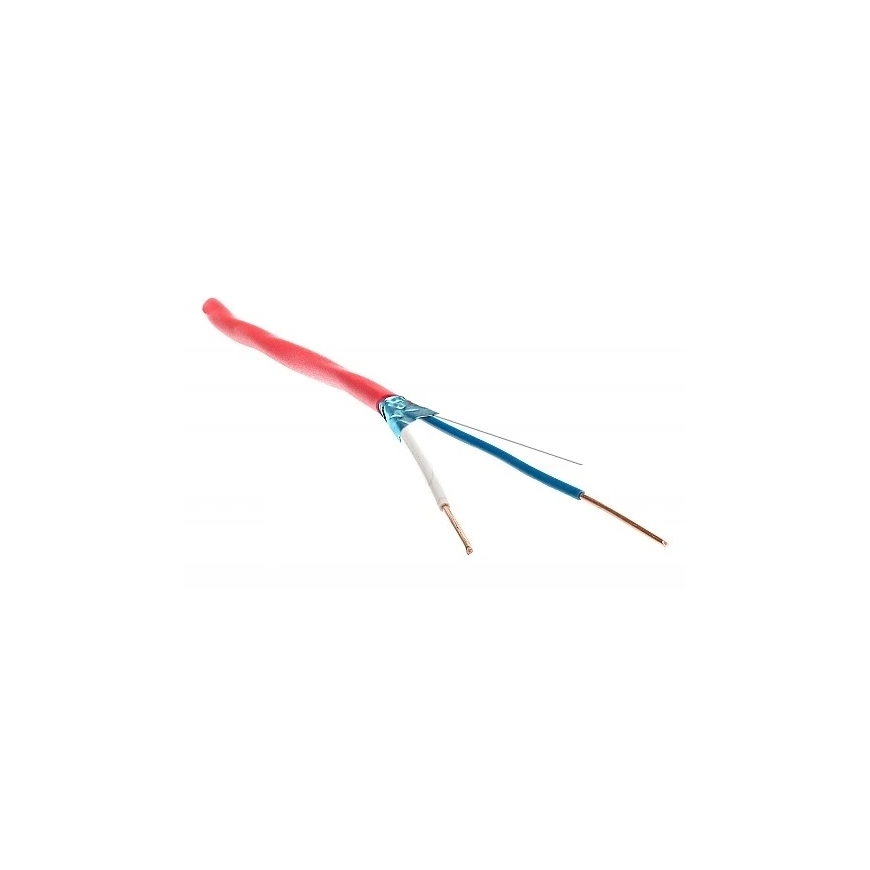

Flame-Retardant Cable Non-Flammable Screened Bitner 1x2x1.0mm HTKSHekw FE180/Ph90 E90 (500 m)
449,00 €
448.92 €
Monthly payment from 12,46 €
5014236 5902956373250
Shipping 5-8 b.d.
You are interested in this product?
All about the product
- Temperature range:
- Fixed installation: -30°C to 80°C
- During installation: -5°C to 50°C
- Operating voltage: 225V
- Testing voltage: AC 1500 V DC 2250 V
- Insulation resistance (minimum): 500 MΩ*km
- Loop resistance at 20°C (maximum):
- 0.8 mm - 75 Ω/km
- 1.0 mm - 48 Ω/km
- 1.4 mm - 26.6 Ω/km
- 1.8 mm - 14.96 Ω/km
- 2.3 mm - 9.6 Ω/km
- 2.8 mm - 6.4 Ω/km
- Mutual capacitance at 1kHz (maximum):
- Unscreened cable: 120 nF/km
- Screened cable: 150 nF/km
- Inductance: 0.7 mH/km
- Min. bending radius: 10 x Ø
