The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Oem Xtreme Solid V Drill Bit Set for Aluminum Profile Transparent
19.00 €
5013664 BLK-VK0002
4772164001495
Shipping 5-9 b.d.
You are interested in this product?
All about the product
High-resistance wheel set designed for large CNC machines. The Xtreme Solid V is designed to run on calibrated aluminum profiles but differs from similar products in that it can withstand extremely high loads and is wear-resistant.

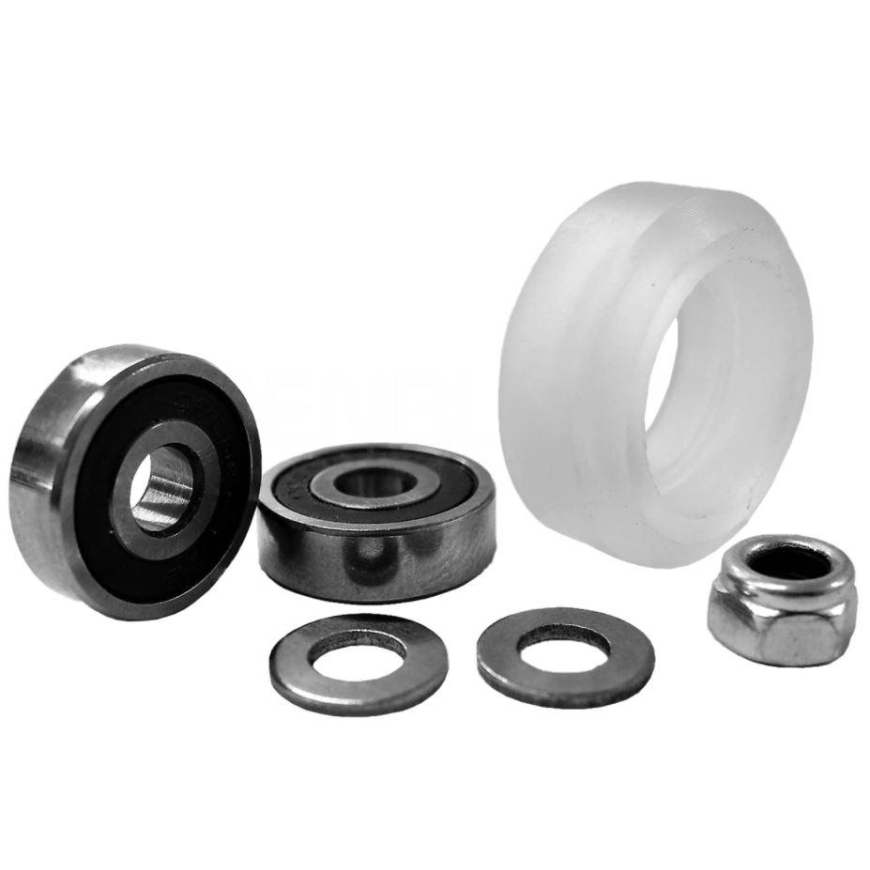

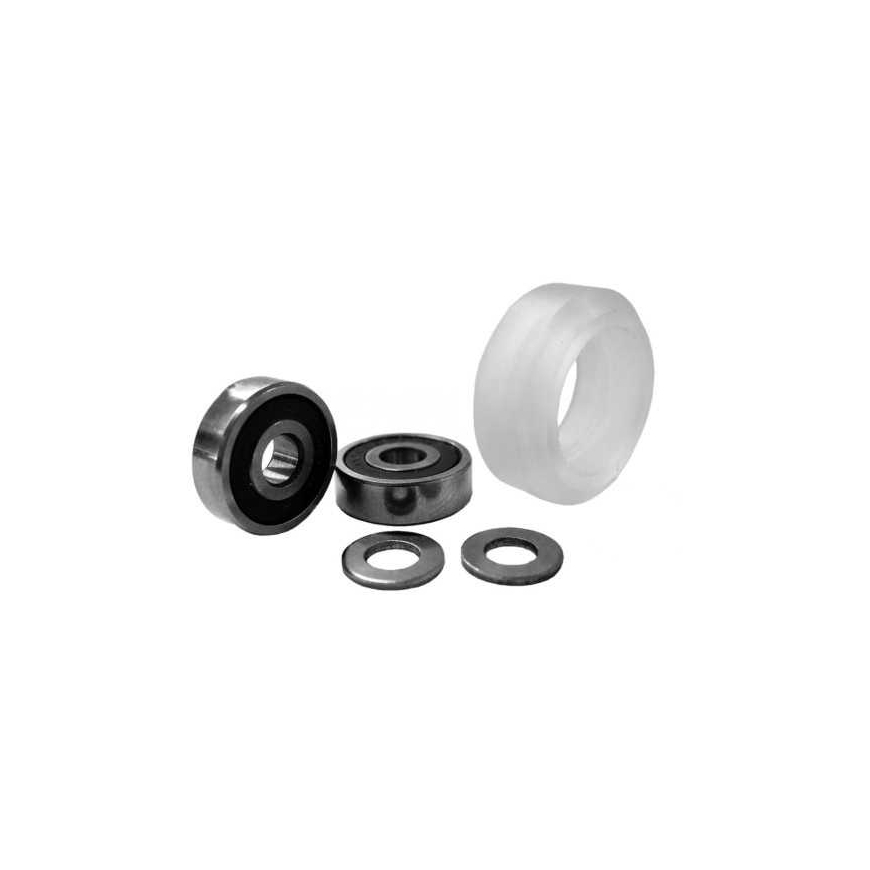

Set includes:
- (1x) Xtreme Solid V wheel
- (2x) ball bearings - 625 RS
- (2x) 5 mm washer
- (1x) M5 nut with nylon locking
Specifications and features:
- Wheel made of very hard transparent polycarbonate, allowing it to withstand extremely high loads and being wear-resistant.
- Flat wheel surface for belt operation
- Self-centering and self-lubricating
- Even weight distribution
- Easily assembled and maintained
- Outer diameter: 23.90 mm
- Inner diameter for bearing: 15.974mm +/- 0.026 mm
- Bearing inner diameter: 5 mm
- Thickness: 10.23 mm
- Rockwell hardness: M 75
- Compression strength: 86 Mpa
Note:
- If lubrication is required for the system, use only silicone lubricant. DO NOT USE synthetic greases or cutting oils.
- It is advisable to evenly distribute the load on the wheels using several pairs in the system.
- Don't forget to choose screws and washers
References and applicability:
- Designed to work in belt or pulley systems
