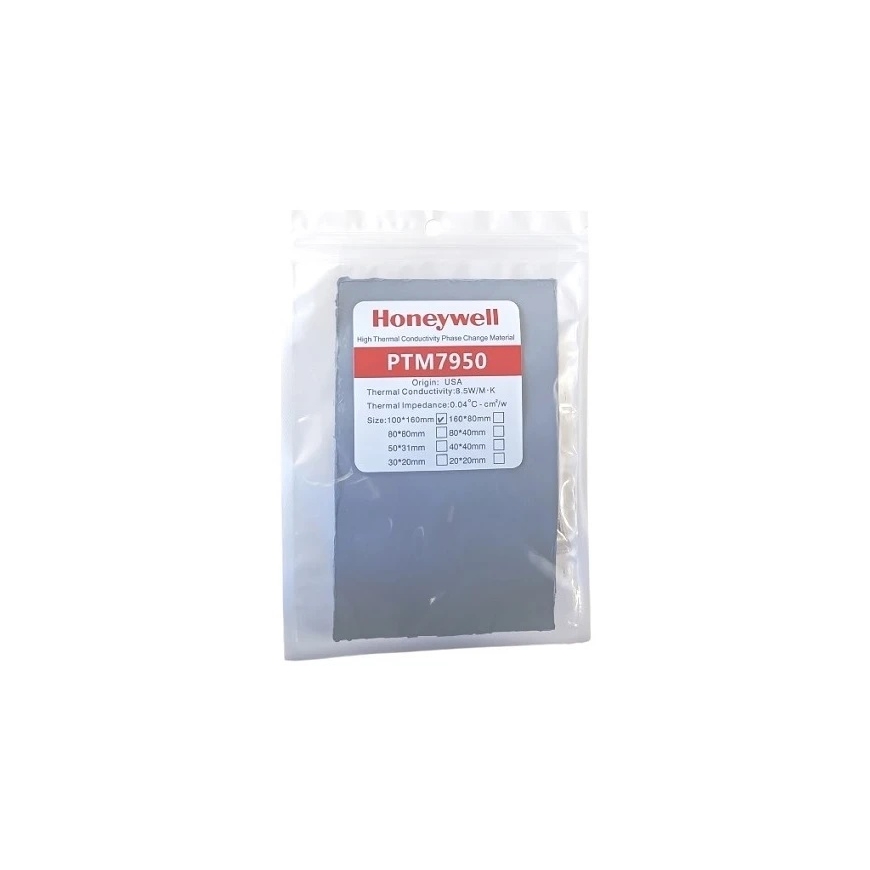

Thermal pad HONEYWELL PTM7950 100x160x0.2mm
5013133 NC032821
9990001032821
Shipping 5-8 b.d.
All about the product
Honeywell PTM7950 thermal pad, 100x160x0.2mm
Features:
The Honeywell PTM7950 thin phase change thermal pad is designed for use between the processor or graphics chip and the cooler. It ensures efficient heat transfer, low thermal contact resistance, and long-lasting cooling efficiency even under high thermal loads.
The thermal pad is made from a phase change material (PCM) developed by Honeywell, consisting of a polymer matrix with thermally conductive fillers. At room temperature, the material remains solid, making the pad easy to cut, place, and accurately position on the component. Upon reaching a working temperature of about 45°C, the material softens, fills microscopic surface irregularities, and forms a thin, cohesive thermal contact layer that reduces thermal contact resistance.
The sturdy polymer structure helps the material stay in the contact zone. It is not prone to bulging at the edges due to temperature fluctuations and repeated heating and cooling of the device. As a result, a stable thermal resistance and consistent cooling efficiency are maintained over time.
The sheet-like thermal pad offers convenient and clean use: it does not need to be applied or spread like thermal paste, reducing the risk of uneven layers and excess material.
The best heat transfer is achieved after several complete heating and cooling cycles, when the phase change material fully adapts to the contact surfaces.
The Honeywell PTM7950 thermal pad is highly recommended for gaming and high-performance laptop processors and graphics chips where the thermal load and temperature cycles are most intense, and the cooling system operates in a confined space. It can also be used for desktop computer processors, graphics chips of video cards, gaming consoles, and other electronics where efficient, precise, and long-lasting heat transfer to the cooler is required.
Specifications:
Thermal conductivity: 8.5 W/Mk.
Thermal resistance: 0.04 °C·cm²/W.
Operating temperature range: 0-125°C.
Dimensions: 100x160 mm.
Thickness: 0.2 mm.
All necessary tools for installation are included in the package.
