YATO CHAIN GUIDE 35cm (14") .325E
5013093 YT-849311
5906083040139
Shipping 9-15 b.d.
All about the product
Cutting Chain for Chainsaw 360 mm (14") | 8.25 mm (0.325") | 1.5 mm (0.058") | E Mounting (YT-849311)
A cutting chain for chainsaws, made of 65Mn (Mn65) steel, which increases wear and overheating resistance, thus extending its service life. The sprocket is reinforced with 4 rivets, and the roller bearing ensures more precise chain guidance and reduced friction during operation.
The chain features a lubrication system with an oil reservoir that the chain draws oil from and evenly distributes along the entire length of the bar. This reduces resistance, improves cooling, and helps extend the service life of the entire cutting system.

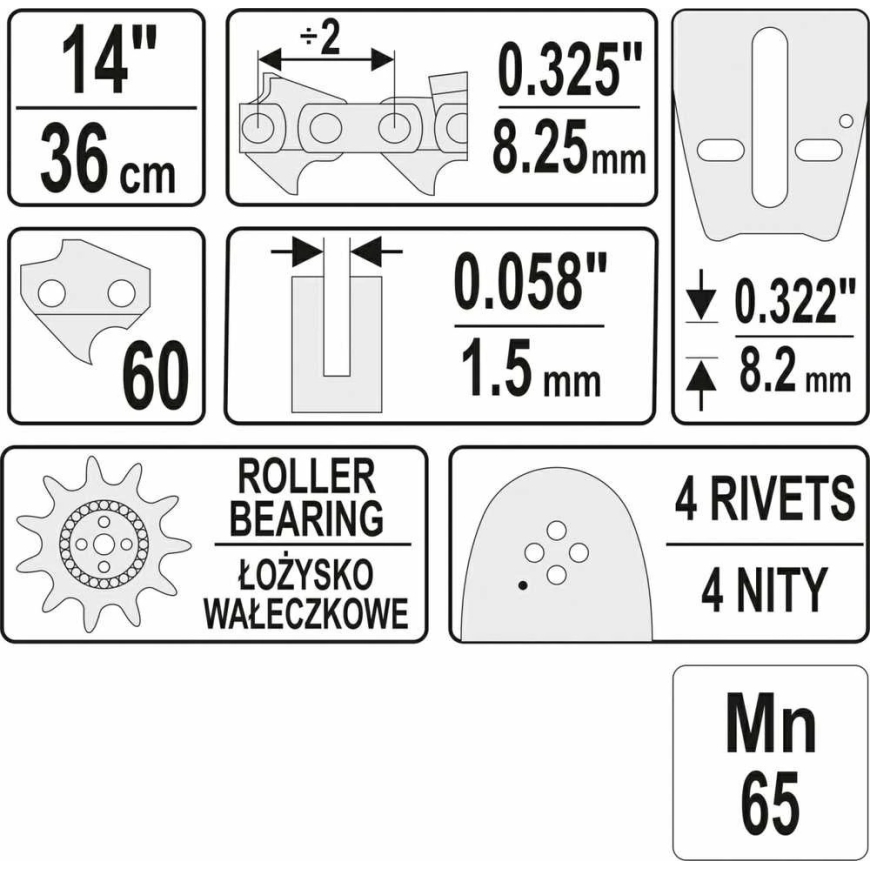

Technical Specifications
- Product Code (symbol): YT-849311
- Brand: Yato
- Series: GRD
- Bar Length: 360 mm (14")
- Chain Pitch: 8.25 mm (0.325")
- Groove Width (Drive Link Thickness): 1.5 mm (0.058")
- Number of Links (Links): 60
- Bar Thickness: 8.2 mm (0.322")
- Material: 65Mn Steel
- Mounting Type: E
- Automatic Chain Lubrication: yes
- Number of Rivets: 4
- Number of Sprocket Teeth: 10
- Bearing Type: Roller
Compatibility

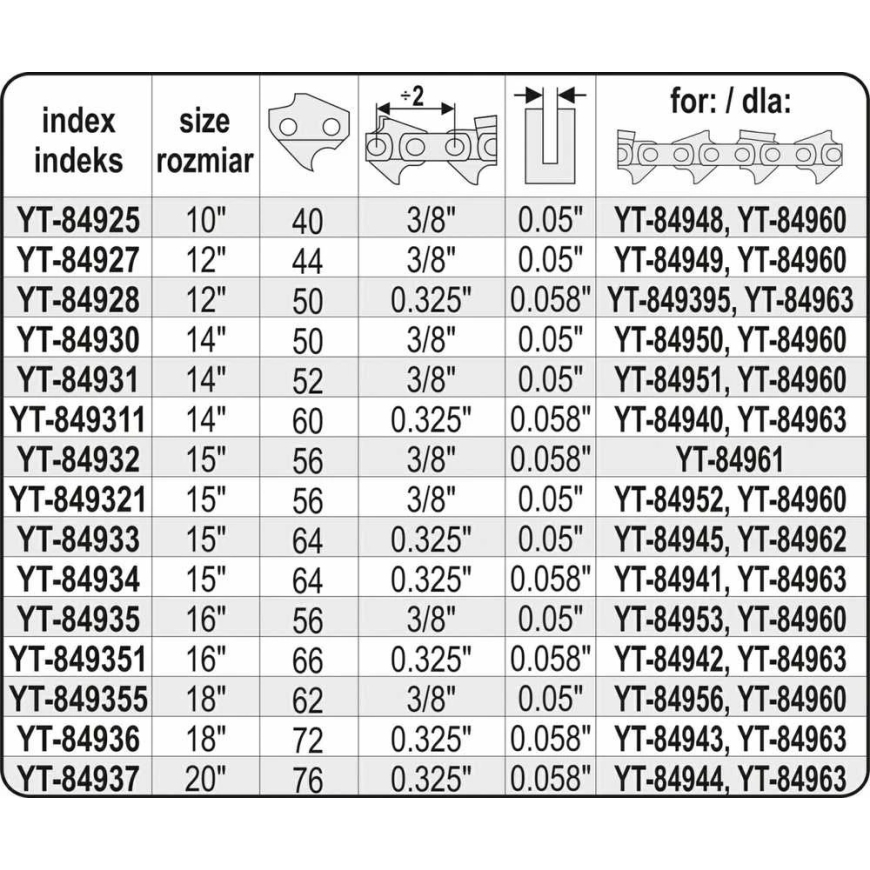

- Suitable for Chains: YT-849405, YT-84963
Safety Notes
- Always use personal protective equipment when operating.
